Description
Maximize Performance with GDP Portals

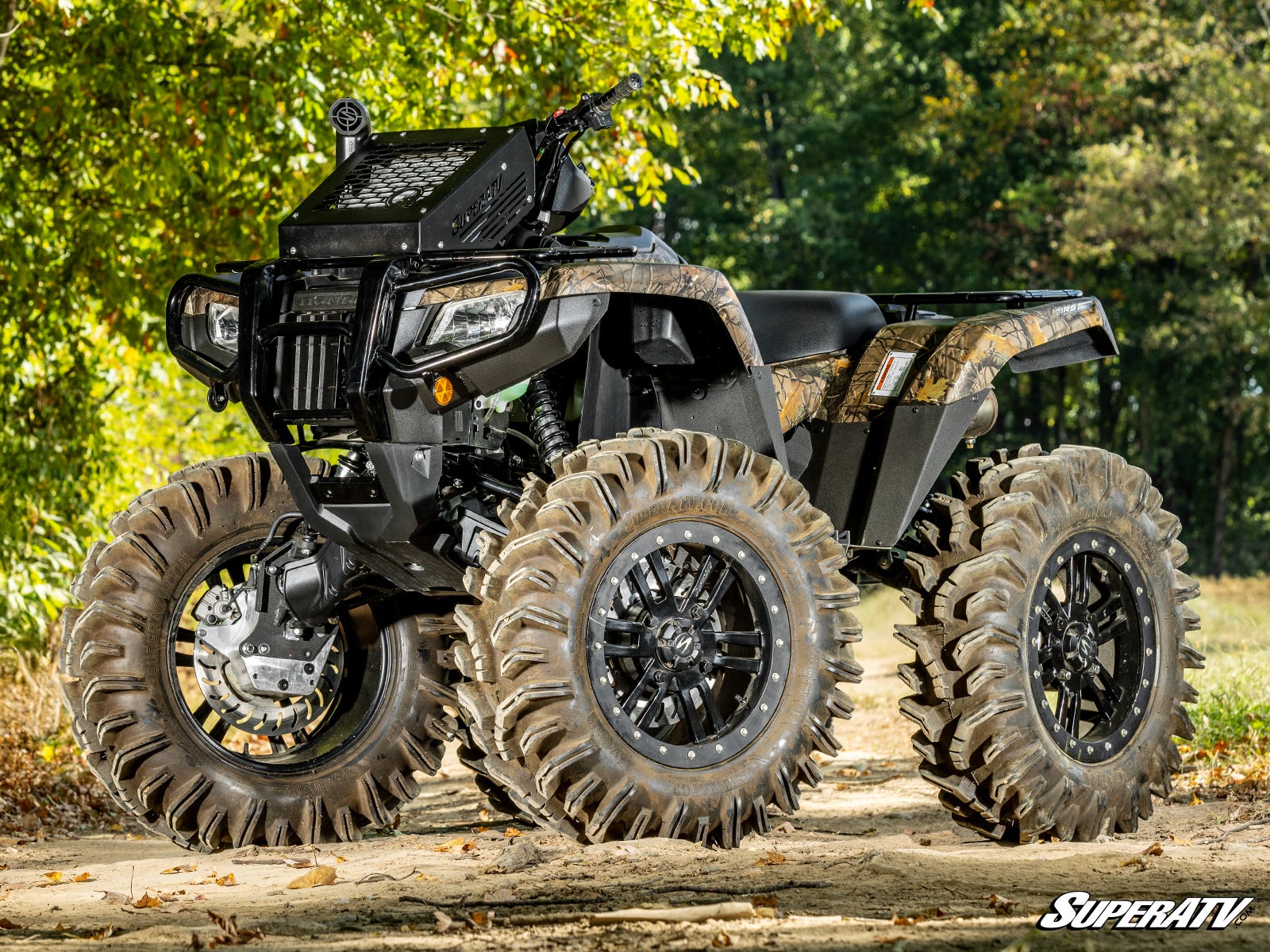

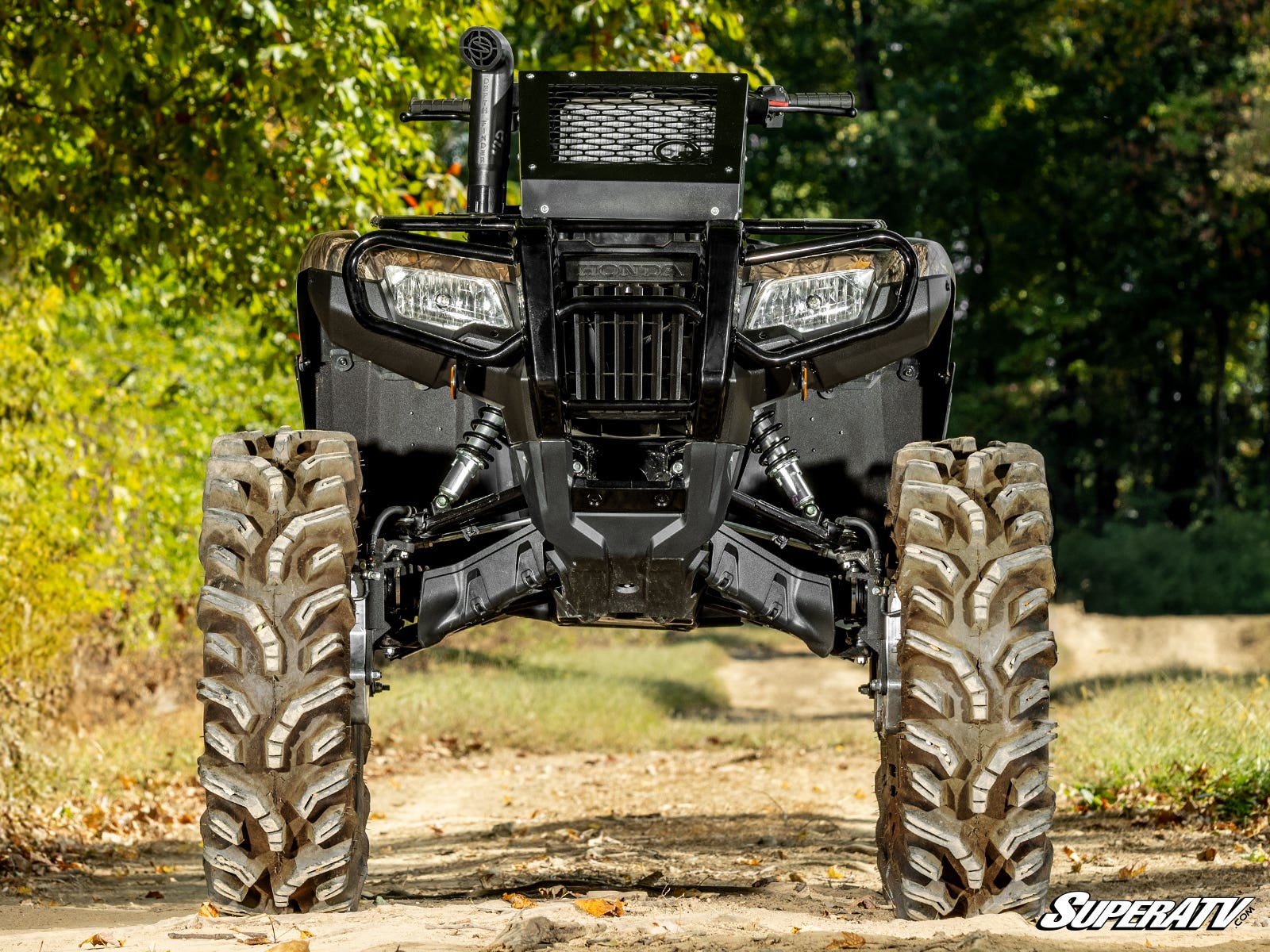

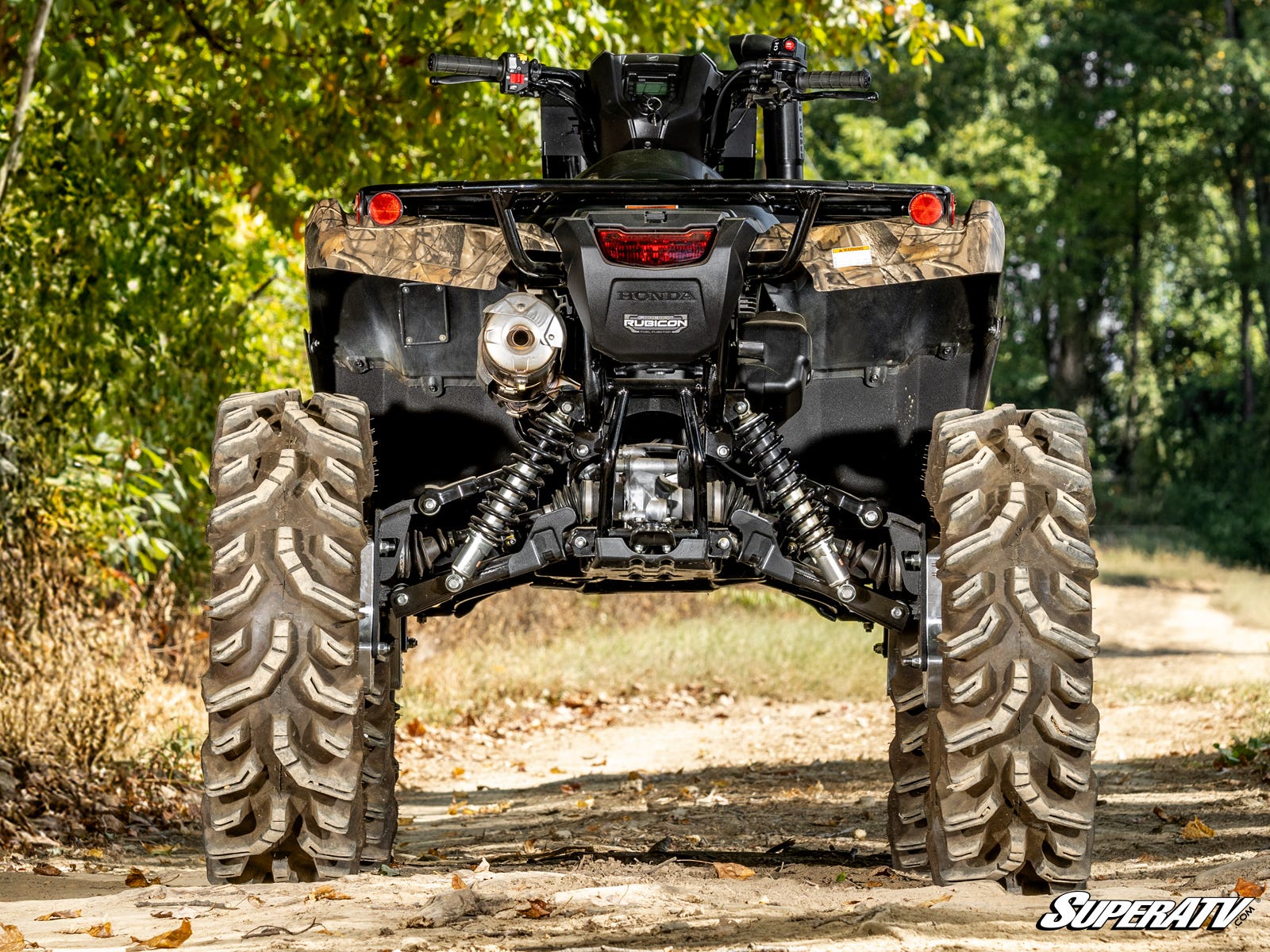

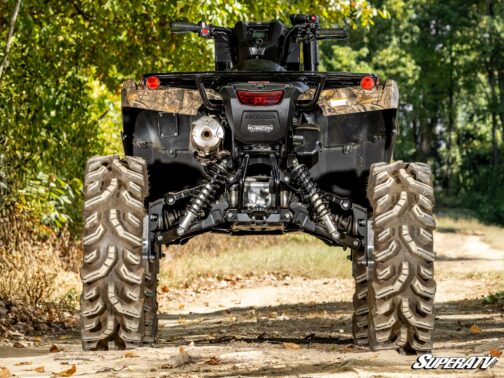

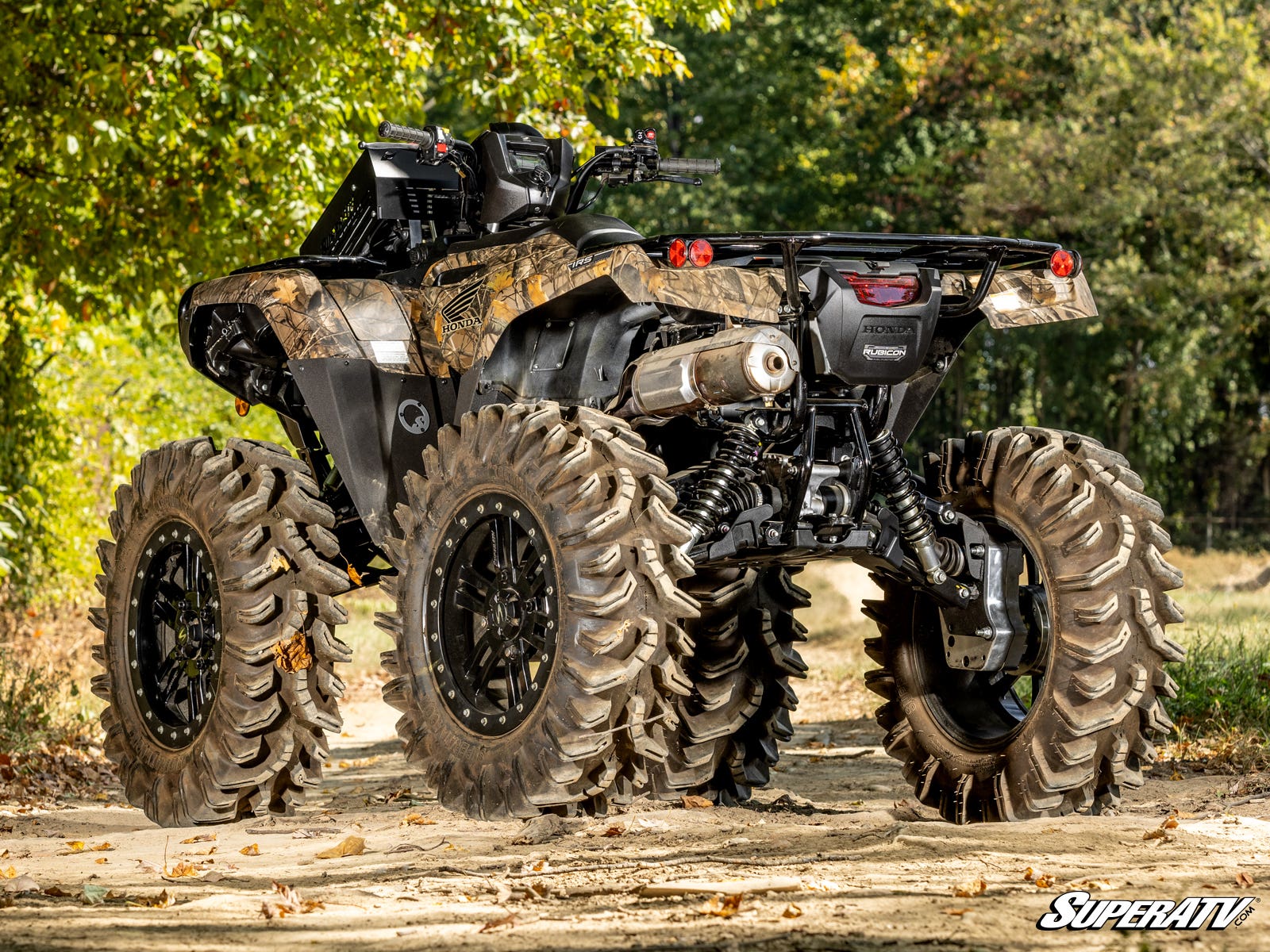

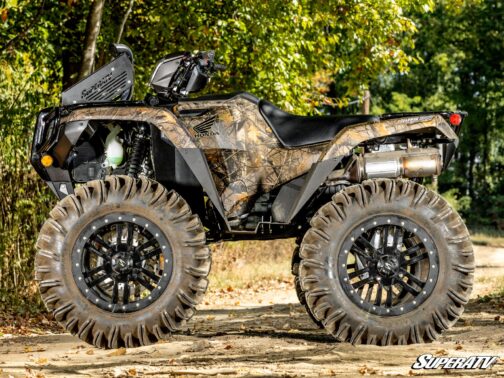

Take your Honda
Foreman’s performance over the top with SuperATV’s 6” Portal Gear Lift. You
get a choice of a 30% or 45% gear reduction to boost torque. Plus, you’ll get
more ground clearance and the ability to run larger tires. For the ultimate
lift, you need our portals.
Get the Torque You Need
Get ultimate torque and acceleration with a choice between a 30% or 45%
gear reduction. For maximum torque and larger tires, you’ll want to go with a
45% reduction. You’ll have the power to take off from a dead stop, haul large
loads, and trudge through muddy and rocky terrain. Choose 30% to maintain top
speed while still getting that boost in torque.
Keep Your
Drivetrain Protected
With that extra weight being thrown around,
you can cause damage to your drivetrain. GDP Portals put the gear reduction in
the hub, so your drivetrain gets protected from extra wear. Plus, our Honda
Foreman portal gear lift keeps your factory suspension so you have cooler-
running axles.
The Toughest Portals on the Market
When you’re dominating the trails with your buddies, the last thing you
need is a portal getting damaged and stopping your ride. That’s why we
designed our cast and 6061 billet aluminum housings. They’re perfect for rough
terrain and hard rides. They’re backed by our advanced steel backing plates
that give them unmatched strength.
- Our housings are reinforced for
gear retention and optimized for oil flow - Advanced steel alloy
backing plates are stronger than chromoly - Enhance with Portal
Blood—gear oil formulated for GDP Portals - There are no gimmicks and
no vents because vents do more harm than good—we know because we tested
them
Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil
resistance and low deterioration rates - A sealed input gear and
double-lipped output seal - 100% sealing coverage throughout so you can
forget about oil leaks - Double-angular contact output bearings to
prevent premature wear - Roller idler and drive bearings to maintain
perfect gear meshing
Top-Rated Customer
Service
Still not sure exactly what you need? We’ve got a
dedicated team to help you make the right choice. Give us a call so we can get
the perfect set of portals in your hands today.

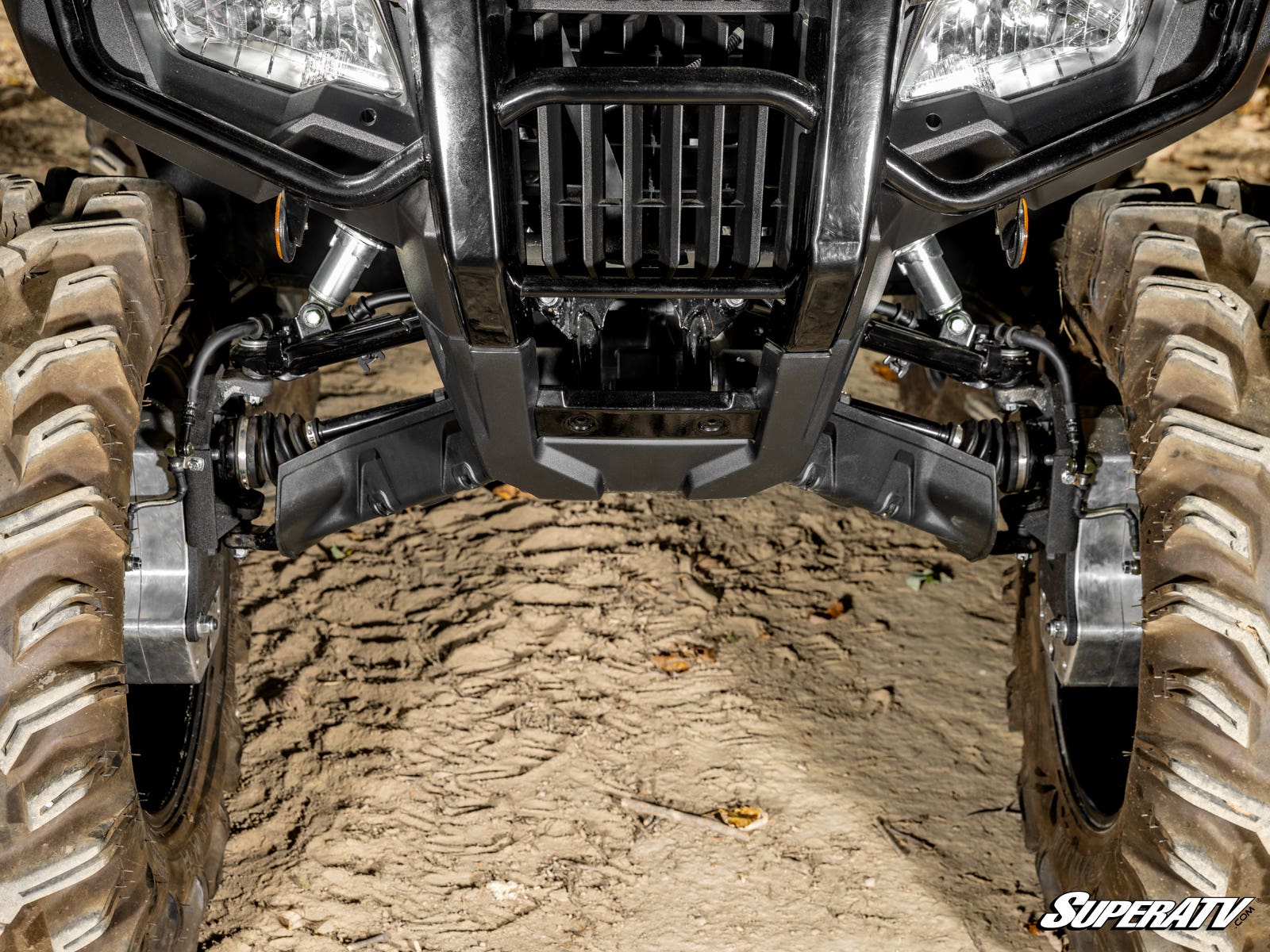

6” Portal
Gear Lift Includes:

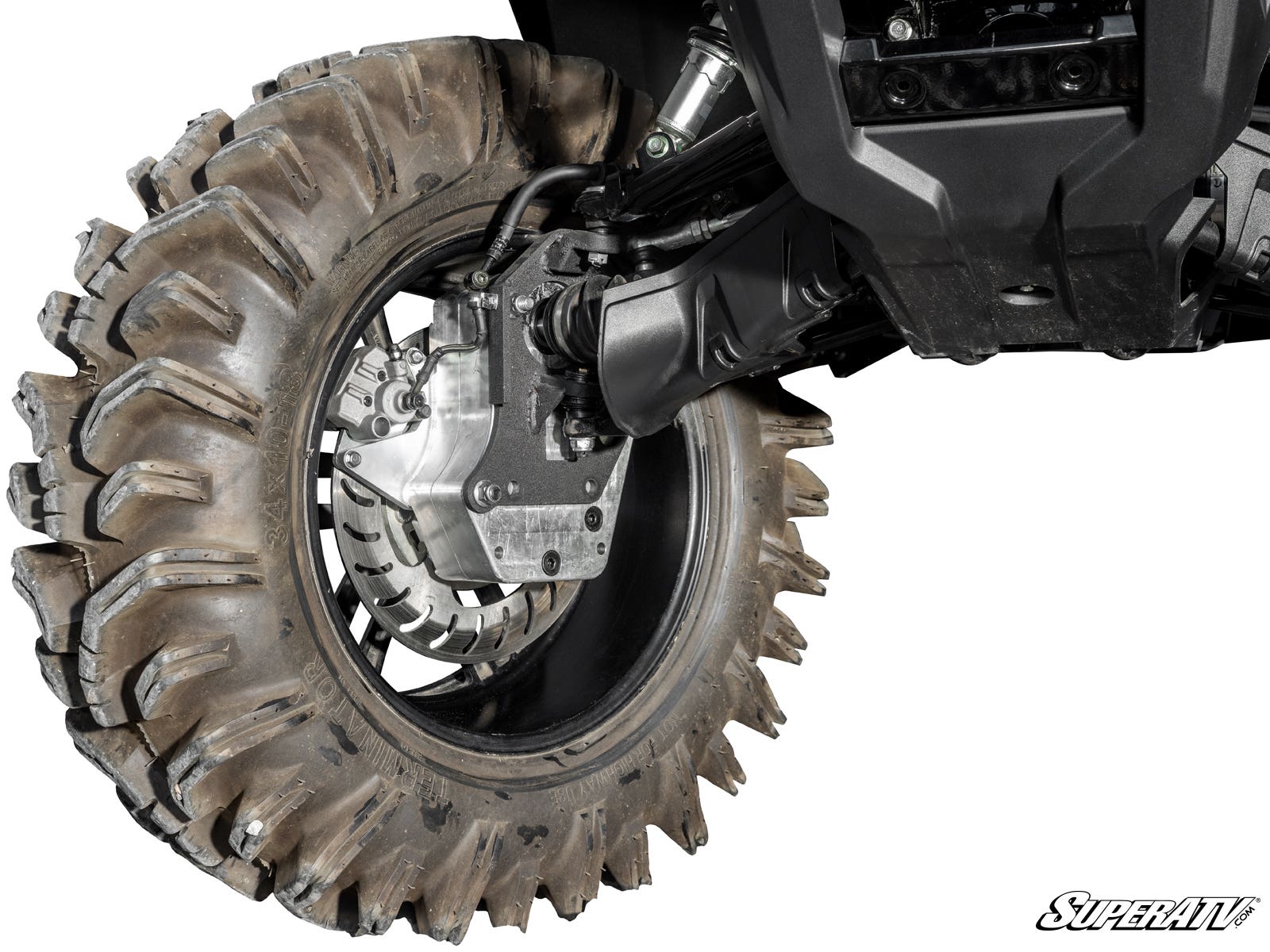

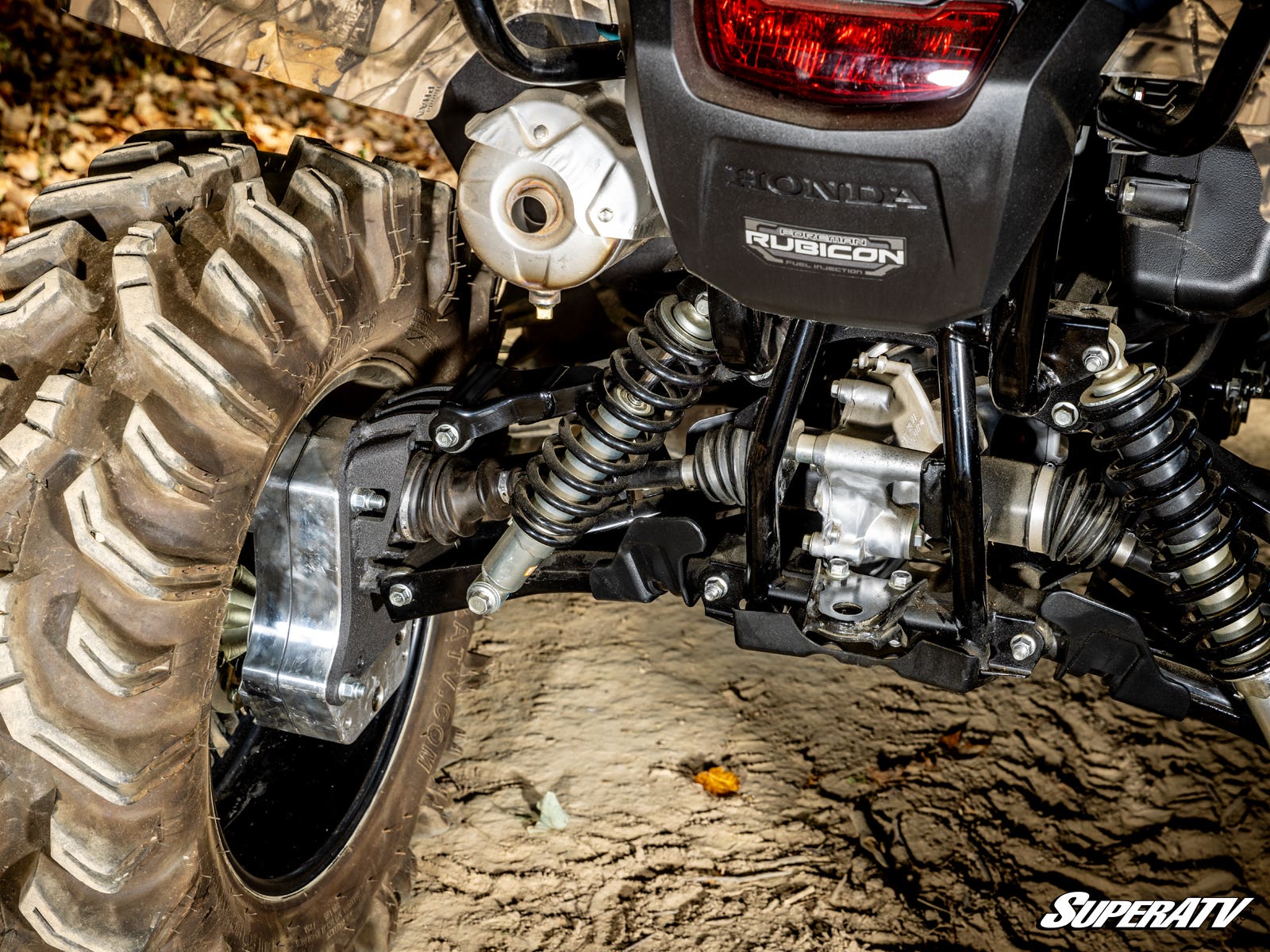

- (4) Assembled portal hub boxes complete
with 9310 gears, seals, output shaft, gaskets, and thrust bearings - (4) Universal hubs and precision-ground stainless steel slotted rotors
with lugs - (4) Specialized steel alloy backing plates
- (2)
Steel caliper mounting plates - (2) Caliper mounting plate shims
- Extended brake lines
- All required hardware, including recessed
castle nut socket
| Honda Foreman Max Tire Size Recommendations | |
|---|---|
| Tire Size | Required Suspension Setup with 6″ Portals |
| 28″ | Stock |
| If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. |
|
| Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
|
Patent # 11,299,042
Patent # 11,318,787
FEATURE
- Available with billet or cast aluminum housing
- Cool, quiet,
precision-ground gears made from 9310 alloy billet steel - 1.5 in.
diameter 4340 hardened steel drive shaft - Housings use gaskets or
O-rings that don’t let anything through - Universal hub fits all major
bolt patterns - Gear reduction reduces stress on your drivetrain
- Lighter than the competition
Fitment
- Honda Foreman 500 : 2015-2019
- Honda Foreman 520 : 2020+
NOTE: Only compatible on machines with IRS
(Independent Rear Suspension)
Wheel Requirements
- 18” or larger wheel required
- 20” and larger wheels cannot
exceed 5” backspacing
