Description
Maximize Power and Performance with GDP Portals
Take

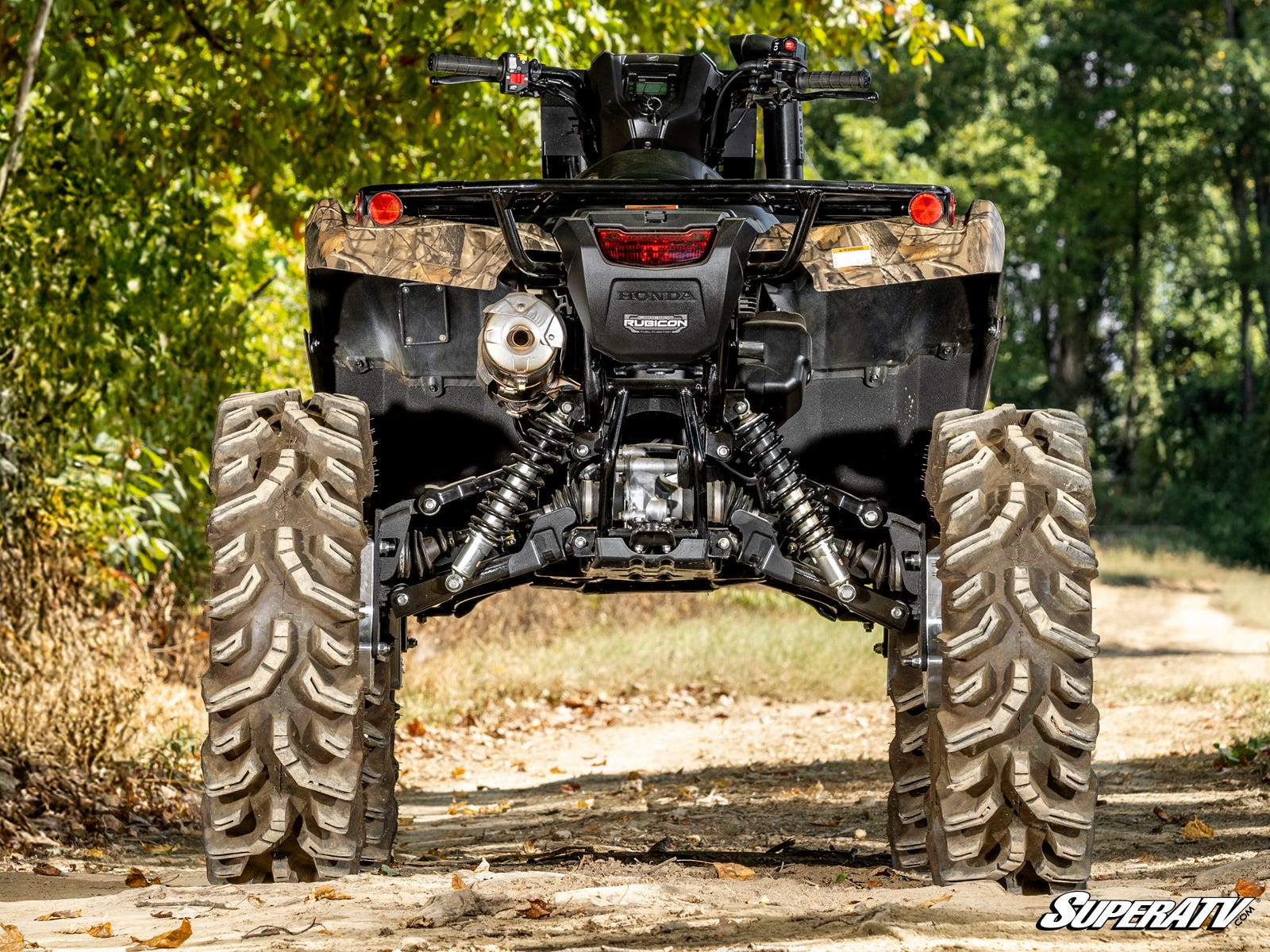

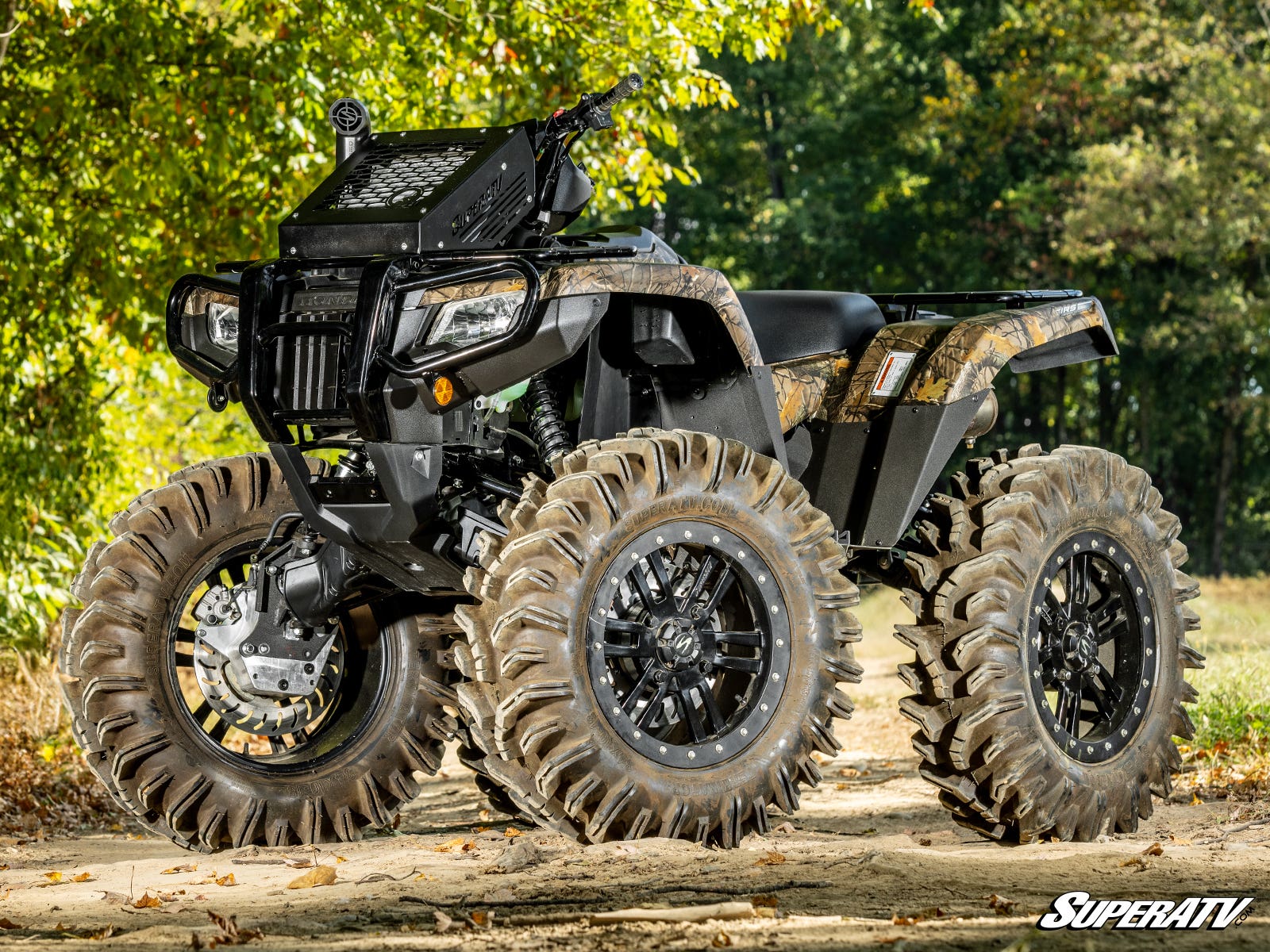

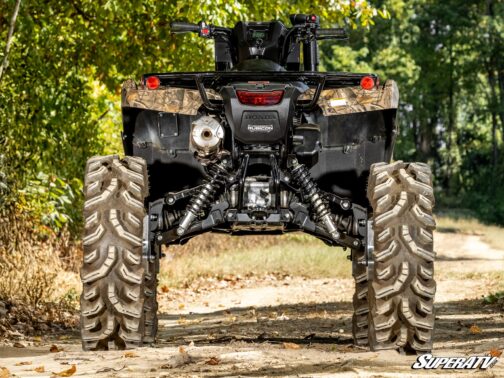

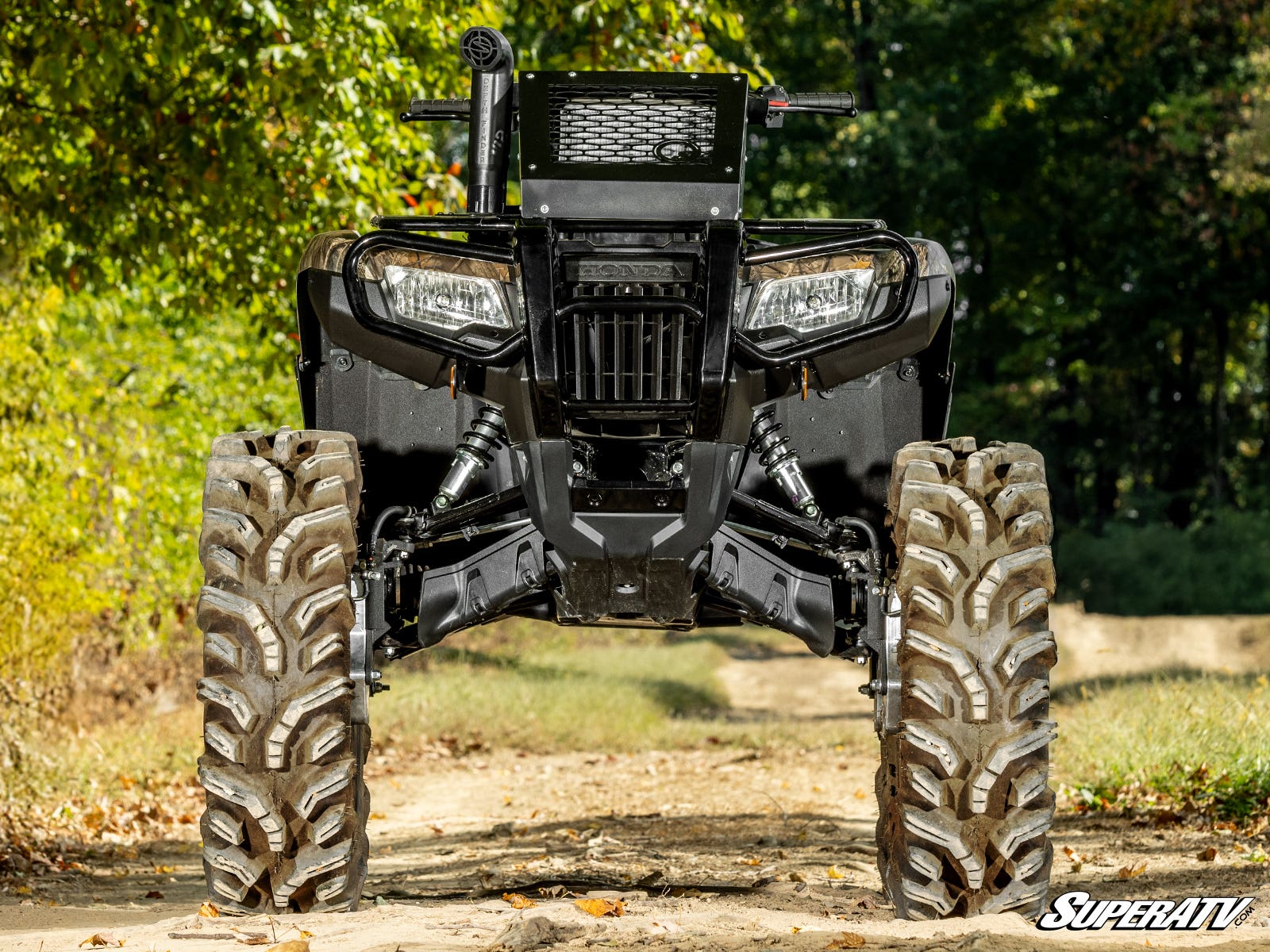

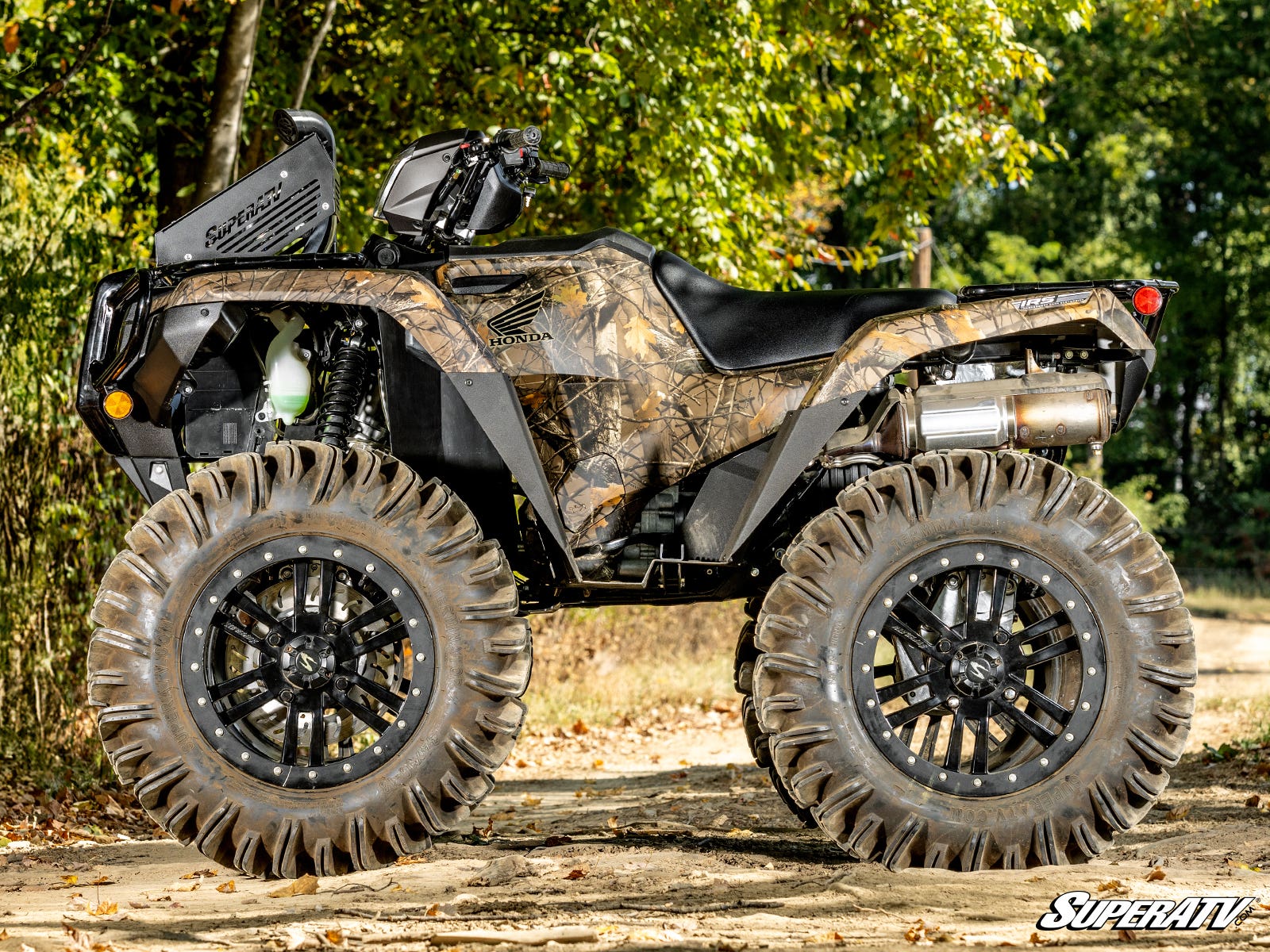

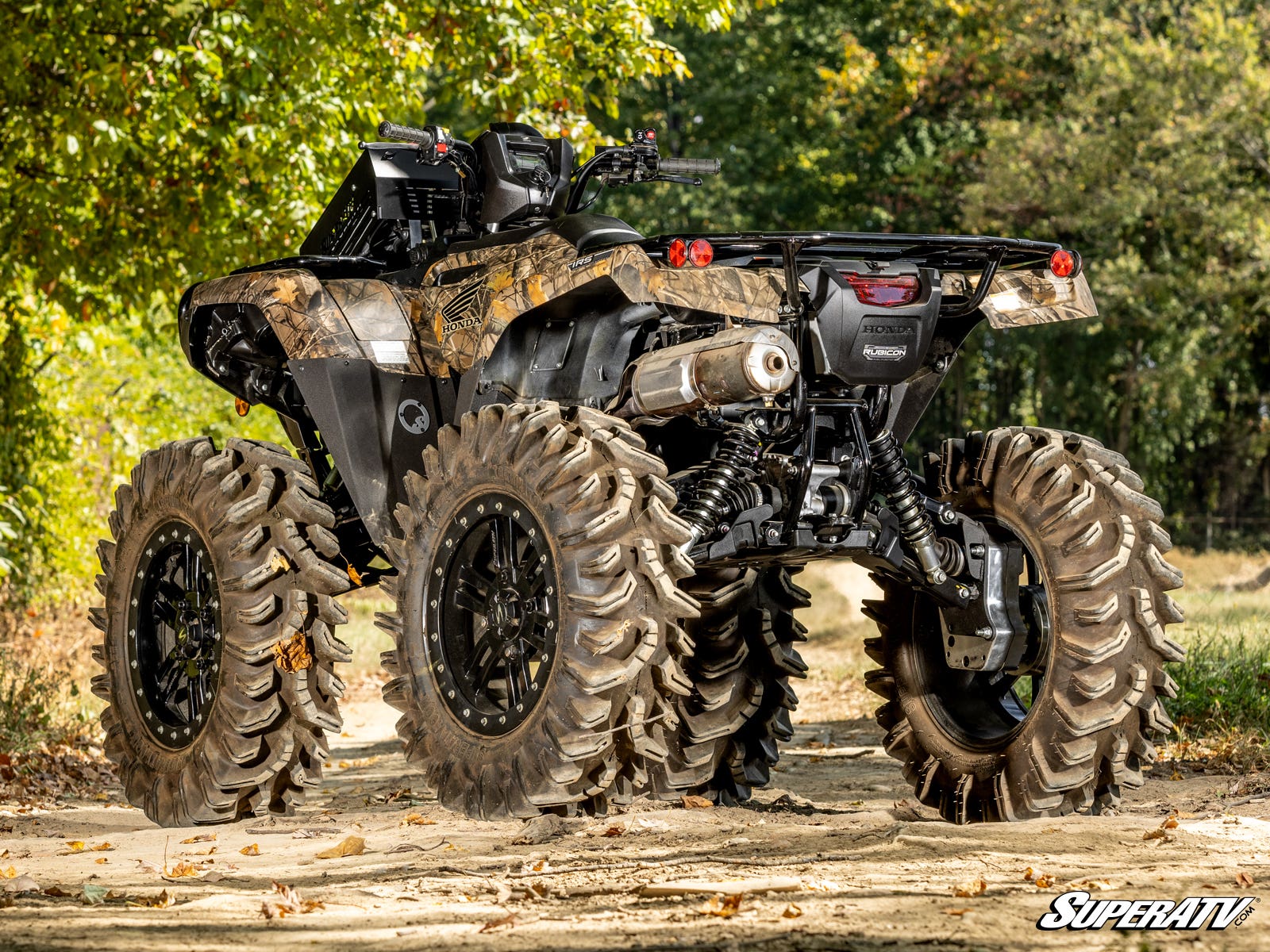

your Honda Rancher to the next level with SuperATV’s 6” Portal Gear Lift. You
get a lift and a gear reduction in one package. So choose between a 30% or 45%
gear reduction to boost your torque for the way you ride. Plus, you’ll get
extra ground clearance and room to run massive tires. If you want the ultimate
upgrade, our GDP Portals are the way to go.
Get the Torque
You Need
With a 30% or 45% gear reduction, you’ll get more
torque and better acceleration. A 45% reduction gives you maximum power to
handle deep mud, big hills, and and massive tires. If you want a balance
between speed and torque, the 30% reduction is the perfect choice.

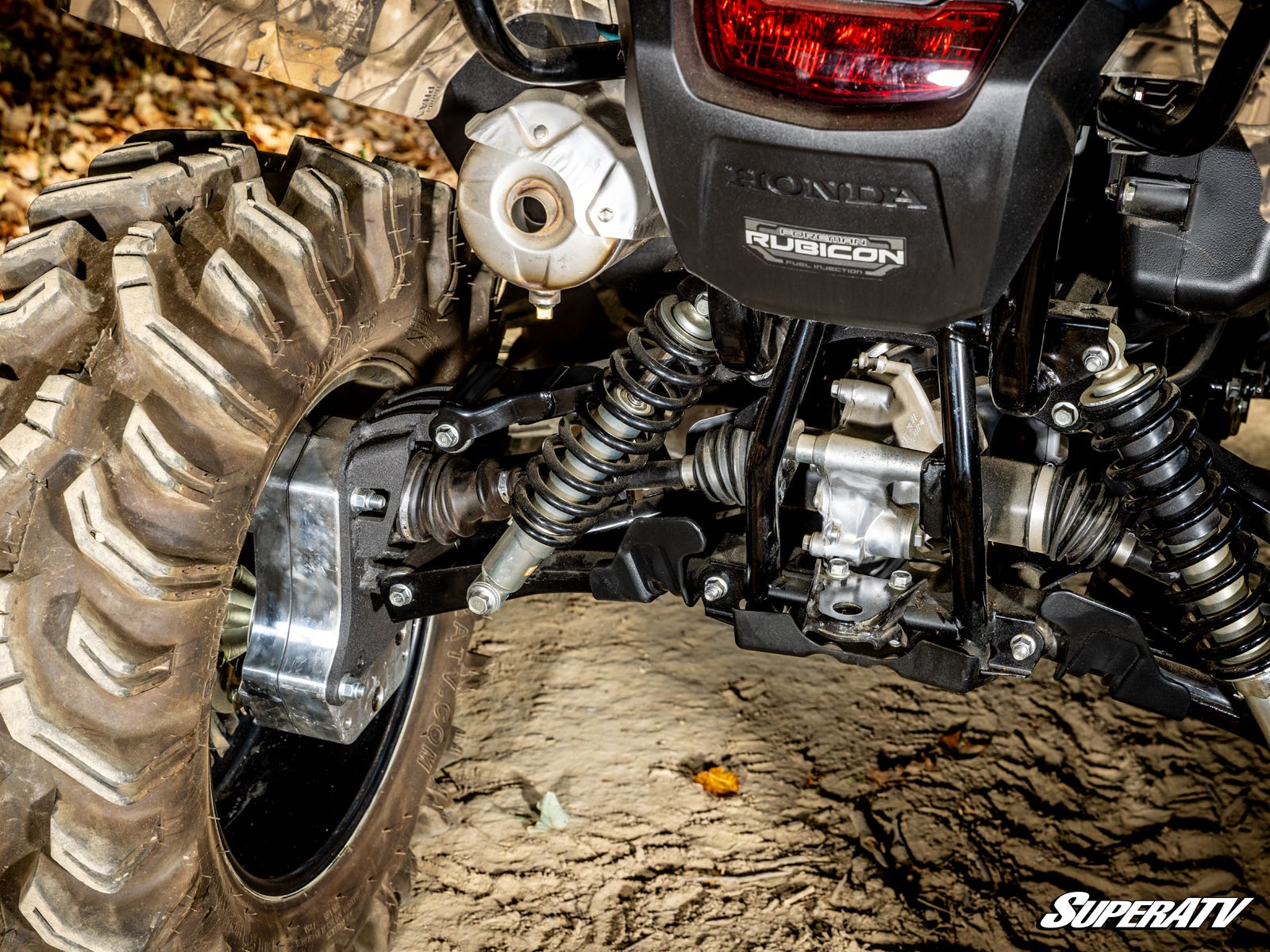

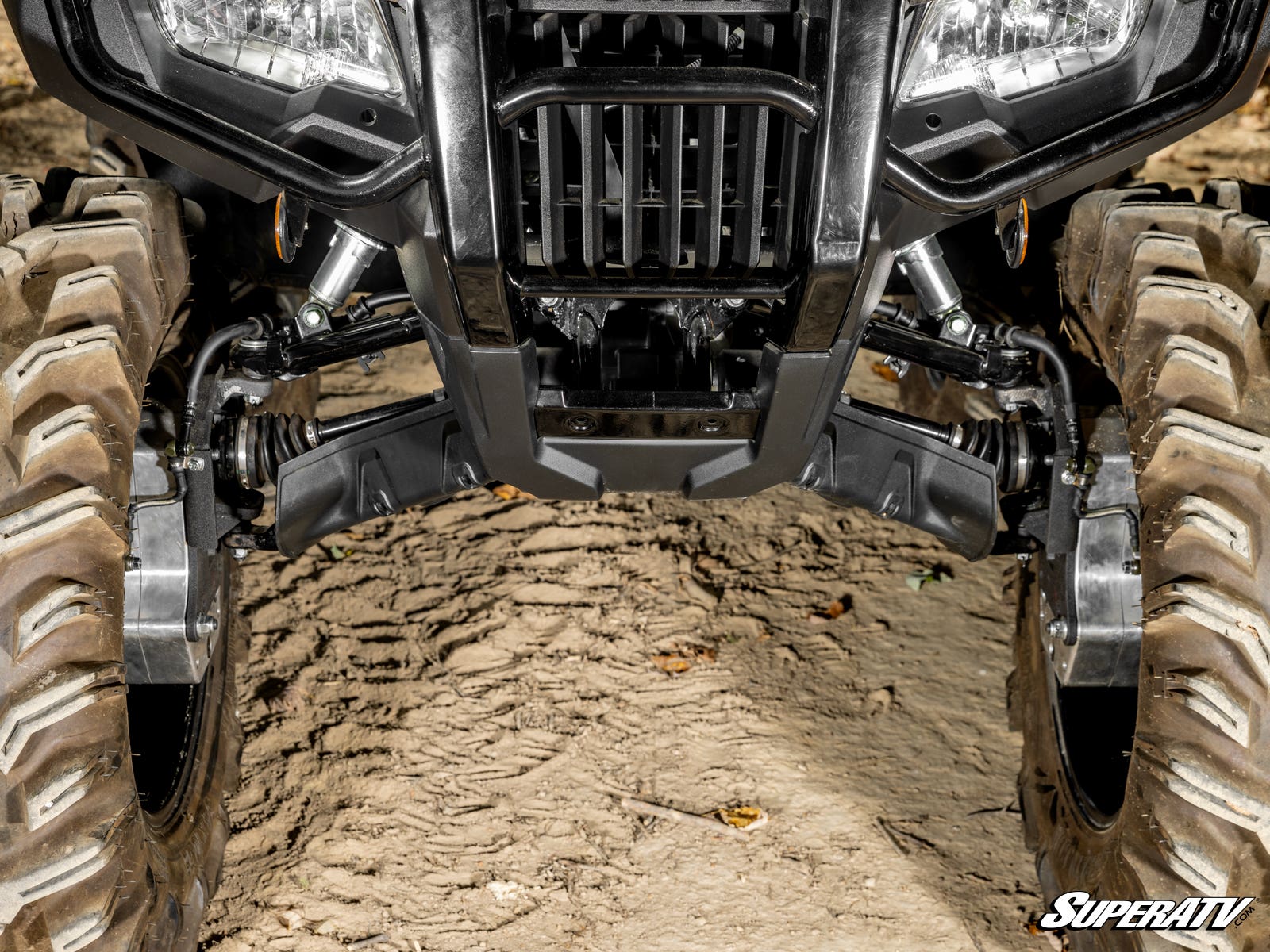

Protect Your Drivetrain
All that extra power can wear
down your drivetrain—but GDP Portals protect it. The gear reduction is built
into the hub, which means your axles, differential, and transmission wear
less. Our Honda Rancher also portals keep your stock suspension geometry, so
your axles run cooler and last longer.
Built Tough for Hard
Rides
When you’re ripping through trails, you need portals that
won’t quit. Our cast and 6061 billet aluminum housings are designed for the
roughest terrain. Plus, they’re reinforced with advanced steel backing plates
for unmatched strength.
- Our housings are reinforced for gear
retention and optimized for oil flow - Advanced steel alloy backing
plates are stronger than chromoly - Enhance with Portal Blood—gear oil
formulated for GDP Portals - There are no gimmicks and no vents because
vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low
deterioration rates - A sealed input gear and double-lipped output
seal - 100% sealing coverage throughout so you can forget about oil
leaks - Double-angular contact output bearings to prevent premature
wear - Roller idler and drive bearings to maintain perfect gear
meshing
Top-Rated Customer Service
Not
sure which setup is right for you? Our expert team is ready to help. Call us
today, and we’ll make sure you get the perfect set of portals for your
Rancher.

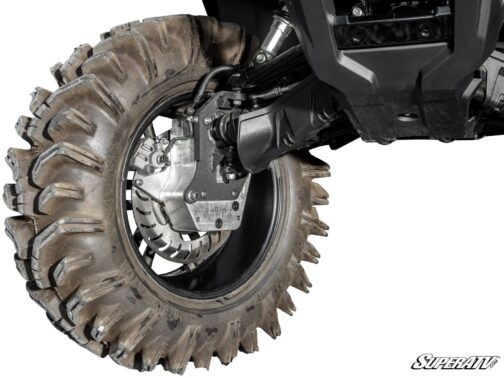

6” Portal Gear Lift Includes:
- (4)
Assembled portal hub boxes complete with 9310 gears, seals, output shaft,
gaskets, and thrust bearings - (4) Universal hubs and precision-ground
stainless steel slotted rotors with lugs - (4) Specialized steel alloy
backing plates - (2) Steel caliper mounting plates
- (2) Caliper
mounting plate shims - Extended brake lines
- All required
hardware, including recessed castle nut socket
Honda Rancher Max Tire Size Recommendations |
|
---|---|
Tire Size | Required Suspension Setup with 6″ Portals |
28″ | Stock |
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. |
|
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
Patent #
11,299,042
Patent # 11,318,787
FEATURE
- Available with billet or cast aluminum housing
- Cool, quiet,
precision-ground gears made from 9310 alloy billet steel - 1.5 in.
diameter 4340 hardened steel drive shaft - Housings use gaskets or
O-rings that don’t let anything through - Universal hub fits all major
bolt patterns - Gear reduction reduces stress on your drivetrain
- Lighter than the competition
Fitment
- Honda Rancher 420 : 2014+
NOTE: Only
compatible on machines with IRS (Independent Rear Suspension)
Wheel Requirements
- 18” or larger wheel required
- 20” and larger wheels cannot exceed 5” backspacing
