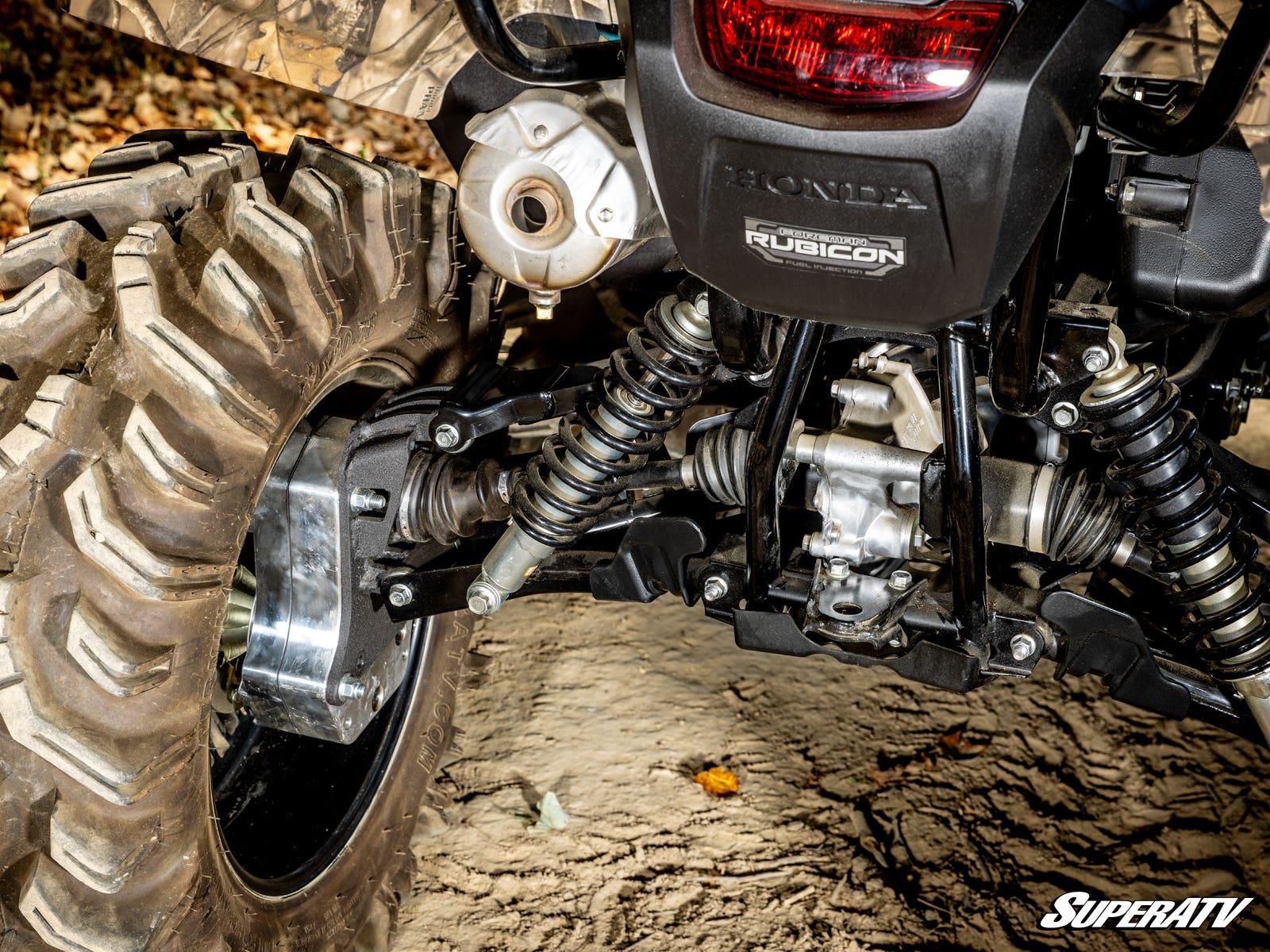

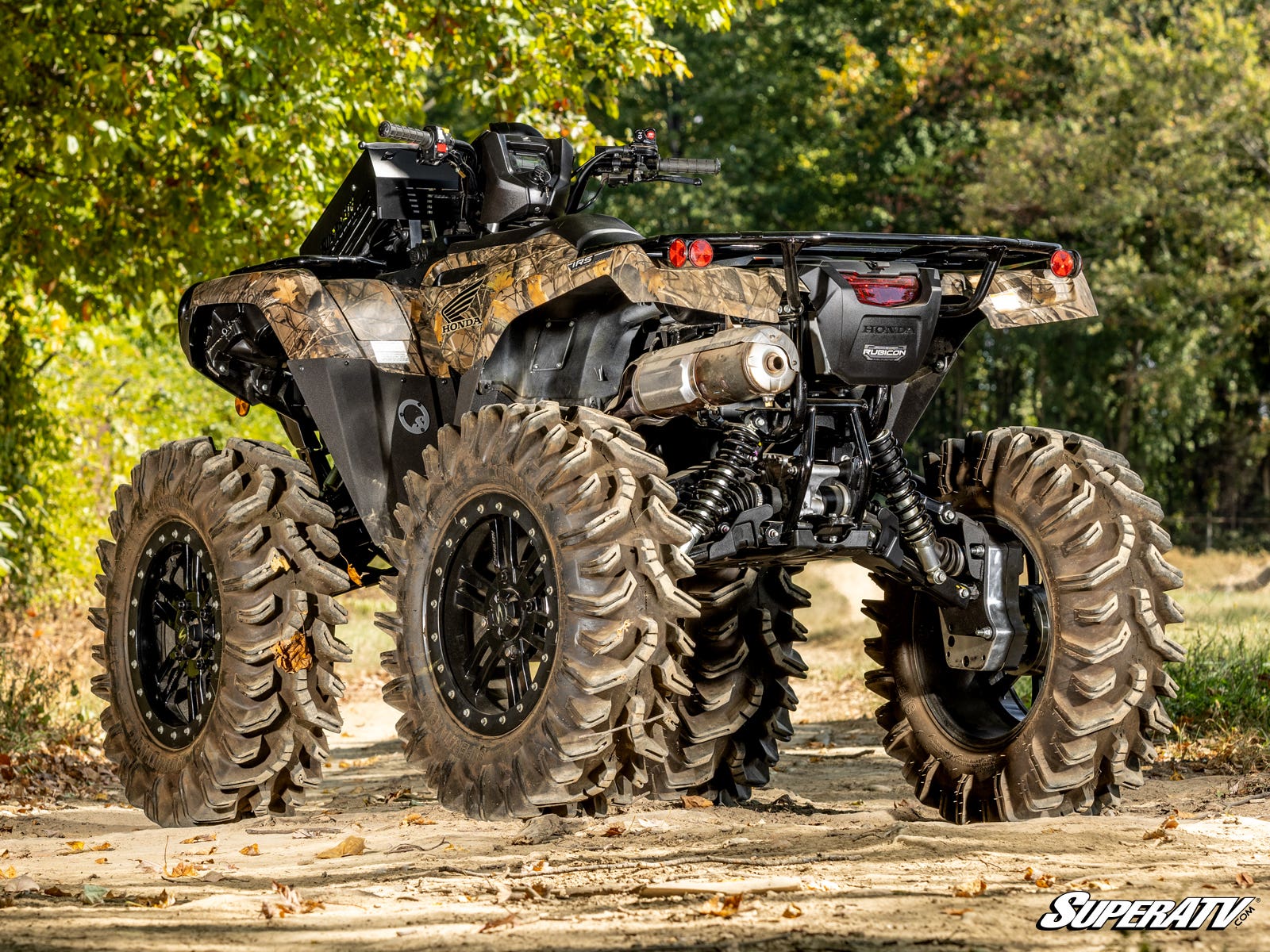

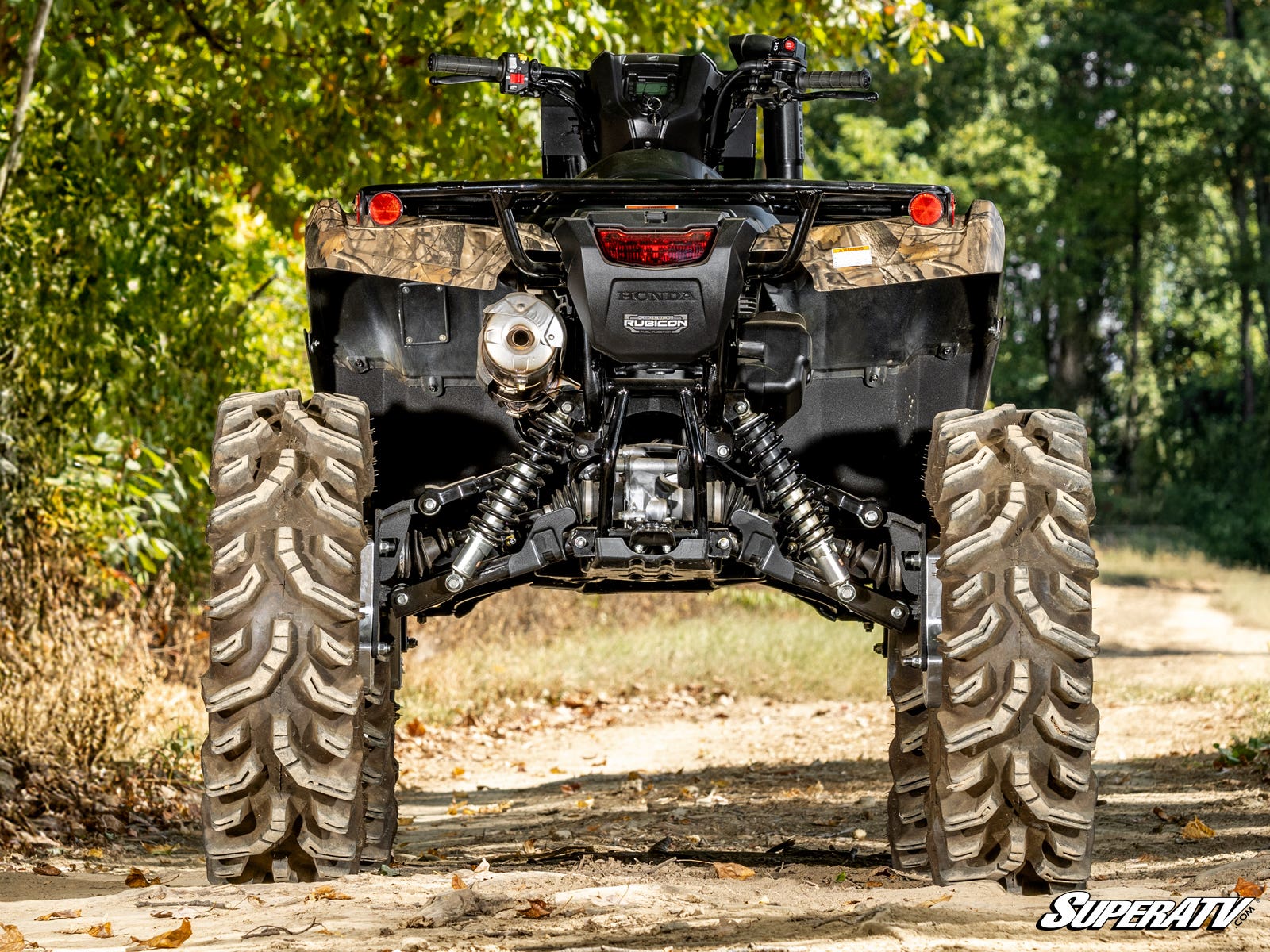

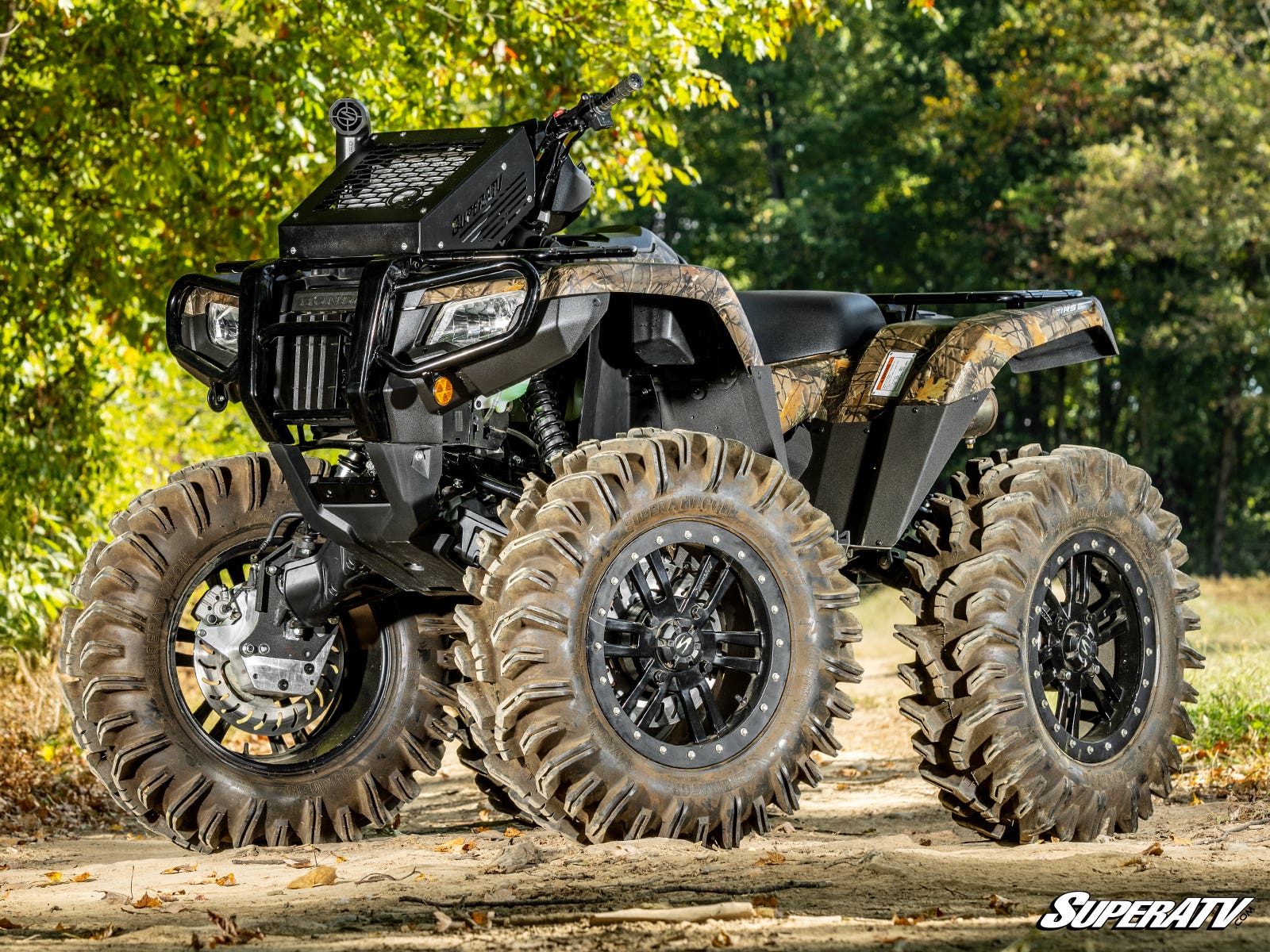

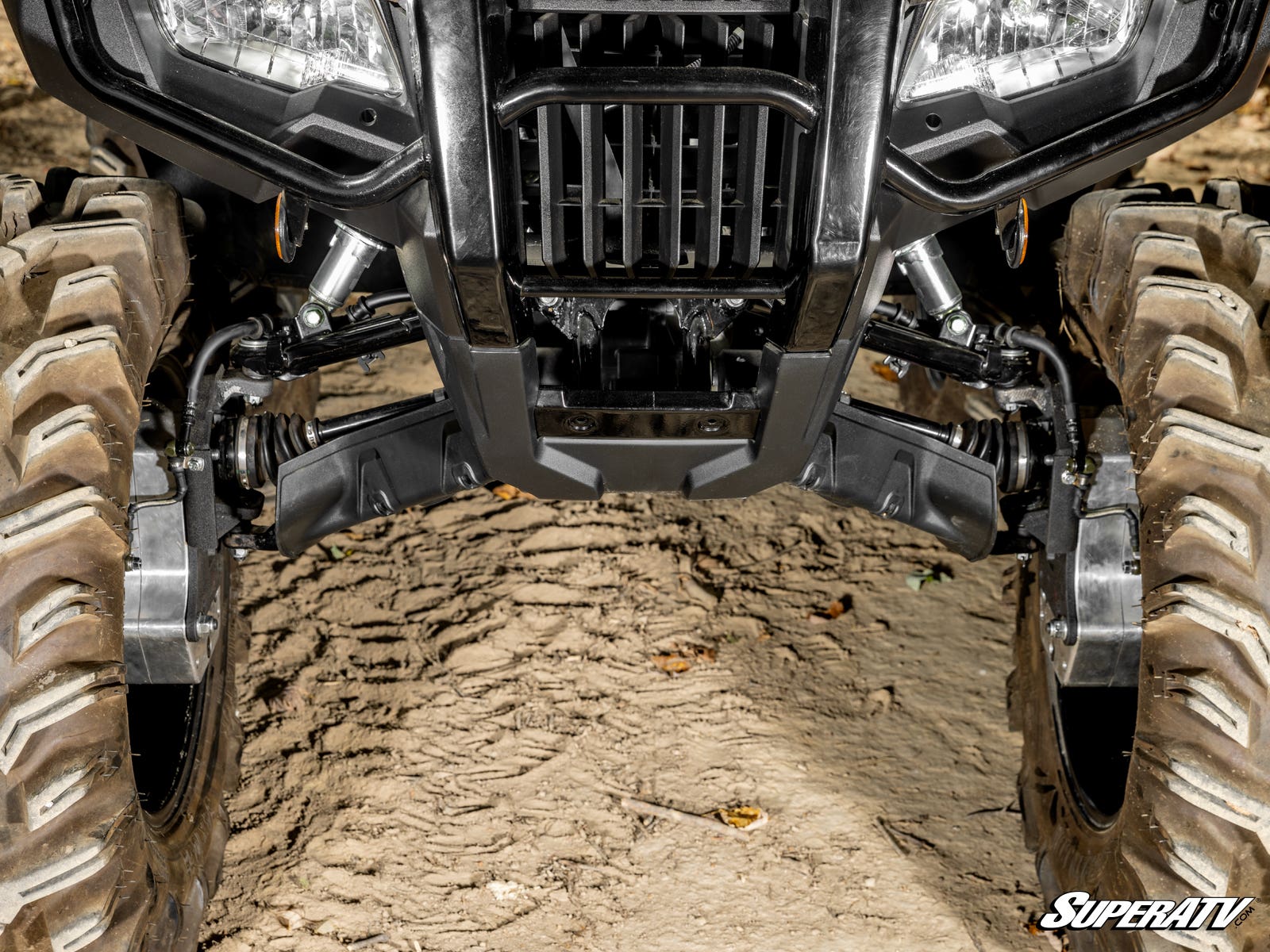

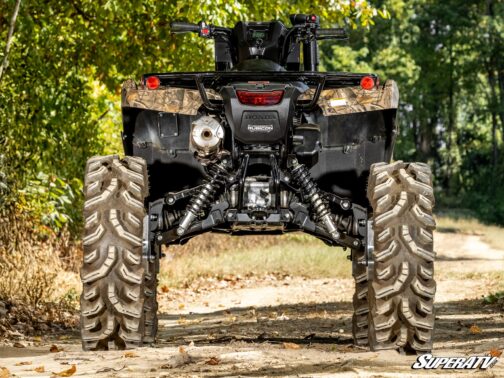

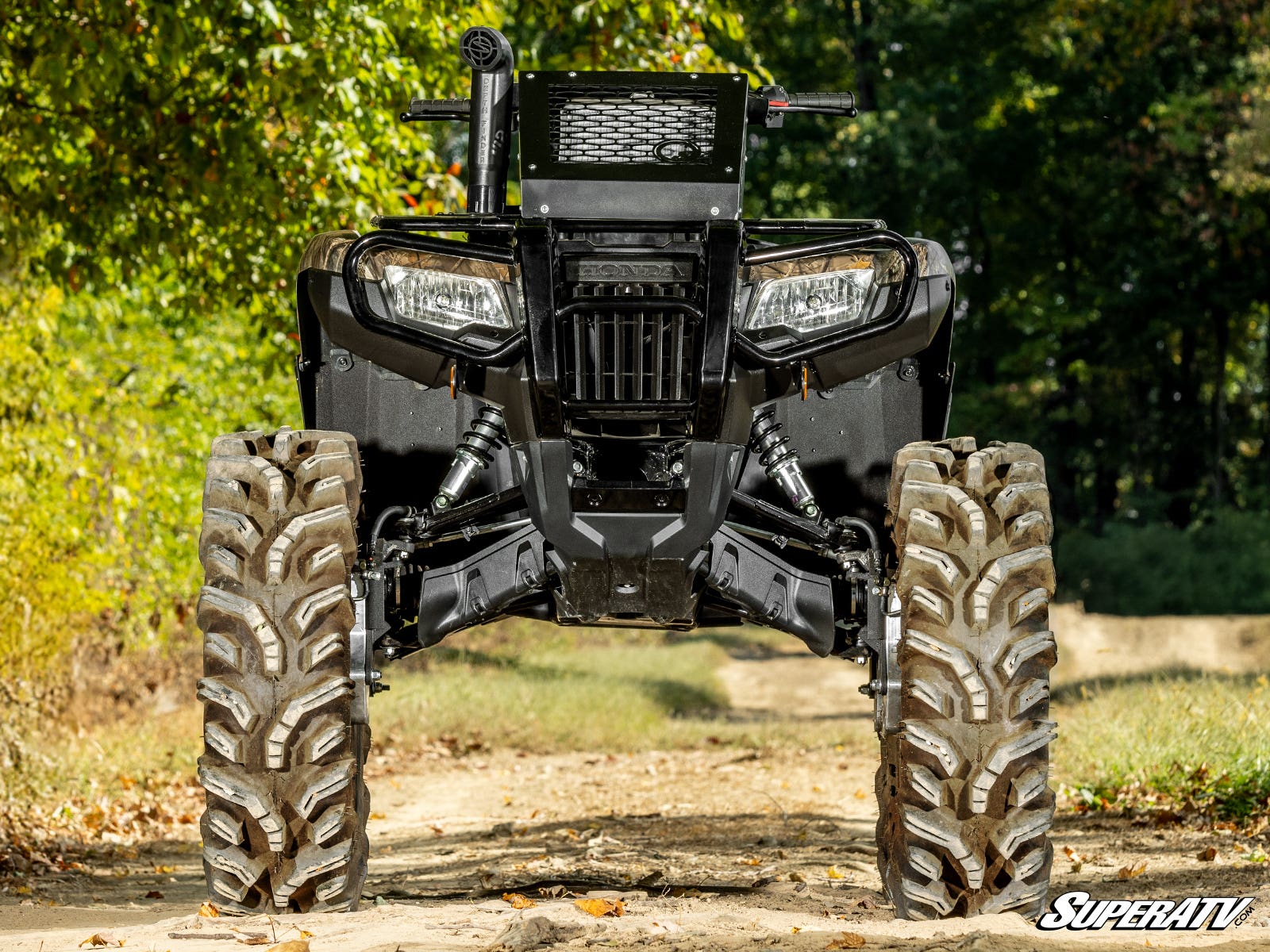

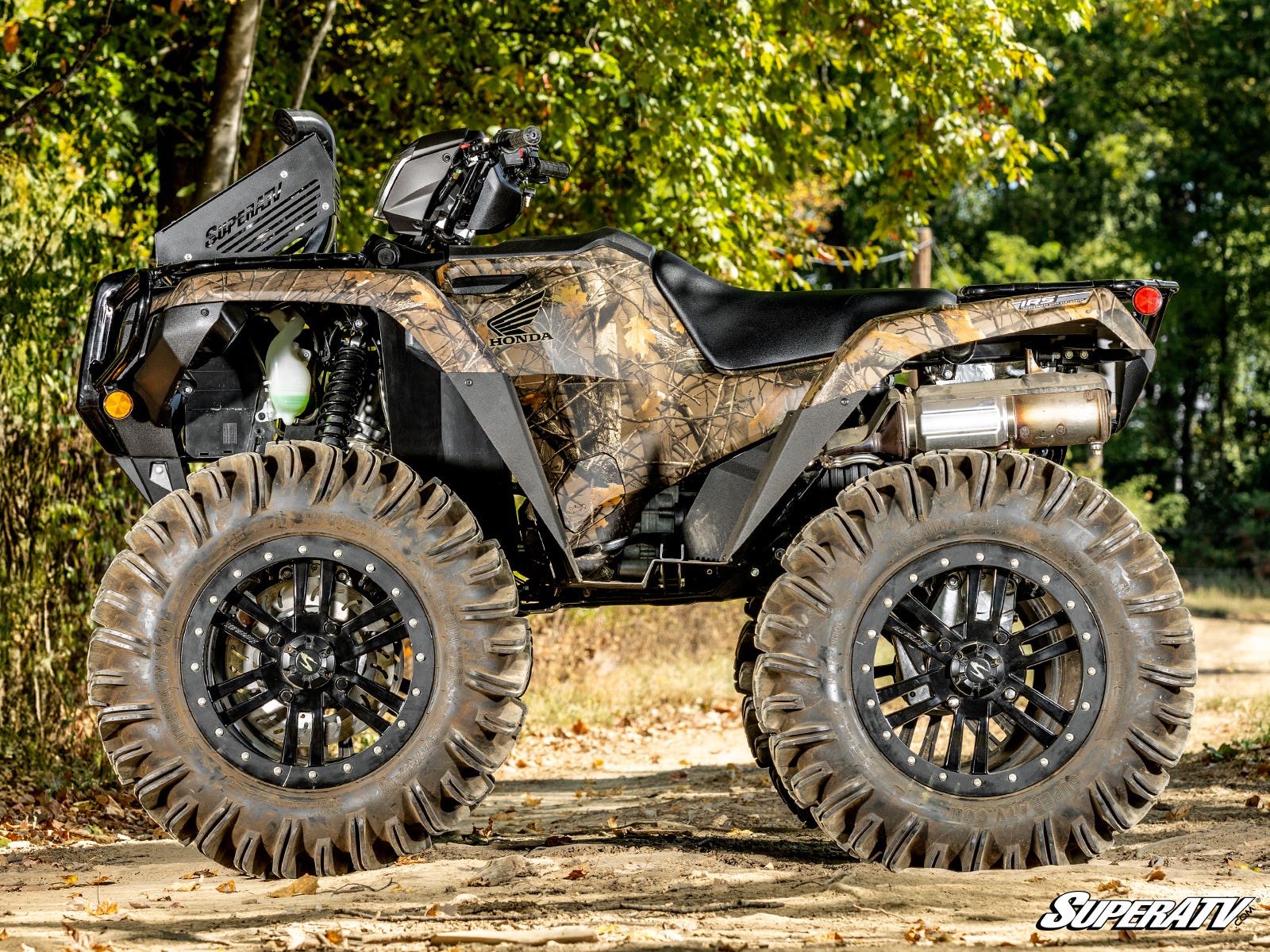

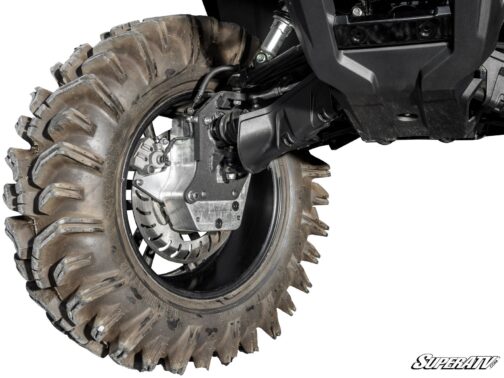

Honda Rubicon 6" Portal Gear Lift

$2,999.95$4,049.95

-+
SKU: Item-PGH6-3-15-301-B#AB Category: Tag:
Add to wishlist

Description

Maximize Performance with GDP Portals
Take your Honda
Rubicon beyond its limits with SuperATV’s 6” Portal Gear Lift. It gives you a
lift and gear reduction in one package. And with your choice of a 30% or 45%
gear reduction, you get the torque you need to conquer mud, rocks, and hills.
You’ll also get more ground clearance and the ability to run bigger tires. If
you want to dominate every ride, GDP Portals give you the power and
performance to do it all.

Unmatched Torque and
Power

A 30% or 45% gear reduction gives your Rubicon serious
power. If you want to tackle deep mud, haul heavy loads, or run massive tires,
go with the 45% reduction. If you want to maintain your top speed while
boosting torque, the 30% reduction is your best bet.

Protect
Your Drivetrain for the Long Haul

Extra power means extra
strain—but these Honda Rubicon GDP Portals protect your drivetrain. The gear
reduction is built into the hub, keeping your axles, differential, and
transmission protected from excess wear. And since our Honda Rubicon portals
maintain your stock suspension, your axles stay cooler and last longer.

Stronger Than the Competition
You ride hard—your
Honda Rubicon portals should need to be tough enough to handle it. Our cast
and 6061 billet aluminum housings are built for extreme conditions, reinforced
with advanced steel backing plates that’s stronger than chromoly.

  • Our
    housings are reinforced for gear retention and optimized for oil flow
  • Advanced steel alloy backing plates are stronger than chromoly
  • Enhance with Portal Blood—gear oil formulated for GDP Portals
  • There are no gimmicks and no vents because vents do more harm than good—we
    know because we tested them

Advanced Gaskets, Seals,
and Bearings

Our portals use:

  • Advanced gaskets and
    O-rings with excellent oil resistance and low deterioration rates
  • A
    sealed input gear and double-lipped output seal
  • 100% sealing coverage
    throughout so you can forget about oil leaks
  • Double-angular contact
    output bearings to prevent premature wear
  • Roller idler and drive
    bearings to maintain perfect gear meshing

Get Expert
Help

Need help choosing the right setup? Our customer support
team is here to make sure you get the perfect set of portals. Call us today,
and let’s get your Rubicon ready for anything.

6” Portal
Gear Lift Includes:

  • (4) Assembled portal hub boxes complete
    with 9310 gears, seals, output shaft, gaskets, and thrust bearings
  • (4) Universal hubs and precision-ground stainless steel slotted rotors
    with lugs
  • (4) Specialized steel alloy backing plates
  • (2)
    Steel caliper mounting plates
  • (2) Caliper mounting plate shims
  • Extended brake lines
  • All required hardware, including recessed
    castle nut socket

Honda Rubicon Max Tire Size Recommendations
Tire Size Required Suspension Setup with
6″ Portals
28″ Stock
30″ SuperATV
Footwells
If you need
help figuring out which gear reduction is right for you, check out our portal gear reduction
calculator.
Max tire
sizes are measured at full compression and full turn. The given tires sizes
are the largest we fit without rubbing. With minor trimming or a small amount
of rub, larger tire sizes can be used.

Patent #
11,299,042

Patent # 11,318,787

FEATURE

  • Available with billet or cast aluminum housing
  • Cool, quiet,
    precision-ground gears made from 9310 alloy billet steel
  • 1.5 in.
    diameter 4340 hardened steel drive shaft
  • Housings use gaskets or
    O-rings that don’t let anything through
  • Universal hub fits all major
    bolt patterns
  • Gear reduction reduces stress on your drivetrain
  • Lighter than the competition

Fitment

  • Honda Rubicon 500 : 2015-2019
  • Honda Rubicon 520 : 2020+

NOTE: Only compatible on machines with IRS
(Independent Rear Suspension)

Wheel Requirements

  • 18” or larger wheel required
  • 20” and larger wheels cannot
    exceed 5” backspacing
