MTX UNI-1 Amplifier and Roll Cage Speaker Kit

$499.95$599.95

SKU: Item-UNI-1-ADDON Category: Tags: ,
Add to wishlist

Description

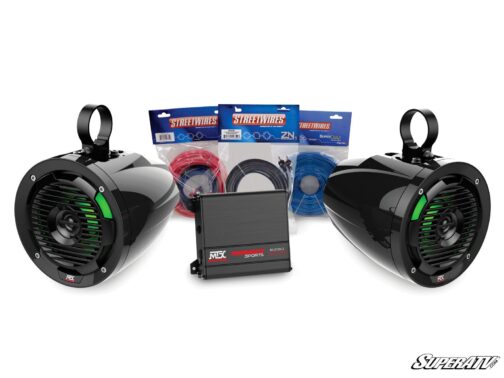

All-in-One Kit for Awesome Sound
Looking for an all-in-
one kit to pump your jams out on the trail? We’ve got just what you need:
MTX’s UNI-1-ADDON or UNI-1-AUX Amplifier and Roll Cage Speaker Kit. It fits
all tubes between 1.75” and 2”, making it nearly universal. This kit comes
with an MTX MUD100-2 amplifier, two 6.5” speaker pods, and all the wiring you
need. This kit is compatible with any source—you can choose between RCA, 3.5
mm headphone jack, or Bluetooth connections. Whether you’re cruising in a
Jeep, UTV, or another machine, these speakers will have everybody rocking and
rolling with you.

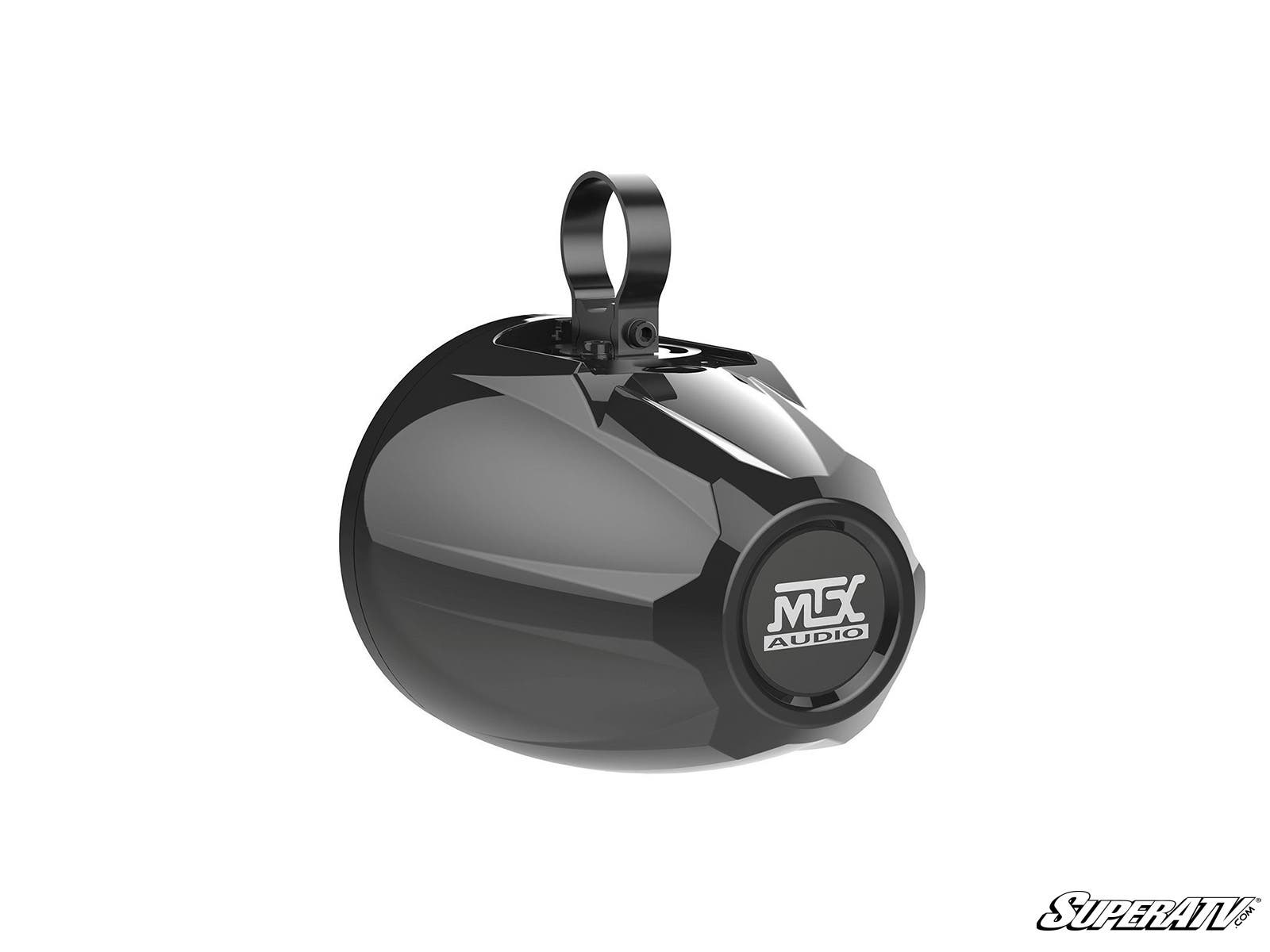

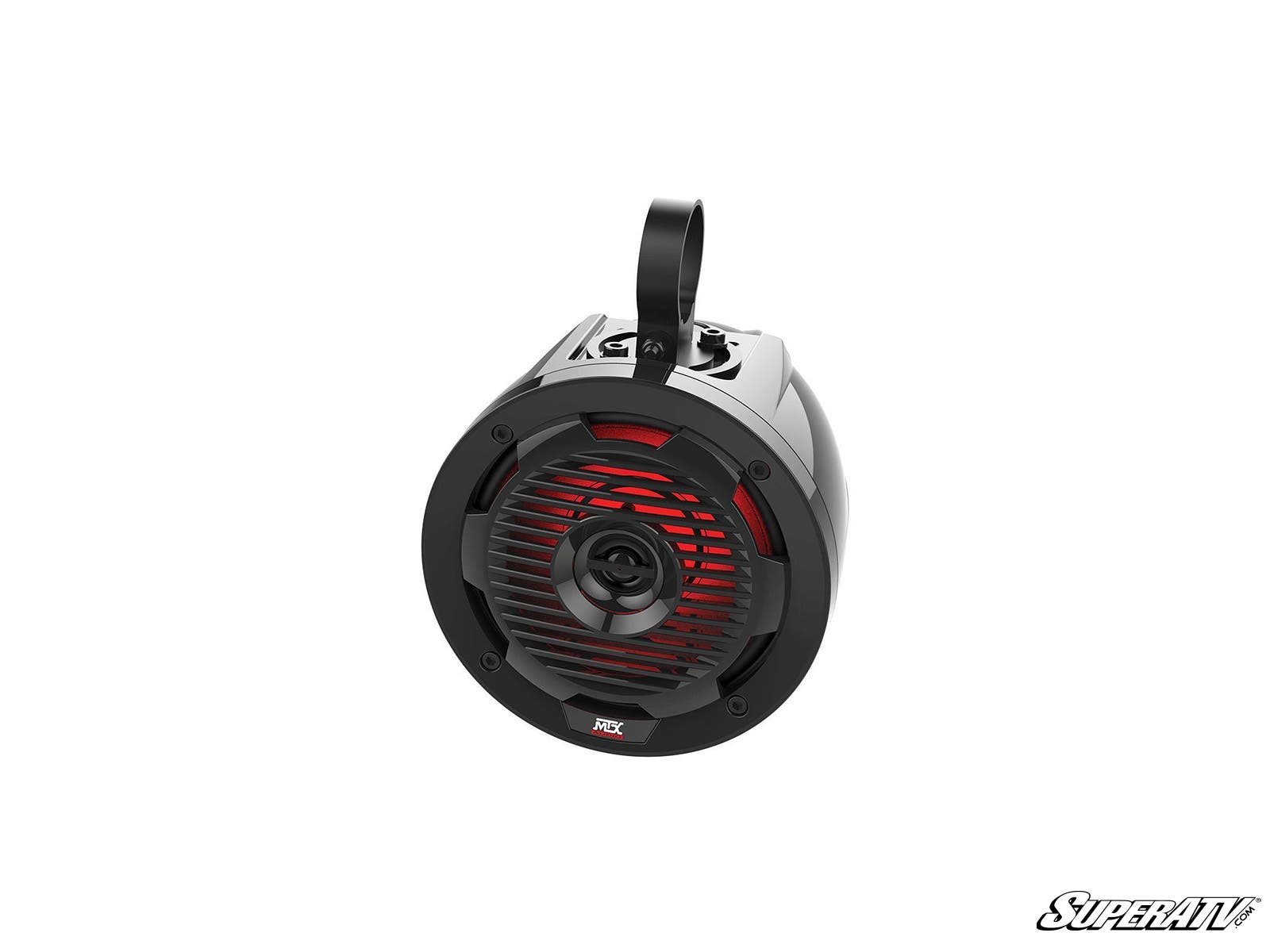

Speakers to Fit Your Cage
With this kit, you get two 6.5” weather-resistant speaker pods. They’re impact
resistant and have integrated RGB lighting for maximum head-turning potential.
Thanks to adjustable clamps that mount easily to 1.75”, 1.85”, or 2” bars,
you’ll be ready to set the ride’s soundtrack without working too hard to
install it.

Speaker Specs
Speaker Size 6.5″, 2-Way
Sensitivity 86dB
Impedance 86dB
Frequency Response 70Hz-20kHz
Dimensions 9.34″ x 7.09″ x
8.76″

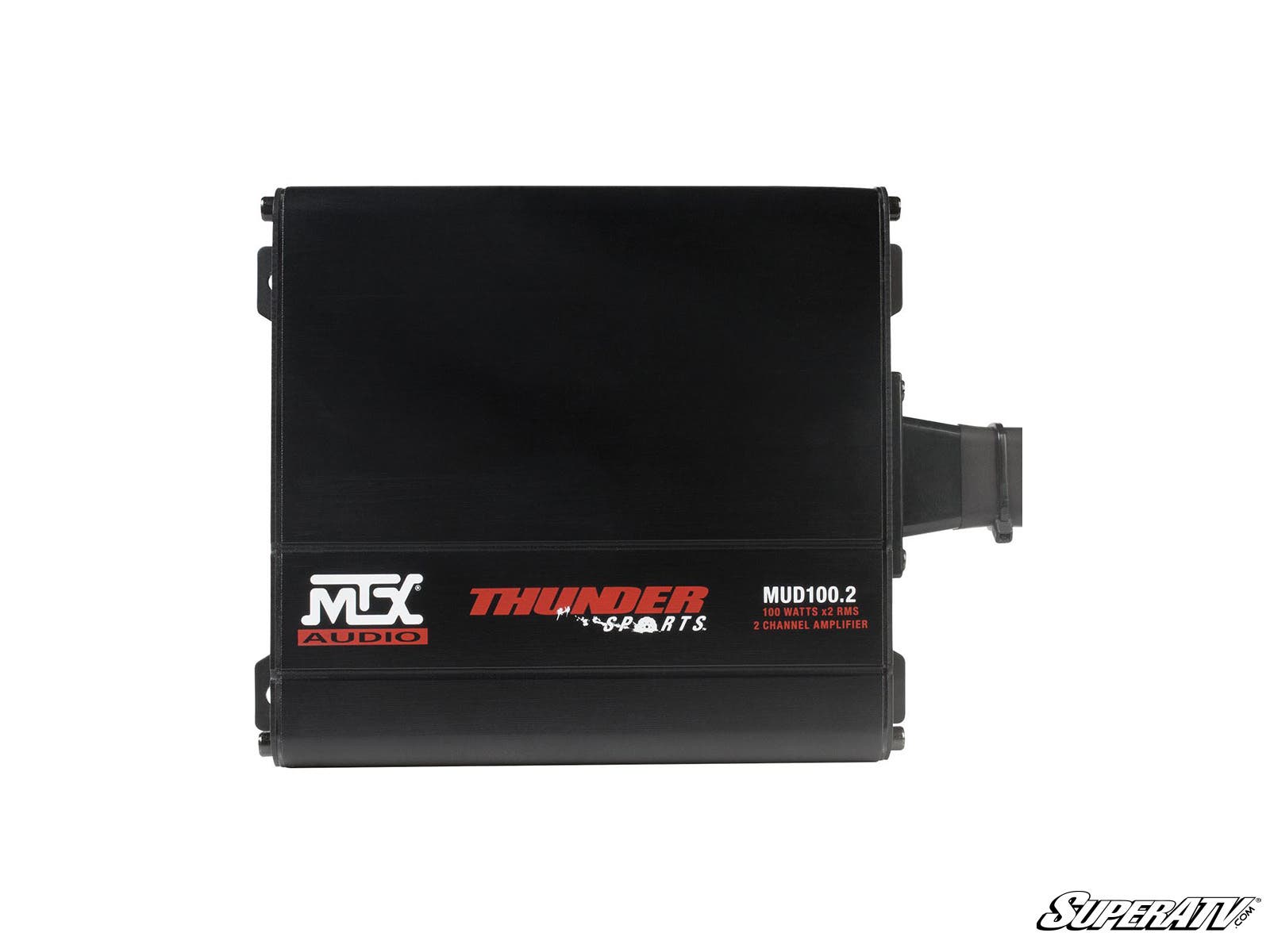

Small But Might Amplifier
This kit comes with MTX’s MUD100-2 amplifier. It’s small, but it packs a major
punch in the sound department! That small size makes it more convenient for
mounting on smaller machines and it’s corrosion and weather-resistant for
maximum longevity. And 200 watts RMS power is enough to run these speaker pods
and then some.

Amplifier Specs
Description 2-Channel
Sensitivity 86dB
4Ω RMS Power Output 50W x 2 Channels
2Ω RMS
Power Output
100W x 2 Channels
Topology Full Range Class D
THD <1.0%
Frequency Response 20Hz – 20kHz
Crossover Fixed HPF/LPF @ 80Hz, 12dB/Oct
Max
Sensitivity
200mV
Maximum Input Signal 5V
Dimensions 4.65″ x 5.71″ x 1.61″

All the Wires and Cables You Need
MTX includes all the wiring you need to get your speaker pods up and running.
You get a power kit to connect the amp to the battery, a stereo cable
connector from your source to the amp, and 18 gauge speaker wires.

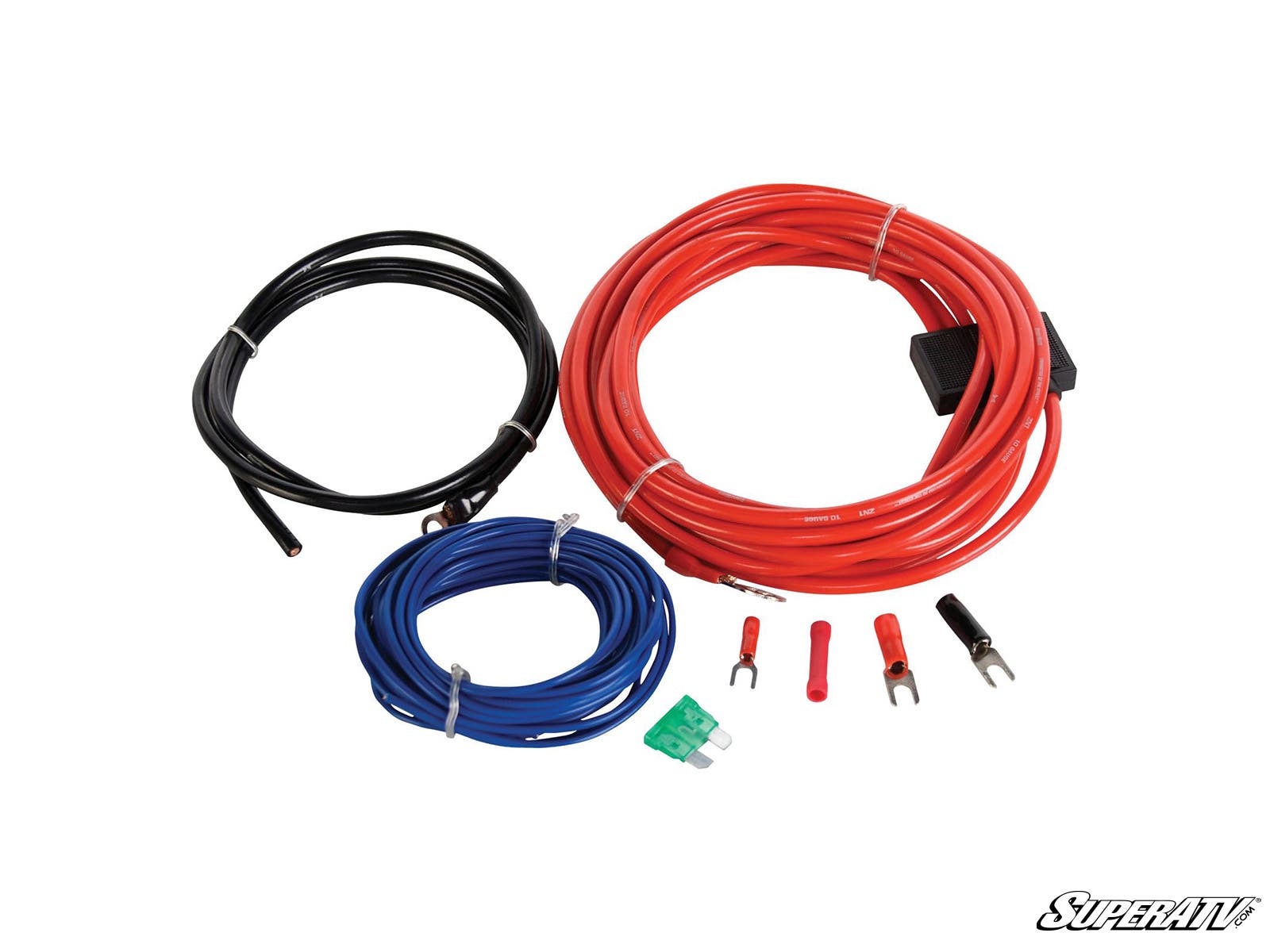

Wiring Kit Includes

  • 3m (9.8′) 10 AWG Red Power Cable
    with ATC Fuse Holder
  • 3m (9.8′) 10 AWG Black Ground Cable
  • 3m
    (9.8′) 22 AWG Remote Wire
  • 10 AWG Ringer Terminal 5/16”
  • 10
    AWG Ring Terminal 3/16”
  • (2) 10 AWG Spade Connectors
  • 18 AWG
    Red Butt Connector
  • 30A ATC Fuse

FEATURE

Amplifier

  • Compact design
  • Corrosion-
    resistant circuit board
  • High and low pass crossovers for use with
    full-range speakers or subwoofers
  • High and low-level inputs allow
    connection to both speaker and RCA input signals
  • 2Ω Stable
  • 2
    Channels
  • Footprint fits most OEM motorcycle radios
  • Full
    Range class D topology
  • Bridgeable

Speakers

  • Weather resistant
  • (2) 6.5″ Speaker
    Pods
  • 2-way
  • Fits bars between 1.75” and 2”
  • Internal
    crossover network
  • Impact resistant
  • Integrated RGB
    lighting

Fitment

RCA Outputs: UNI-1-ADDON uses RCA outputs and is compatible
with any RCA source.

3.5mm Jack:UNI-1-AUX uses a
3.5 mm headphone jack and is compatible with MTX 6 Speaker Universal Sound
Bar, MTX Universal Bluetooth Receiver/Remote, and MTX AWBTSW Bluetooth Rocker
Switch.

Bluetooth:UNI-1-MUDBTRC comes with the MTX
Universal Bluetooth Receiver/Remote and is compatible with all Bluetooth-
enabled devices

Additional information

Choose your style

3.5 mm Headphone Jack, Bluetooth, RCA Outputs
