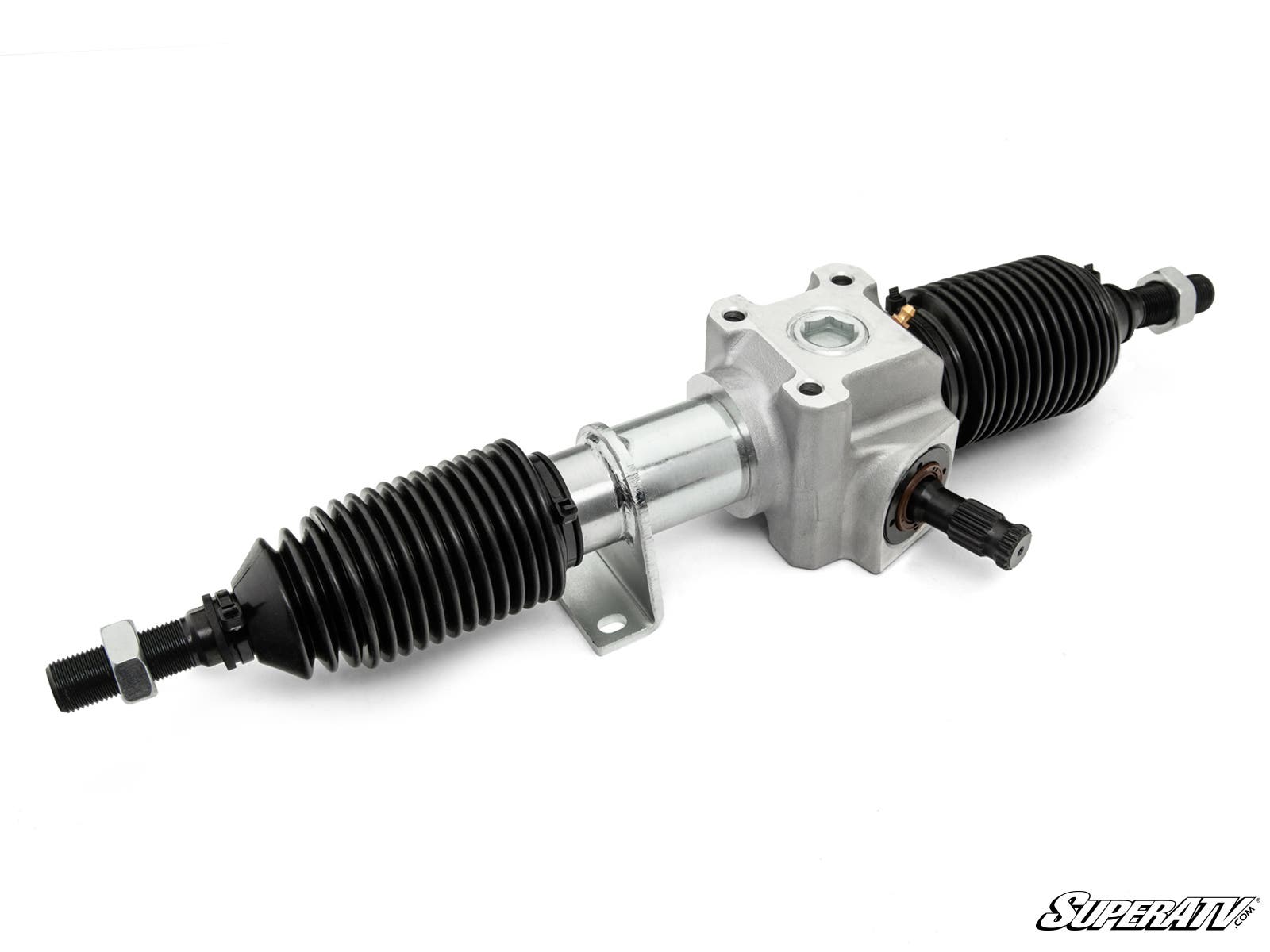

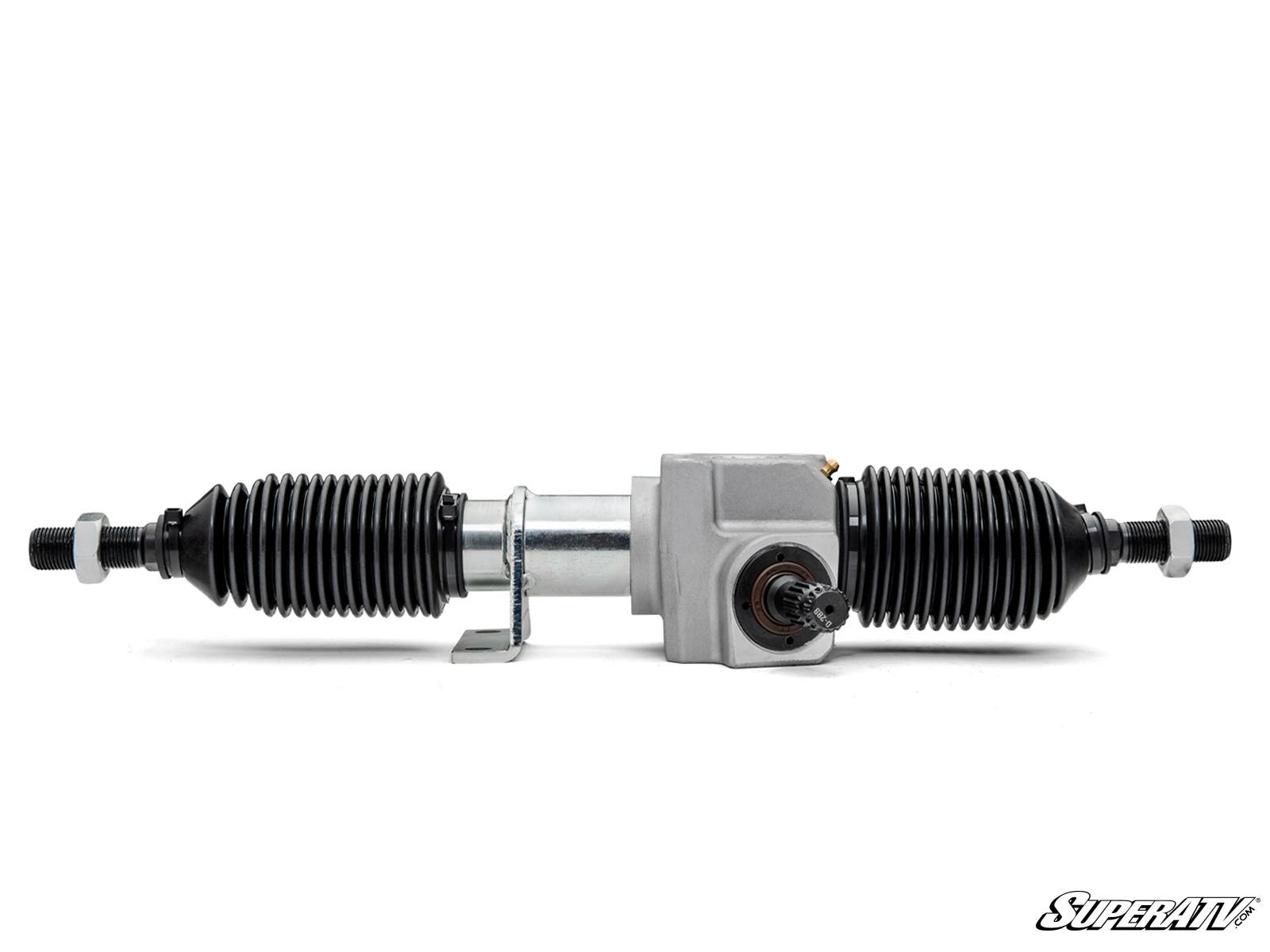

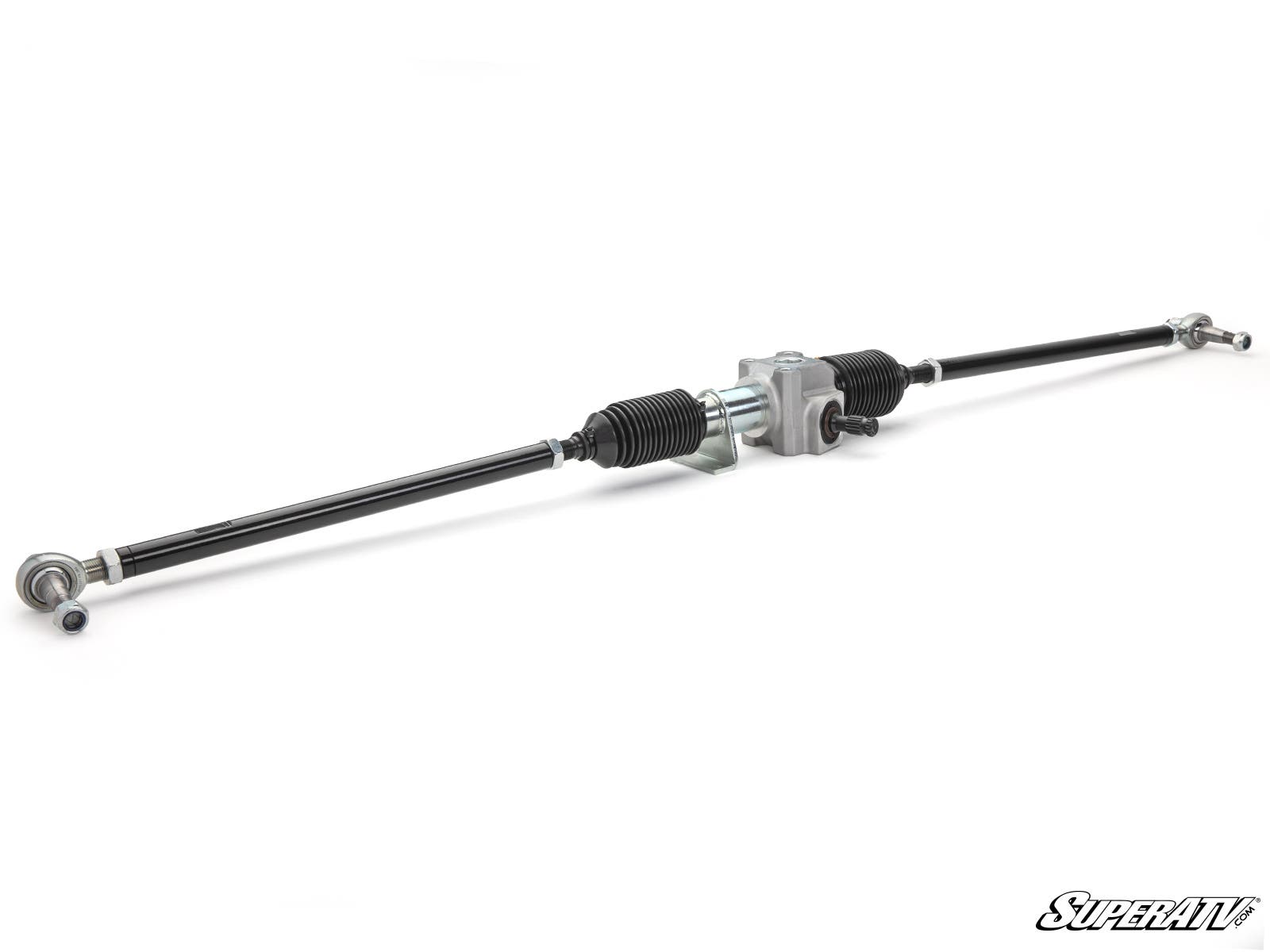

Polaris Ranger 800 RackBoss 2.0 Rack and Pinion


SKU: Item-RP-P-RAN-09XP-002#RE Categories: , , Tag:
Add to wishlist


Beef Up Your Steering
You count on your Polaris Ranger
800 for all sorts of stuff. It’s your most valuable tool all week long and
your favorite toy on the weekend. But your stock rack’s got a huge
problem—it’s wearing out, like all racks do. That’s why you need something
that does it better. Upgrade to SuperATV’s RackBoss 2.0 Rack and Pinion. It’s
X24 Tech and dual-bushing design reduce wear by over 50%. It’s built to handle
massive tires and wild rides.

X24 Tech Dual Bushings Change
the Game

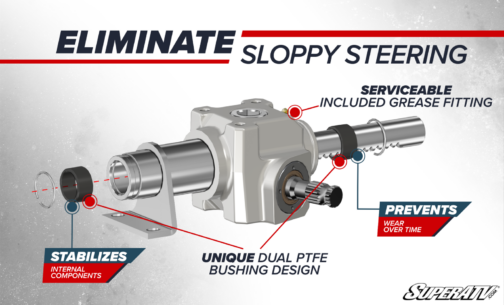

We use a dual PTFE bushing design to prevent the wear
and tear that you’re used to. Thanks to our X24 Tech, which uses tough
bushings at both ends of the rack, RackBoss 2.0 can power through bigger hits
with larger tires without getting sloppy steering. You get like-new operation
that lasts longer than any other Ranger 800 steering rack. Plus, the built-in
grease fittings allow you to push out all the crud that can get in when you go
hard in mud or water. It’s only possible with RackBoss 2.0.

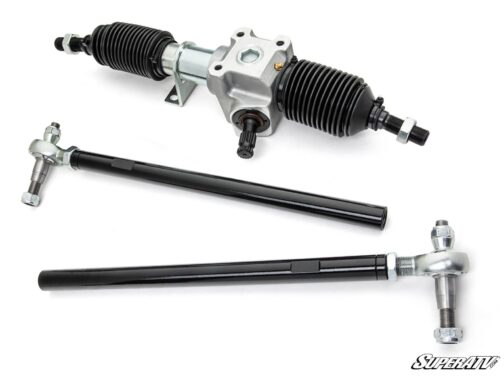

Swaged Tube Tie Rods
Our steel swaged tube tie rods give
you a ton of strength in a lightweight tube. Our swaged design significantly
improves the durability of the 7/8” diameter tubing. They feature 16 mm inner
ball and sockets along with 14 mm outer tie rod ends to make sure the weak
points are as strong as possible. They’re perfect for the casual rider that’s
tired of their stock performance.

Solid Steel Bar Tie

You need a set of solid steel bar tie rods if you want to
get wild. These 1” diameter rods are paired with superior heim joint tie rod
ends too. They use 16 mm rack threads and 3/4” rod threads for extreme
strength. These tie rods can put up with all the heavy-duty upgrades you can
dream up for your Defender—not to mention all the abuse you put it through.


  • Heavy-duty dual PTFE bushings:
    • Designed with X24
    • Prevents wear
    • Reduces slop
    • Improves overall
  • Available tie rod options:
    • Steel
      swaged tube
    • Solid steel bar
  • Solid steel tie rods
    • 3/4” outer tie rod ends
    • Rebuildable inner tie rod
      ends that use 3/4” rod threads and 16 mm rack threads
  • Swaged
    tube tie rods use:
    • 14 mm outer tie rod ends
    • Rebuildable
      inner tie rod ends that use 14 mm rod threads and 16 mm rack threads
  • 65% larger housing than stock
  • Over 50% less wear than OEM
    after 15,000 cycles

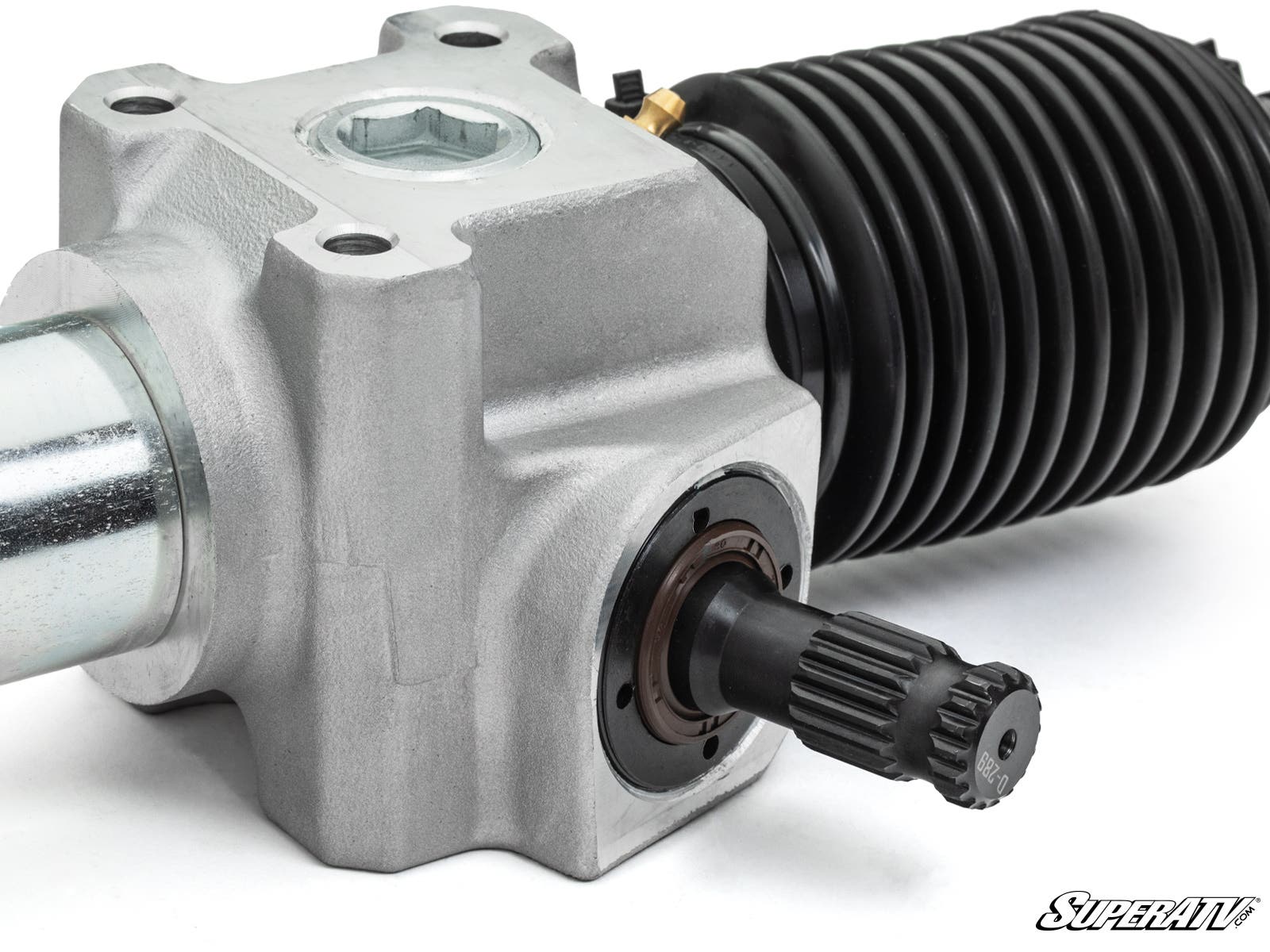

  • Grease fitting for rack gears


  • Polaris Ranger 800 XP : 2011-2014
  • Polaris Ranger 800 XP Crew
    : 2011-2014
  • Polaris Ranger 800 6X6 : 2011-2016

Replaces OEM Part #:
1823795 & 1823712

Additional information

Tie Rod Type

Solid Steel Bar, Steel Swaged Tube
