Can-Am Renegade (Gen 2) High-Clearance 2" Forward Offset A-Arms

Description

Built for Bigger, Better Rides
Every ride is filled with
obstacles, and if you want to get over them easier, you need SuperATV’s High-
Clearance 2” Forward Offset A-Arms for your Can-Am Outlander. With a longer
wheelbase, you’ll be able to fit 32” tires. The high-clearance bends prevent
you from getting hung up on rocks and logs, and the larger tubing boosts
overall strength. They’re the complete package.

Fit 32”
Tires with a 2” Offset

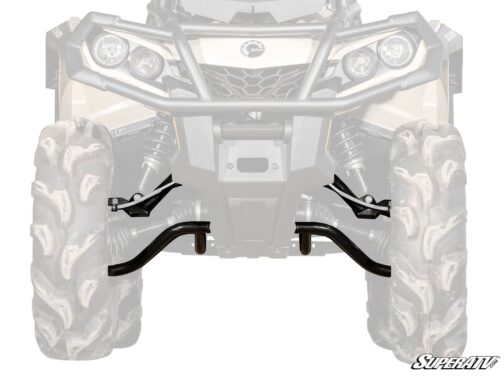

The 2” offset extends your wheelbase to
give your quad room for up to 32” tires while boosting overall stability.
Combine that with 1.5” of extra ground clearance from our carefully designed
bends, and you can roll down rougher trails without getting hung up.

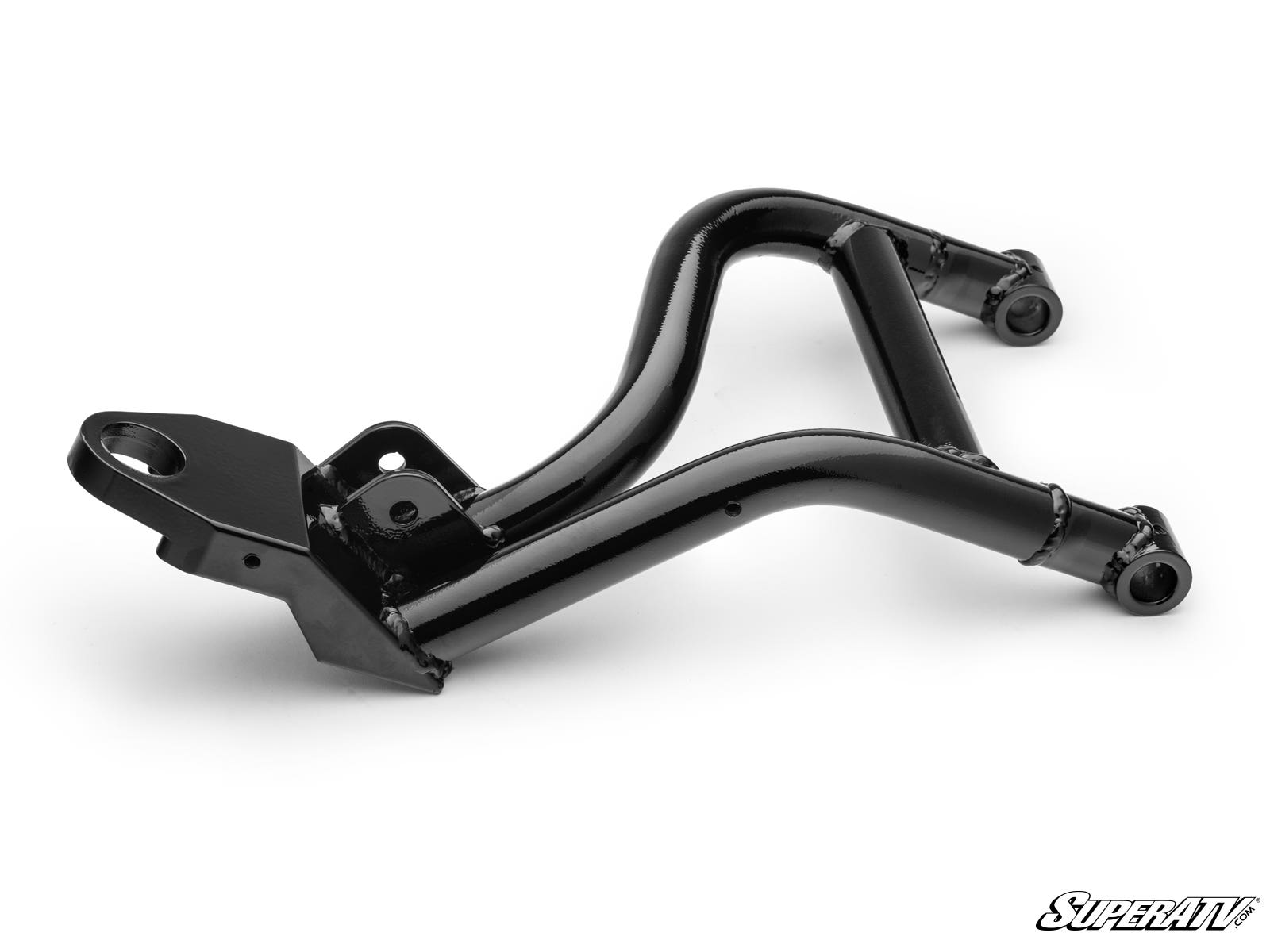

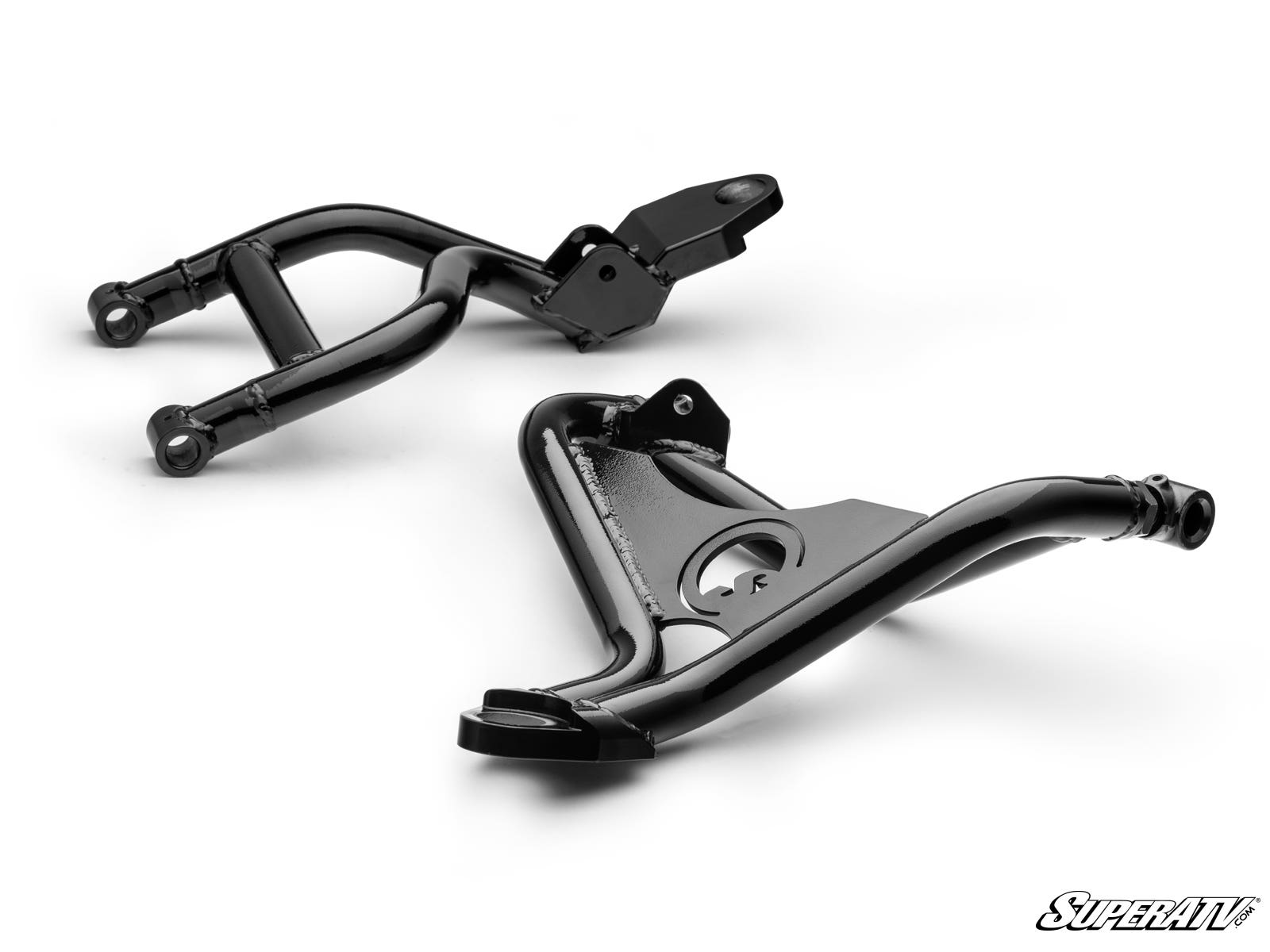

Made with 1.25” x .138” Wall Steel DOM Tubing
We make
these A-arms with 1.25” diameter tubing with .138” sidewalls. That makes them
incredibly tough, and we make them more durable with a UV-resistant powder
coating. Take them anywhere and ride any way you want—they can handle it.

Backed By a Lifetime Warranty
We believe in the
strength of our A-arms, and you should too. That’s why we back them with a
lifetime warranty. Go hard—we’ve got your back.

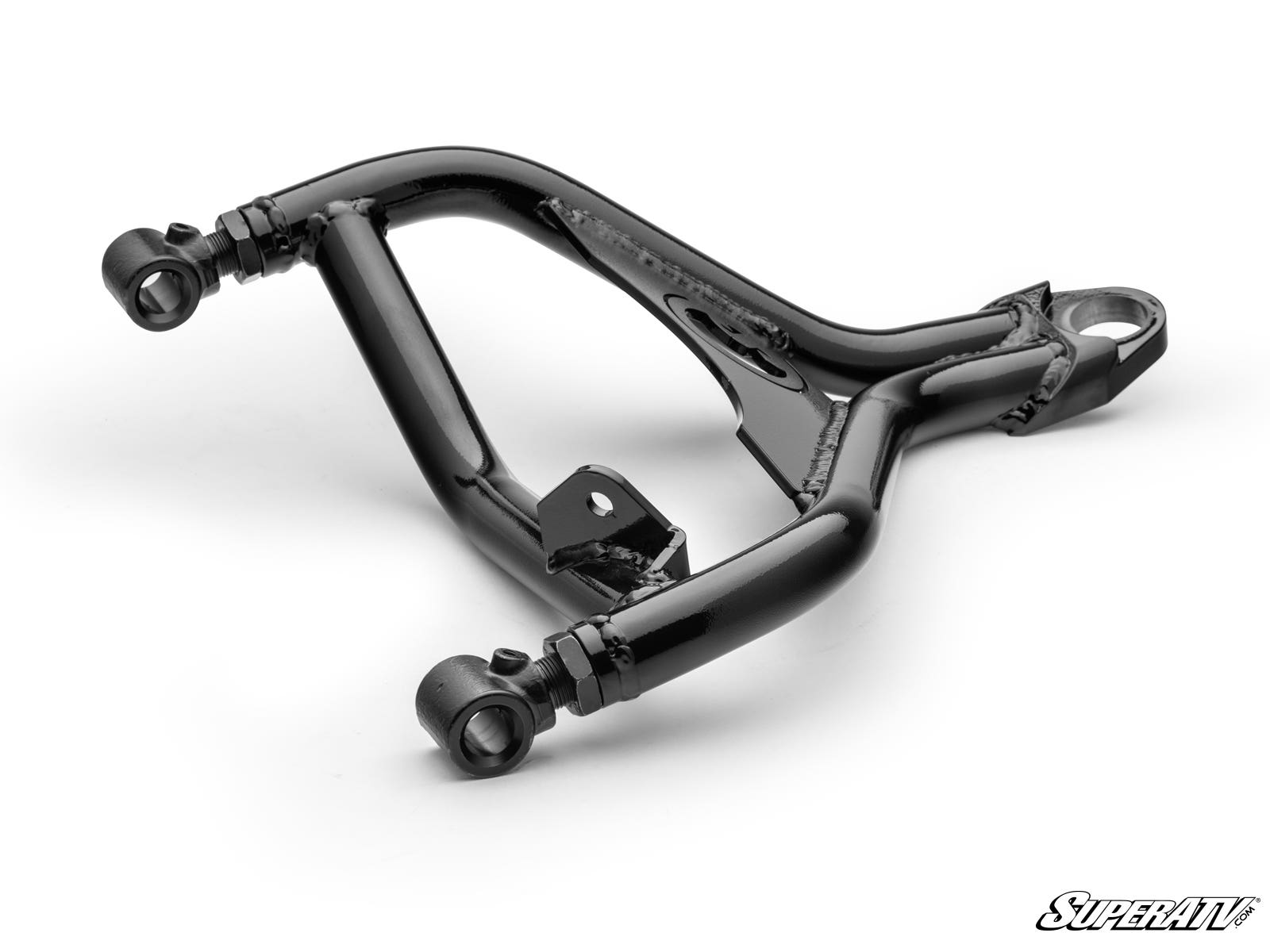

Adjustable
Pivot Blocks for Perfect Camber
When you add weight or a lift to
your ATV, your camber changes and causes premature tire wear. Our adjustable
pivot blocks let you set your camber perfectly, get a better ride, and reduce
tire wear.

Let SuperATV Do the Work—Preassembly
Available!
Want to spend more time on the trails and less time
in the garage? Purchase a set of SuperATV ball joints with your A-arms, and
we’ll install them for you for free! We save you money and time so you can get
back to doing what you love.

NOTE: You must re-use
your stock ball joints if you don’t select a preinstalled ball joint at
checkout.

Heavy-Duty Ball Joints
Our heavy-
duty ball joints are designed with ultimate performance and convenience in
mind. Whether you’re doing flips or chasing hills, our proprietary blend of
hardened 4340 VAR steel and zinc plating means this ball joint can take it.
Our heavy-duty ball joints also come with easily-accessible grease zerks and
an adjustable design. Extensive lab and field testing shows that our heavy-
duty ball joints can withstand double the pressure of an OEM ball joint!

Super-Duty 300M Ball Joints
We took the strongest
ball joint material on the market—300M grade steel—and combined it with our
superior design engineering to make the strongest ball joint on the market. It
comes with an easily-accessible grease zerk and an adjustable steel-on-steel
design, making it easy to keep your ball joints maintained and flexible. At
2.25x stronger than stock, you won’t find a better ball joint.

Keller Ball Joints
Keller Ball Joints use a two-piece
design that eliminates the need for a snap ring. They thread onto your A-arms
like a nut and bolt, which makes these ball joints virtually impossible to
pull out. The high-quality chromoly steel stud combined with an advanced tool-
steel body makes them perfect for bigger machines, bigger tires, and bigger
rides. And since they’re greaseable and rebuildable, you can keep them running
perfectly.

FEATURE

• Adds a 2” forward offset
• Adds 1.5” of ground clearance
• Fit up to 32” tires
• 1.25” tubing is larger than stock
• Adjustable pivot blocks for full camber adjustability
• Utilizes
  stock A-arm bushings
• Steering stop kit included
• UV-resistant
  powder coat finish
• Easy to install
• Backed by a lifetime
  warranty

Fitment

• Can-Am Renegade 1000 R : 2019
• Can-Am Renegade 1000 R XXC :
  2020+
• Can-Am Renegade 850 : 2019-2022
• Can-Am Renegade 850
  XXC : 2021-2022
• Can-Am Renegade 650 : 2023+
• Can-Am Renegade
  570 : 2019-2022
• Can-Am Renegade 570 XMR : 2020-2021
