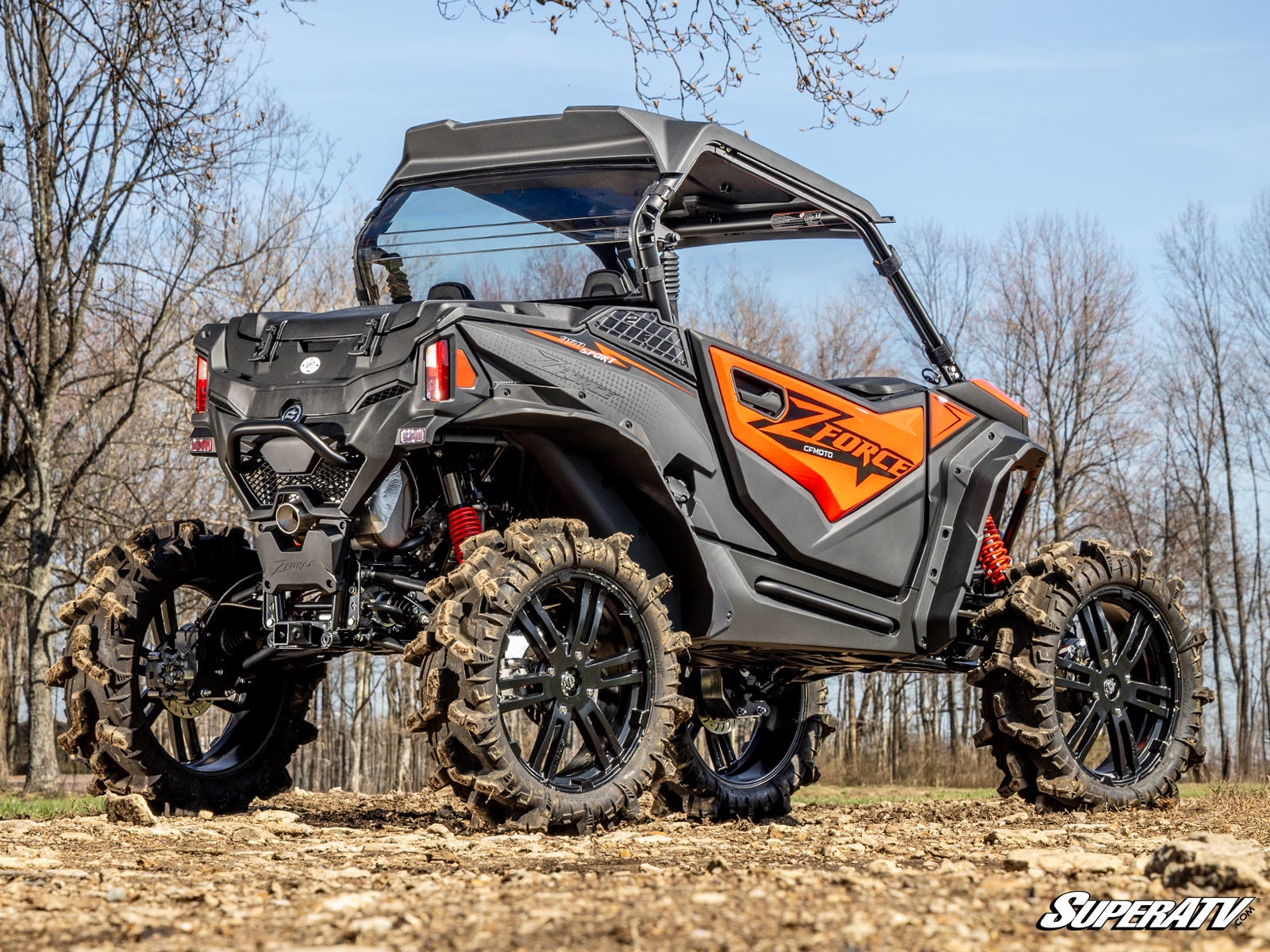

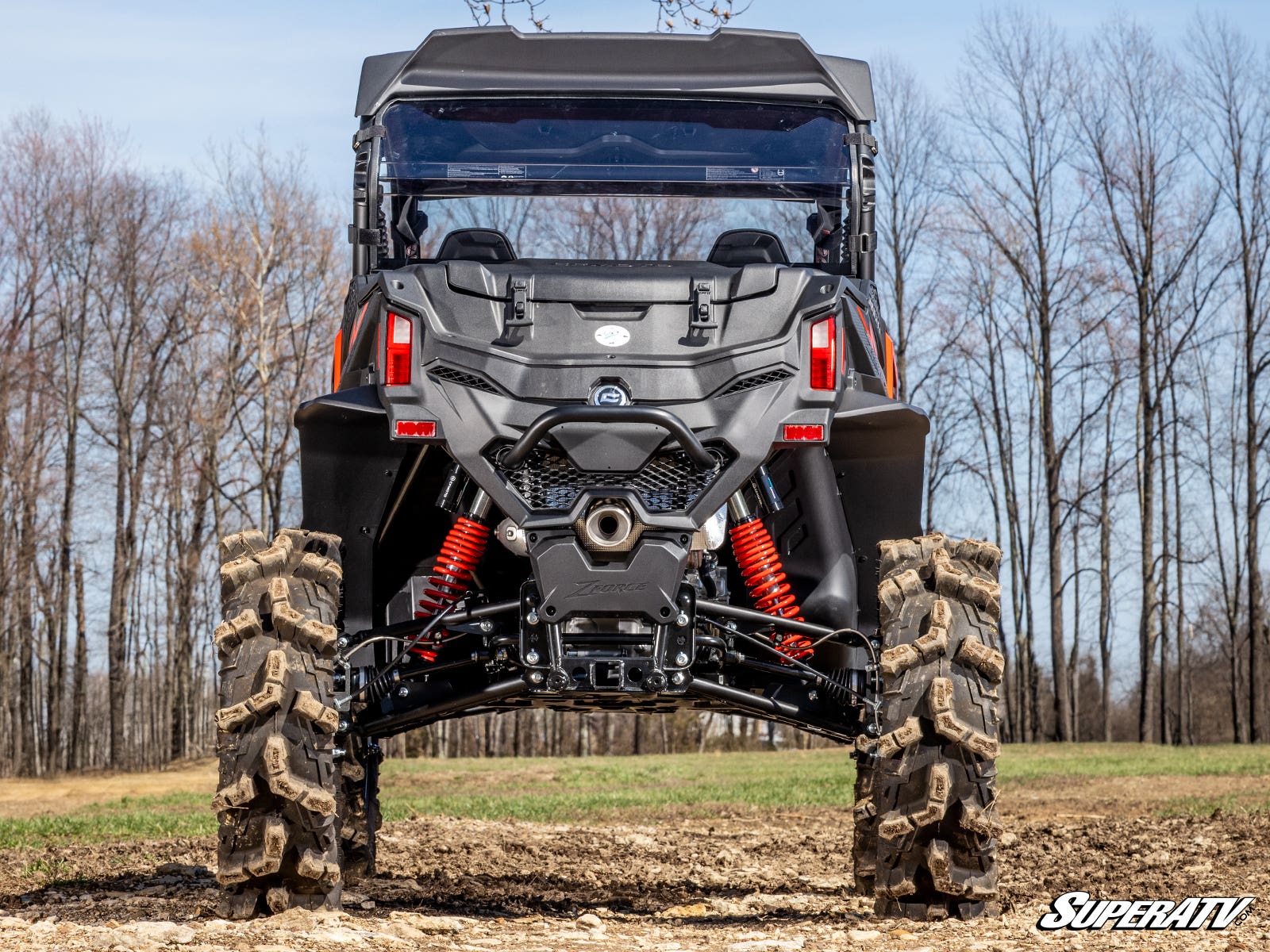

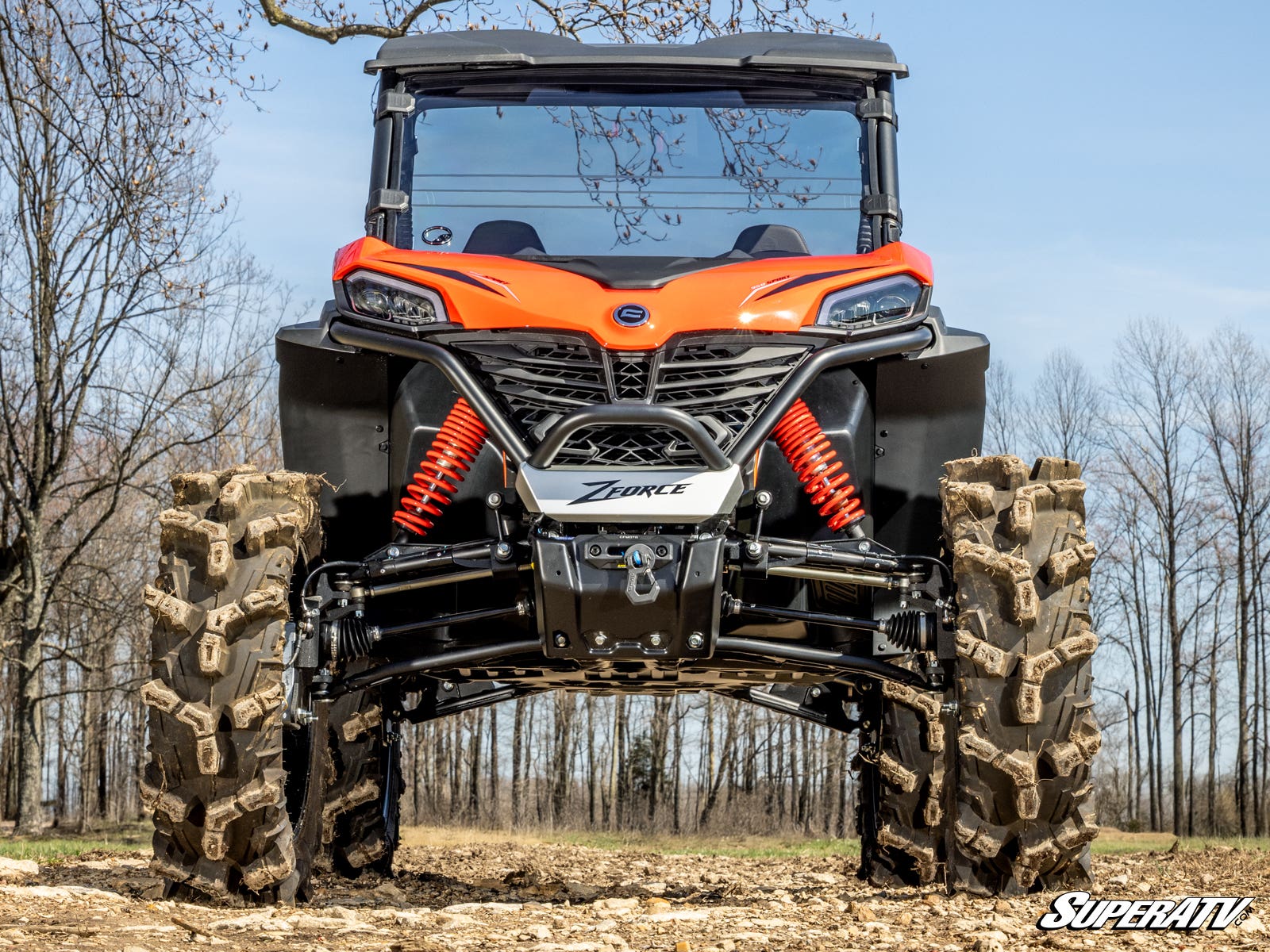

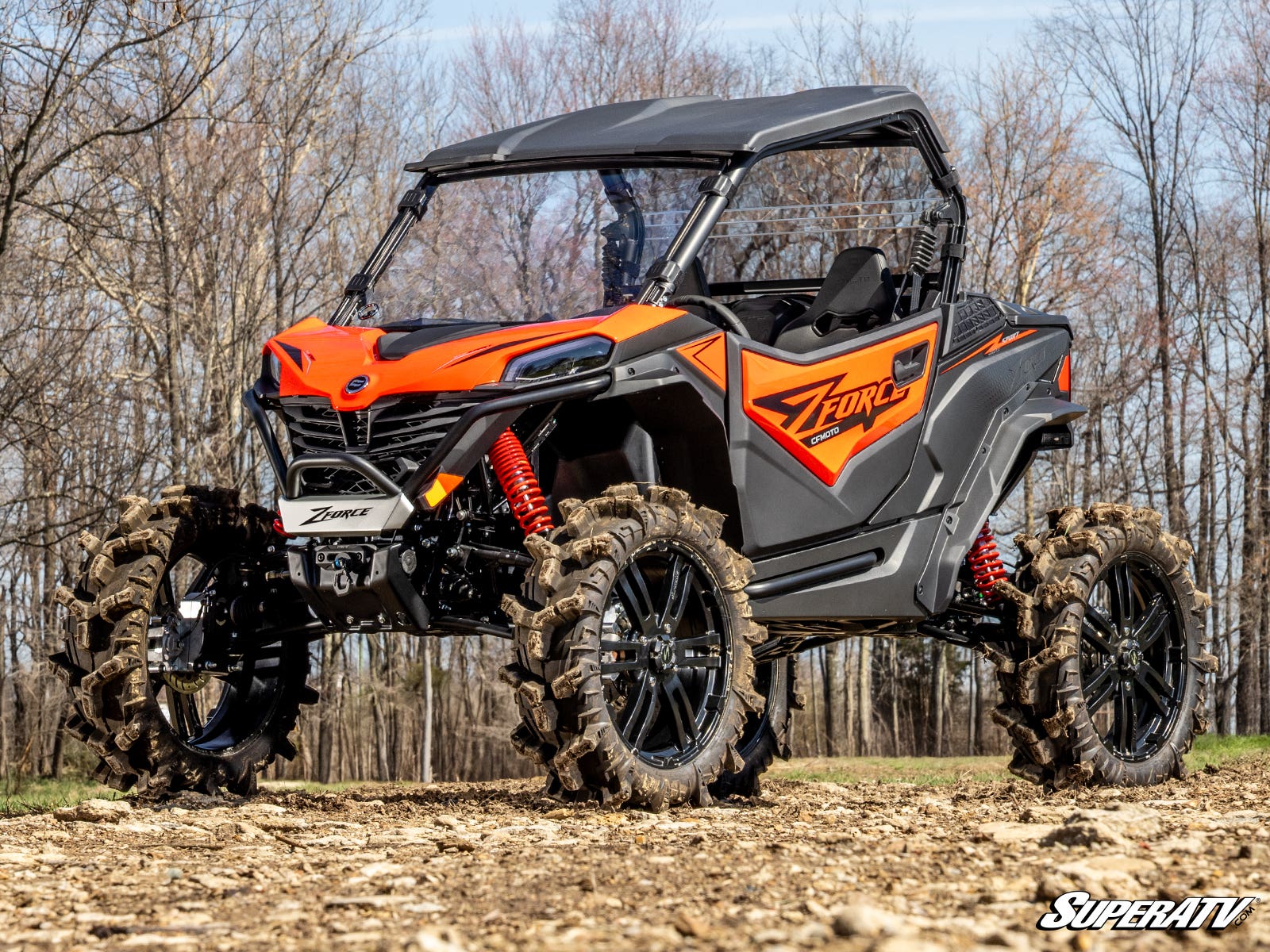

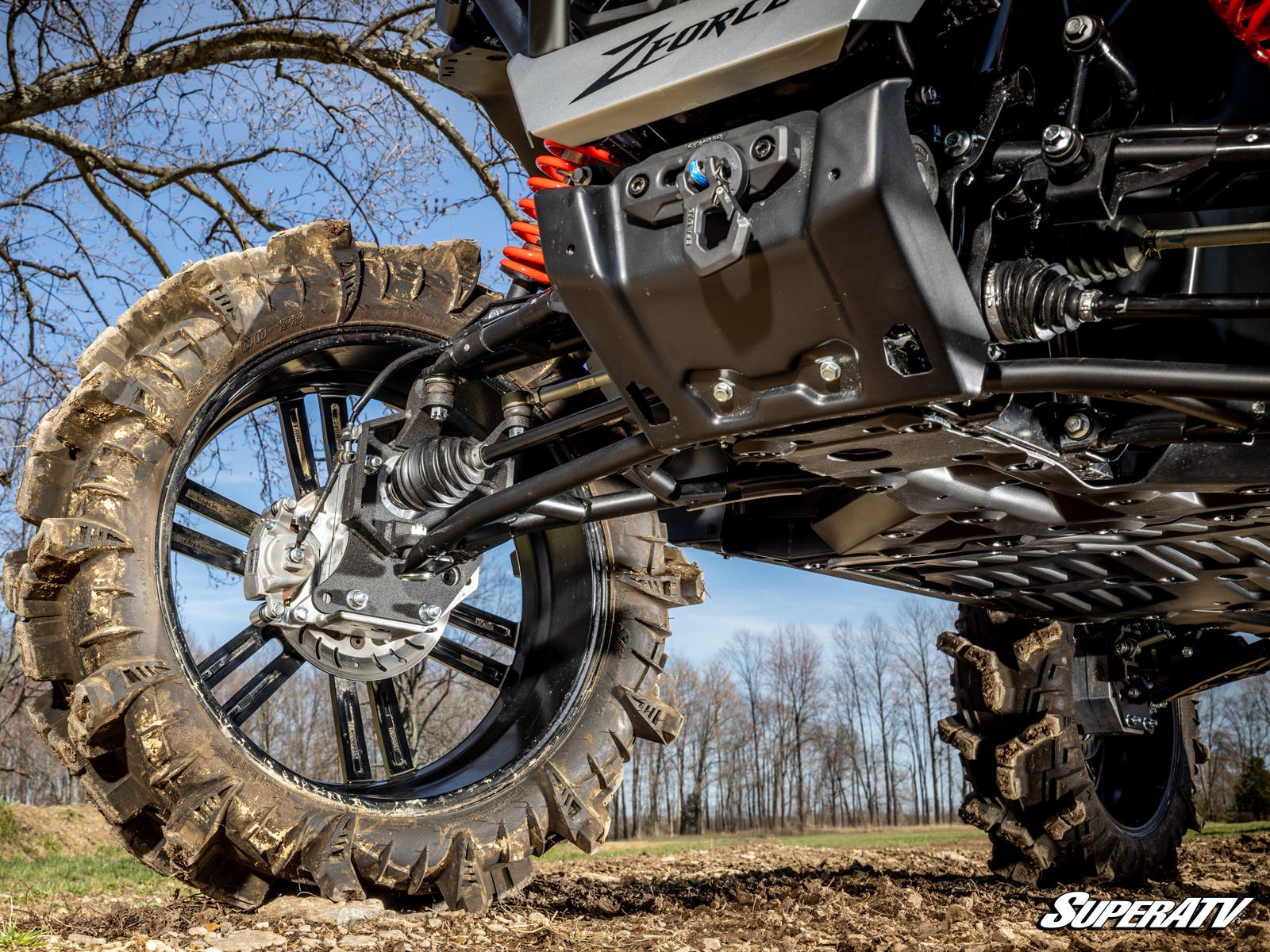

CFMOTO ZForce 950 Sport 4″ Portal Gear Lift

Description

Redefine Your ZForce with GDP Portals
People use the
CFMOTO ZForce 950 Sport for mud, dunes, racing, trail riding, and everything
else. Now you can take your ZForce 950 Sport to the next level with a 4” GDP
Portal Gear Lift from SuperATV. It gives you a lift kit and a gear reduction
in one package for unbeatable performance gains. Choose a 15% or 30% gear
reduction to boost your torque and cast or billet housings for extreme
strength. GDP gives you the option to build your ZForce your way.

Perfect for Any Terrain
We don’t believe in one-size-
fits-all riding. That’s why GDP Portals are made for the terrain and ride

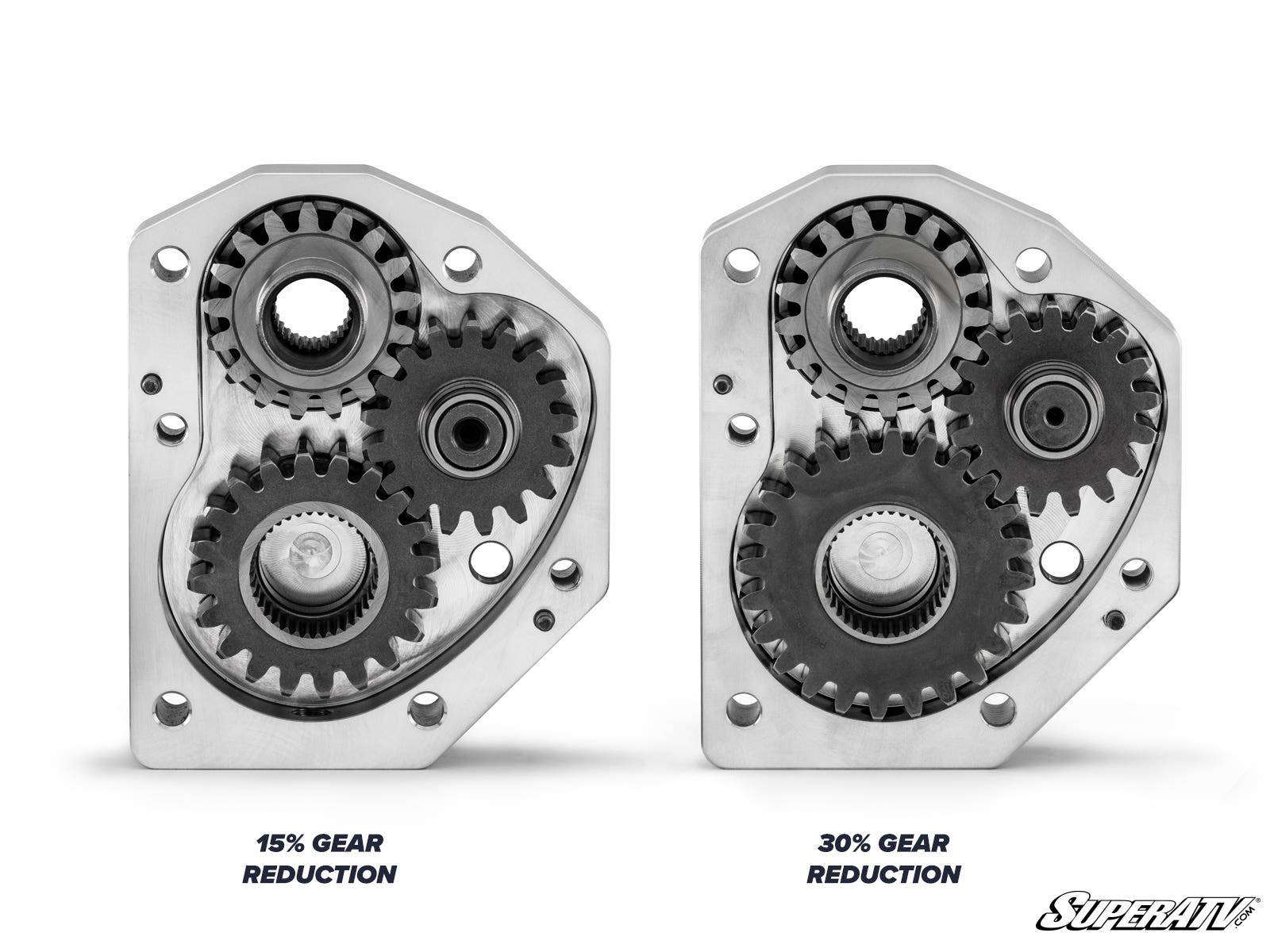

style you want. A 15% gear reduction gives you more torque while keeping the
speed you need for fast trails and dunes. The 30% reduction gears you down for
big tires, deep mud, and serious rock crawling. If you like pushing your
ZForce 950 Sport to its limits, portals are the best way to do it.

The Strongest Portals on Earth

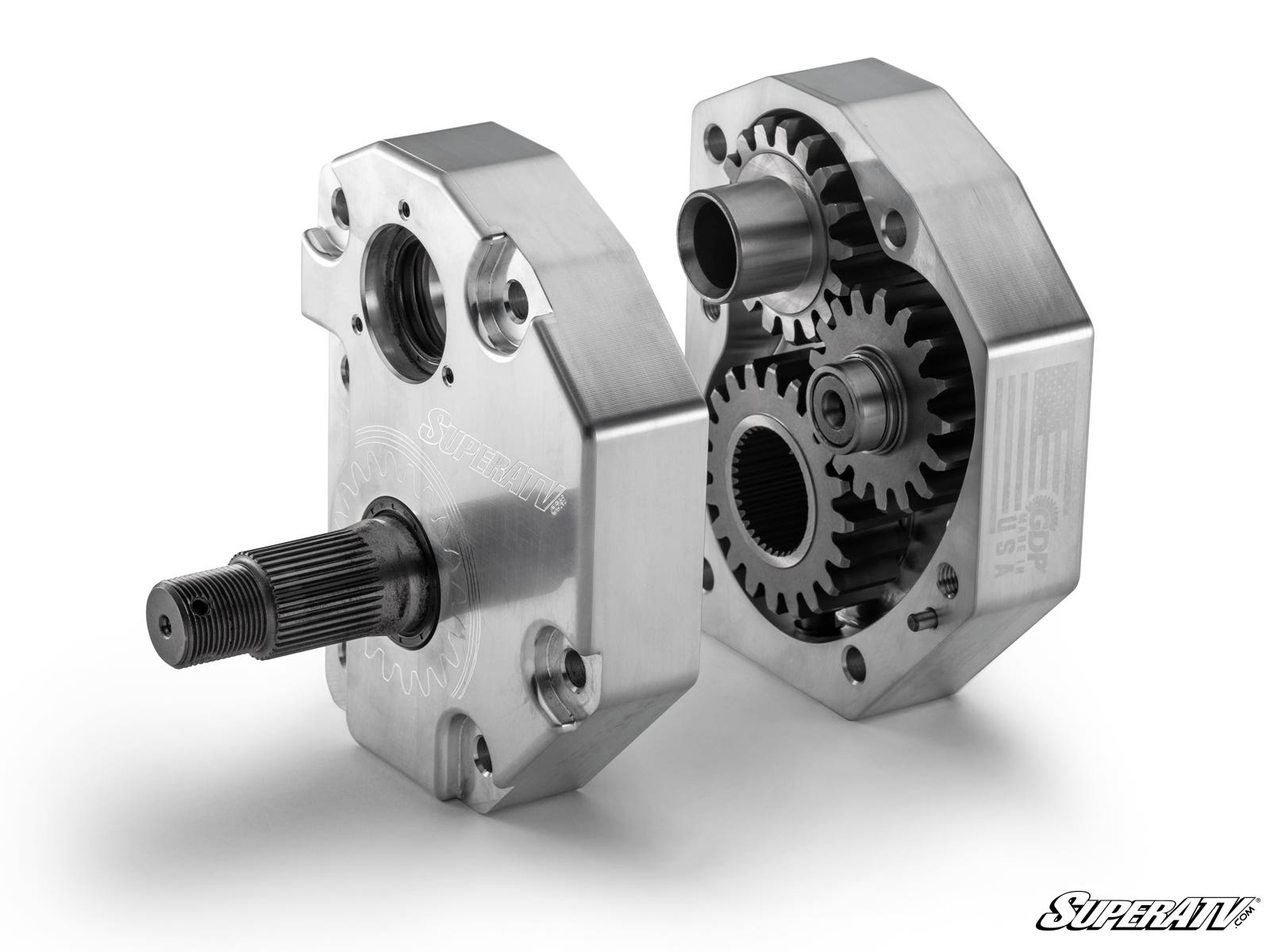

GDP Portals are built to
outlast anything else. Choose cast or billet aluminum housings—they’re both
thicker and stronger than the competition. Add our 5/16” advanced steel alloy
backing plates, and you’ve got the most durable portal gear lift for your
ZForce 950 Sport.

• Our housings are reinforced for gear retention
  and optimized for oil flow
• Advanced steel alloy backing plates are
  stronger than chromoly
• Enhance with
  Portal Blood—gear oil formulated for GDP Portals

There are
no gimmicks and no vents because vents do more harm than good—we know because
we tested them.

Advanced Gaskets, Seals, and
Bearings
Our portals use:

• Advanced Thermo-Tork® gaskets
  and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing
  coverage throughout so you can forget about oil leaks
• Double-angular
  contact output bearings to prevent premature wear
• Roller idler and
  drive bearings to maintain perfect gear meshing

Top-
Rated Support
Still deciding which portals are right for your
ride? With GDP, you get direct access to our portal tech team. Call us today
and we’ll get you set up with the perfect portals for your ZForce 950 Sport.

CFMOTO ZForce 950 Sport 4” Portal Gear Lift

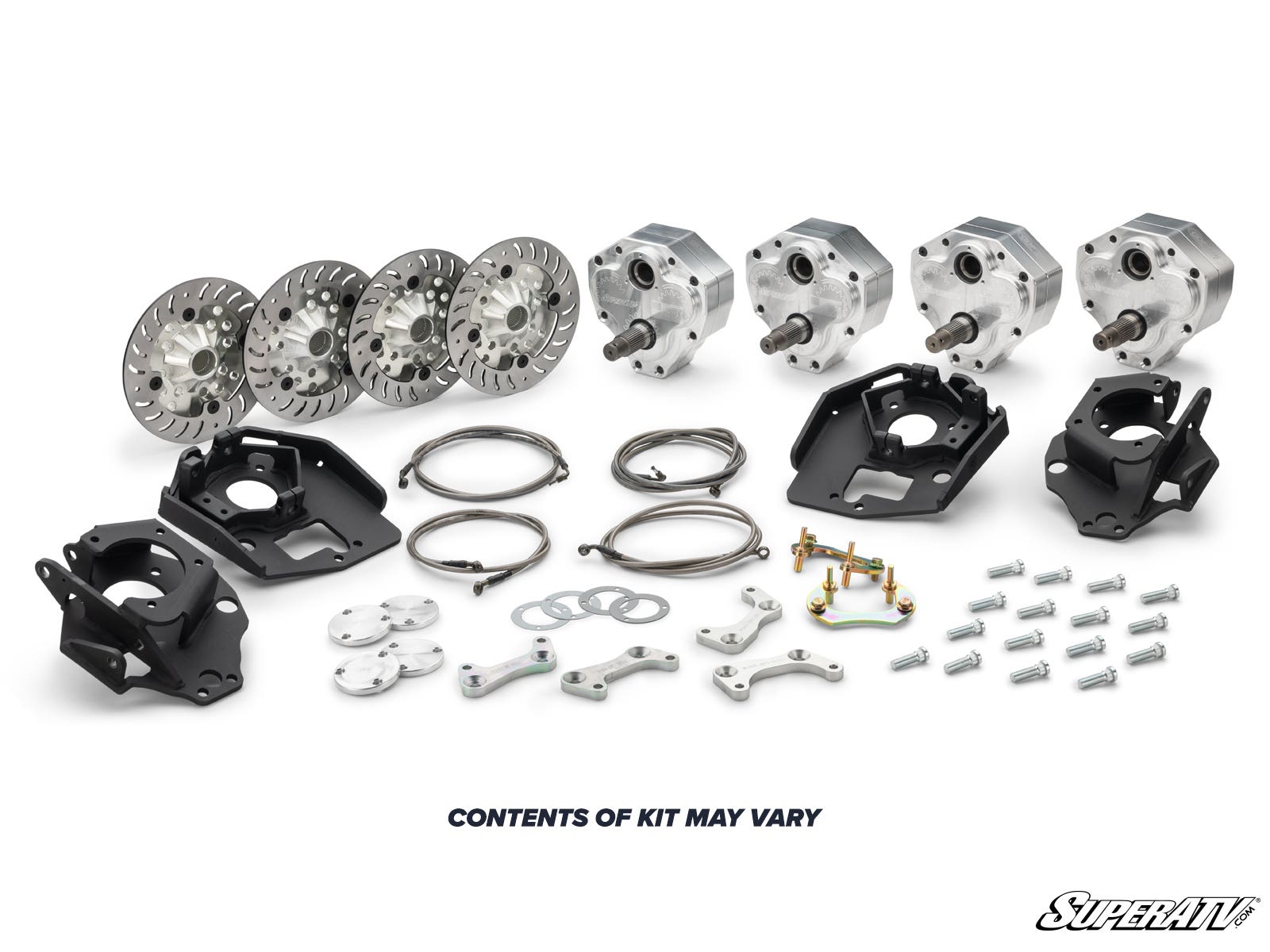

Includes:

• (4) Assembled portal hub complete with 9310 gears,
  seals, output shaft, advanced gaskets, and thrust bearings
• (4)
  Universal hubs and stainless steel slotted rotors with lugs
• (4)
  Specialized steel alloy backing plates
• (4) Steel caliper mounting
  plates
• (2) Front caliper adapters
• (2) Rear caliper
  adapters
• (8) Shims
• Upper and lower A-arm mount
  assemblies
• Extended brake lines
• All required hardware,
  including recessed castle nut socket

FEATURE

• Available with billet or cast aluminum housing
• Cool, quiet,
  precision-ground gears made from 9310 alloy billet steel
• Increases
  width by 4” per side (8” total)
• 1.5” diameter 4340 hardened steel
  drive shaft
• No leak bearings and seals
• Universal hub fits
  all major bolt patterns
• Comes complete with all hardware, backing
  plates, brake lines and instructions

Wheel
Requirements:

• 14” or larger wheel required
• Wheels
  cannot exceed 5” backspacing
• Not compatible with dual beadlock
  wheels

Fitment

• CFMOTO ZForce 950 Sport : 2023+
• CFMOTO ZForce 950 Sport 4 :
  2023+
