Description
Dominate Any Trail with Honda Rubicon GDP Portals
Your

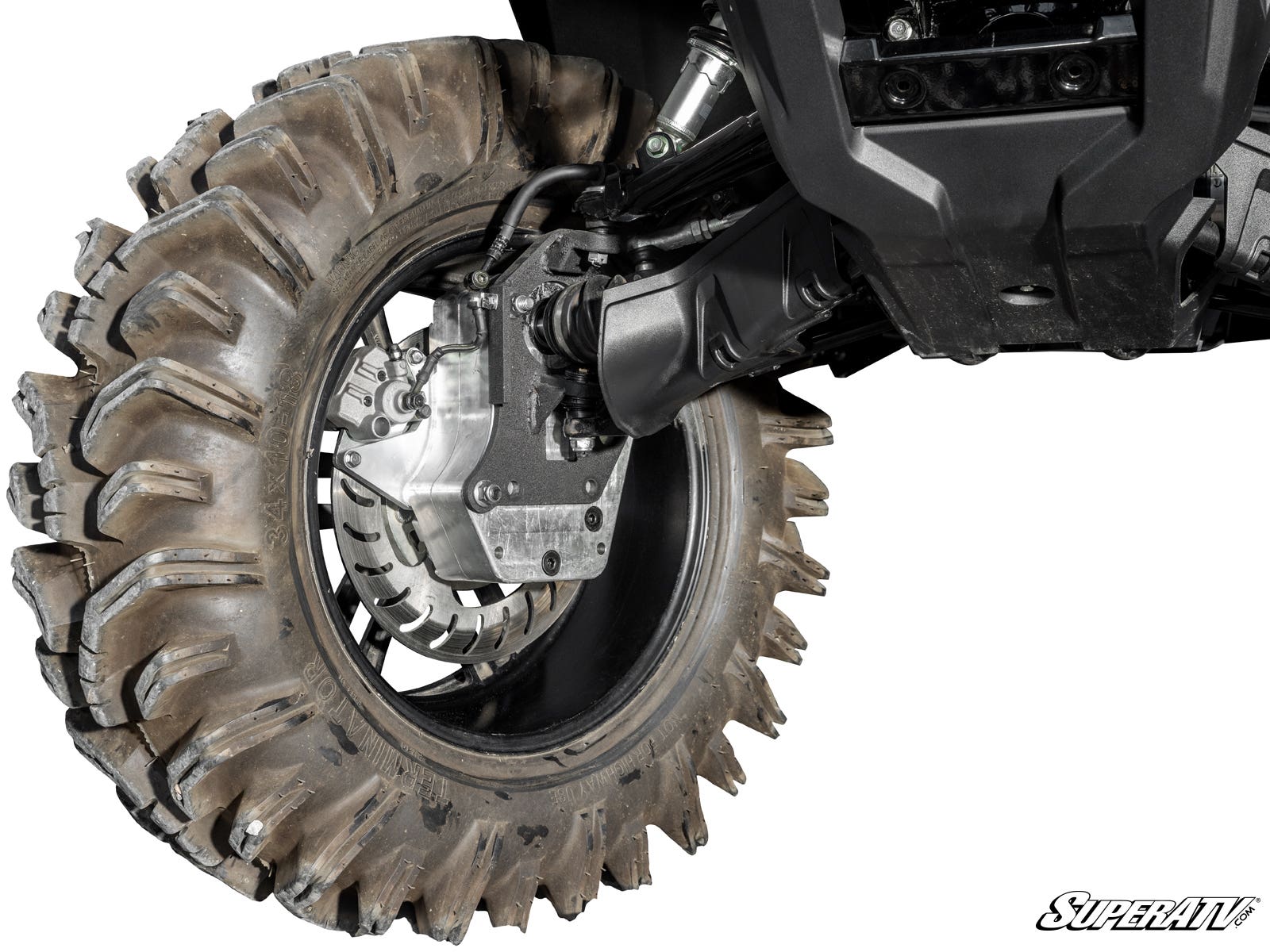

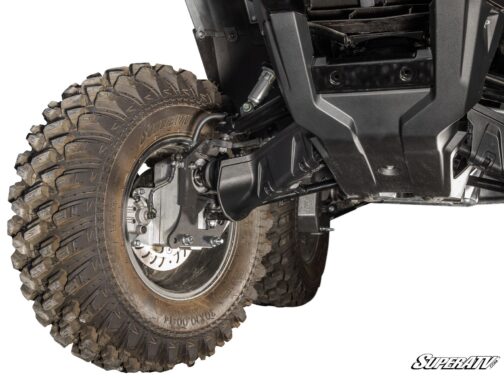

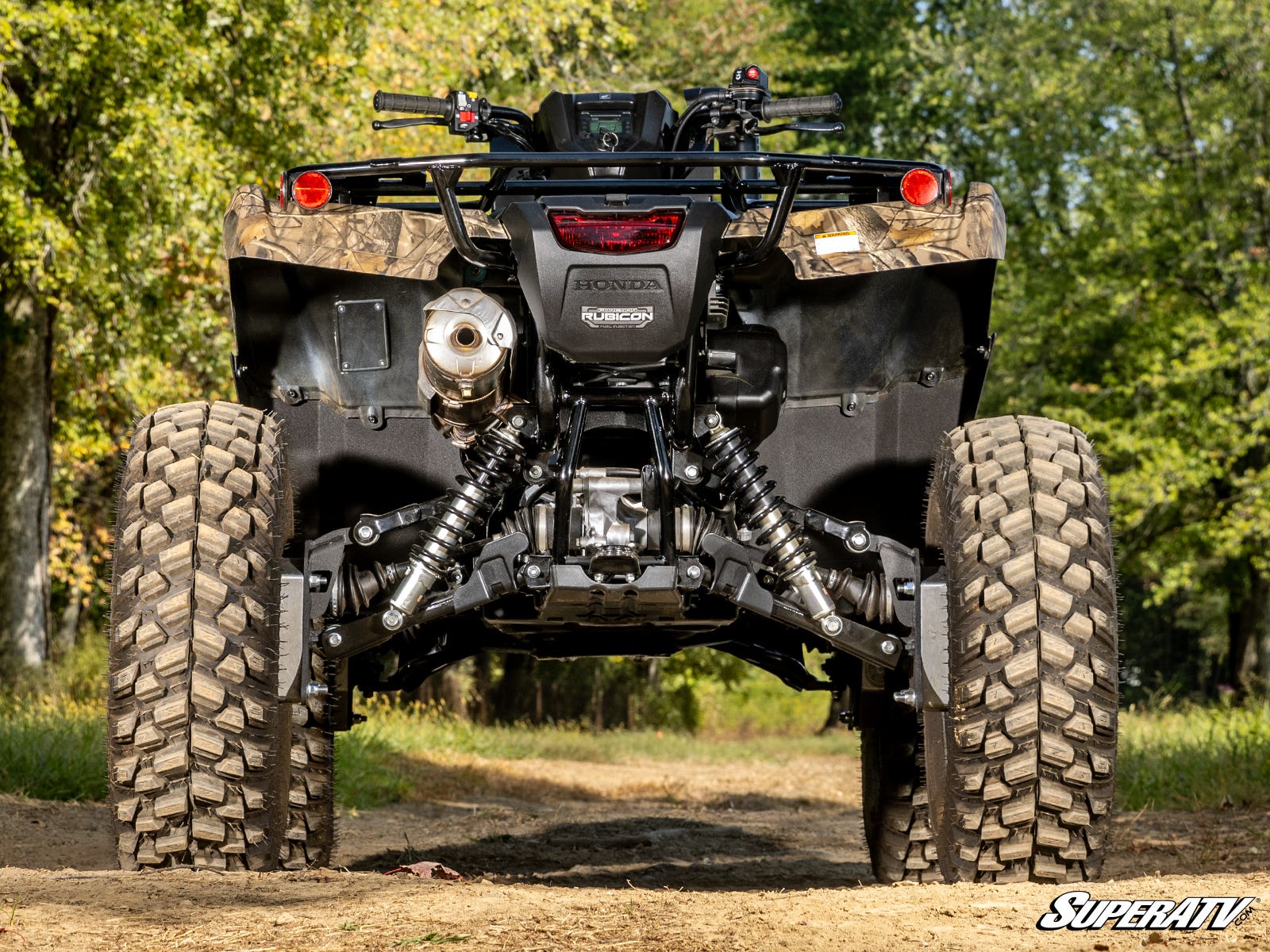

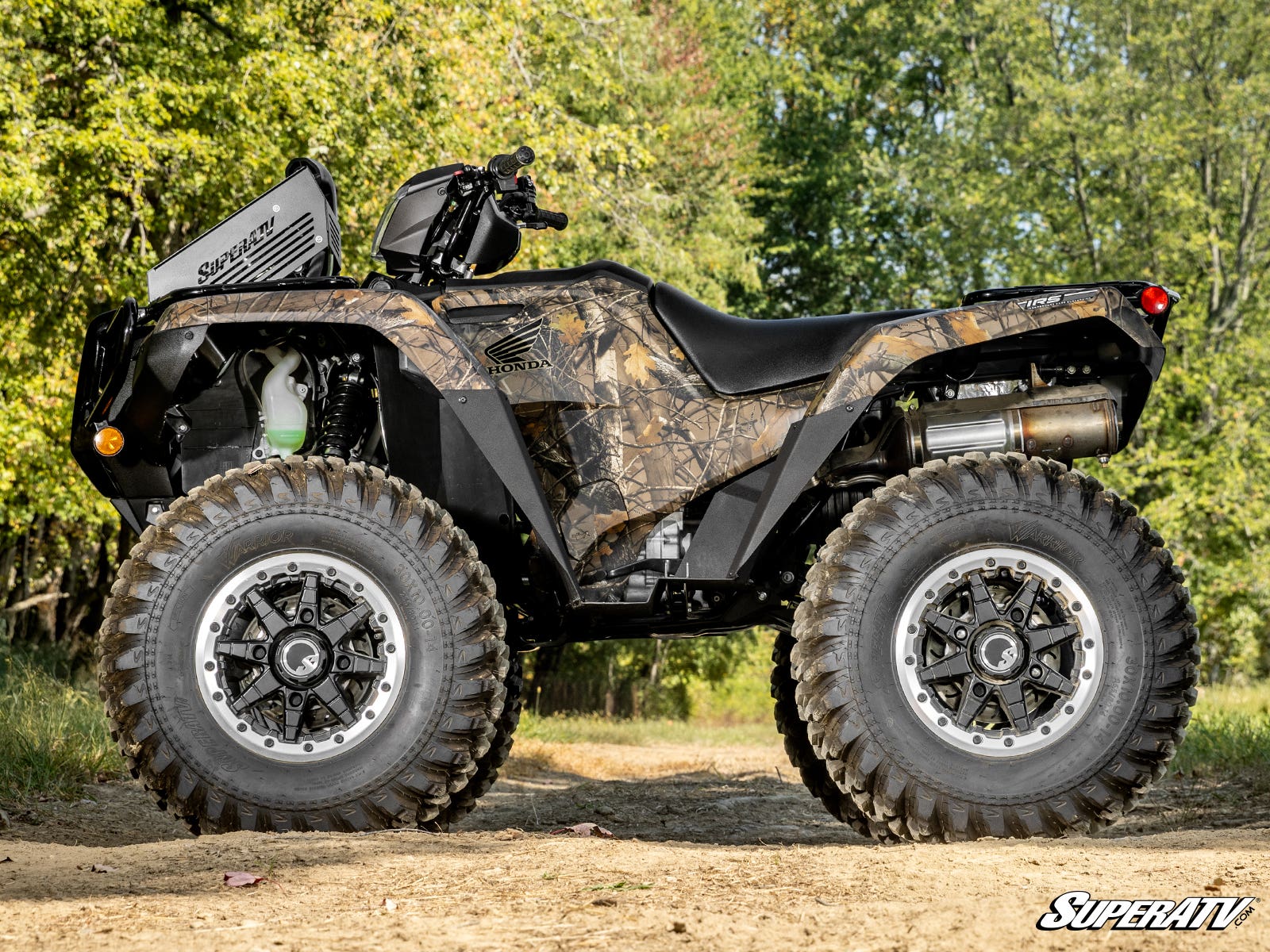

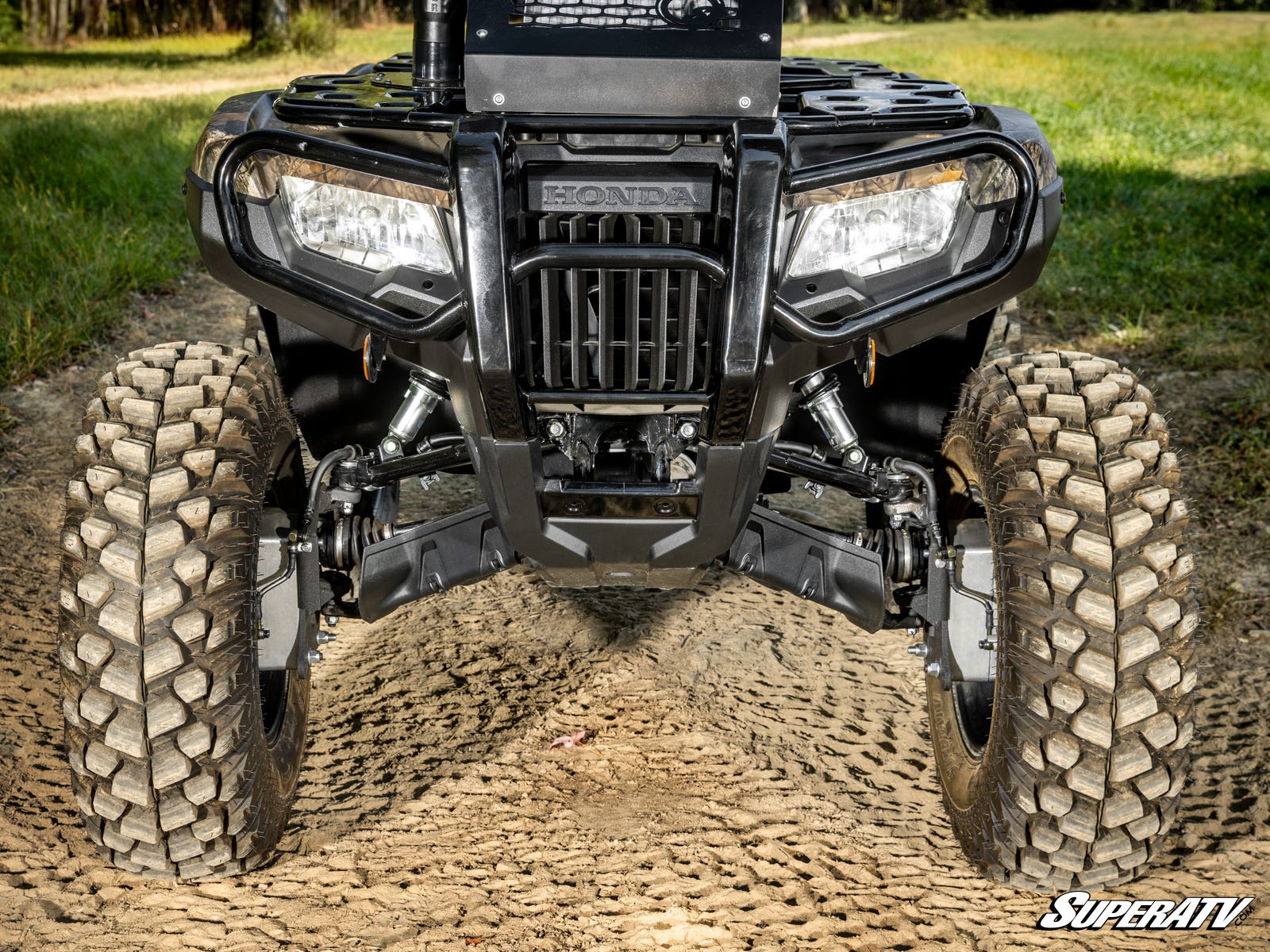

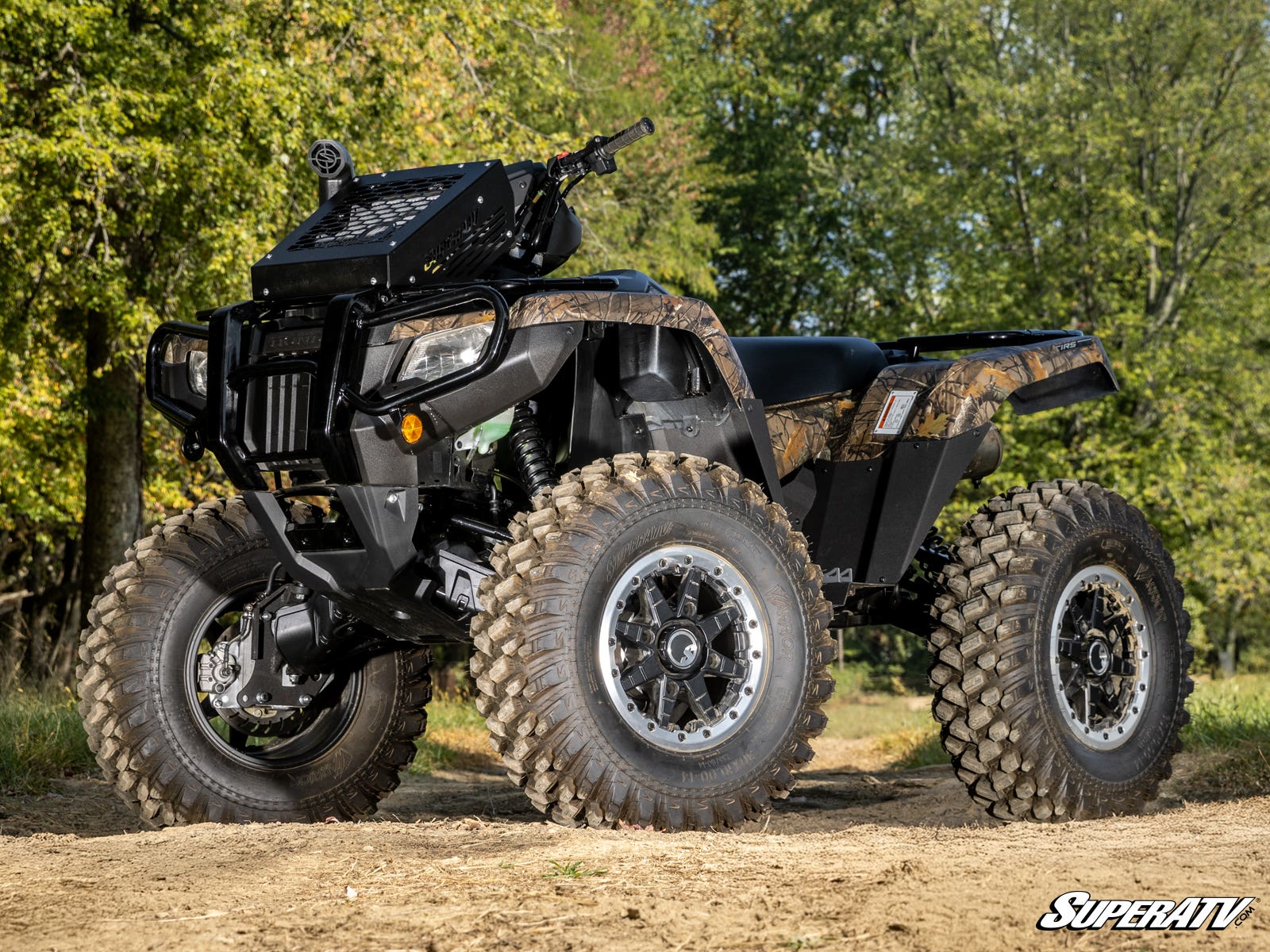

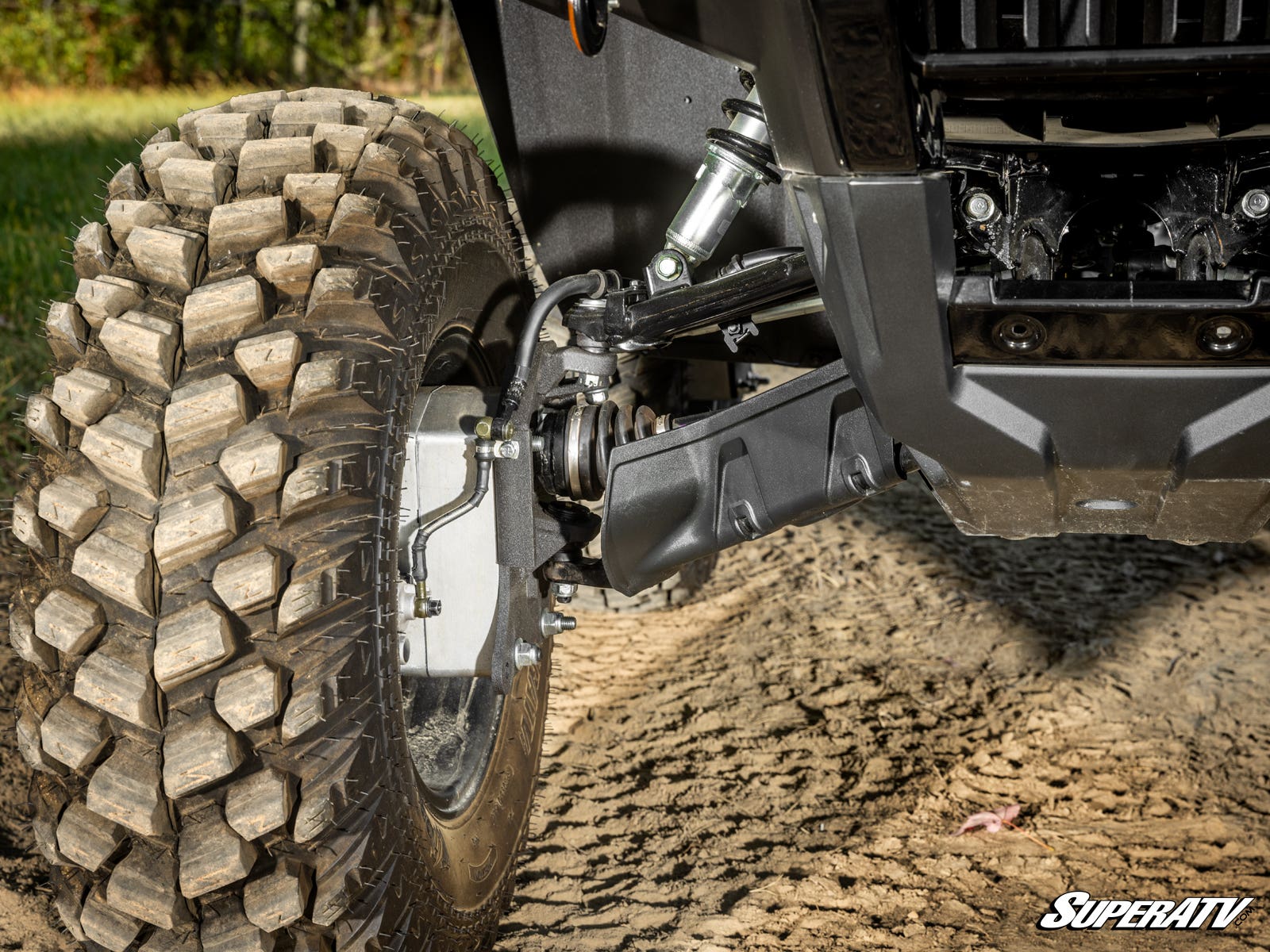

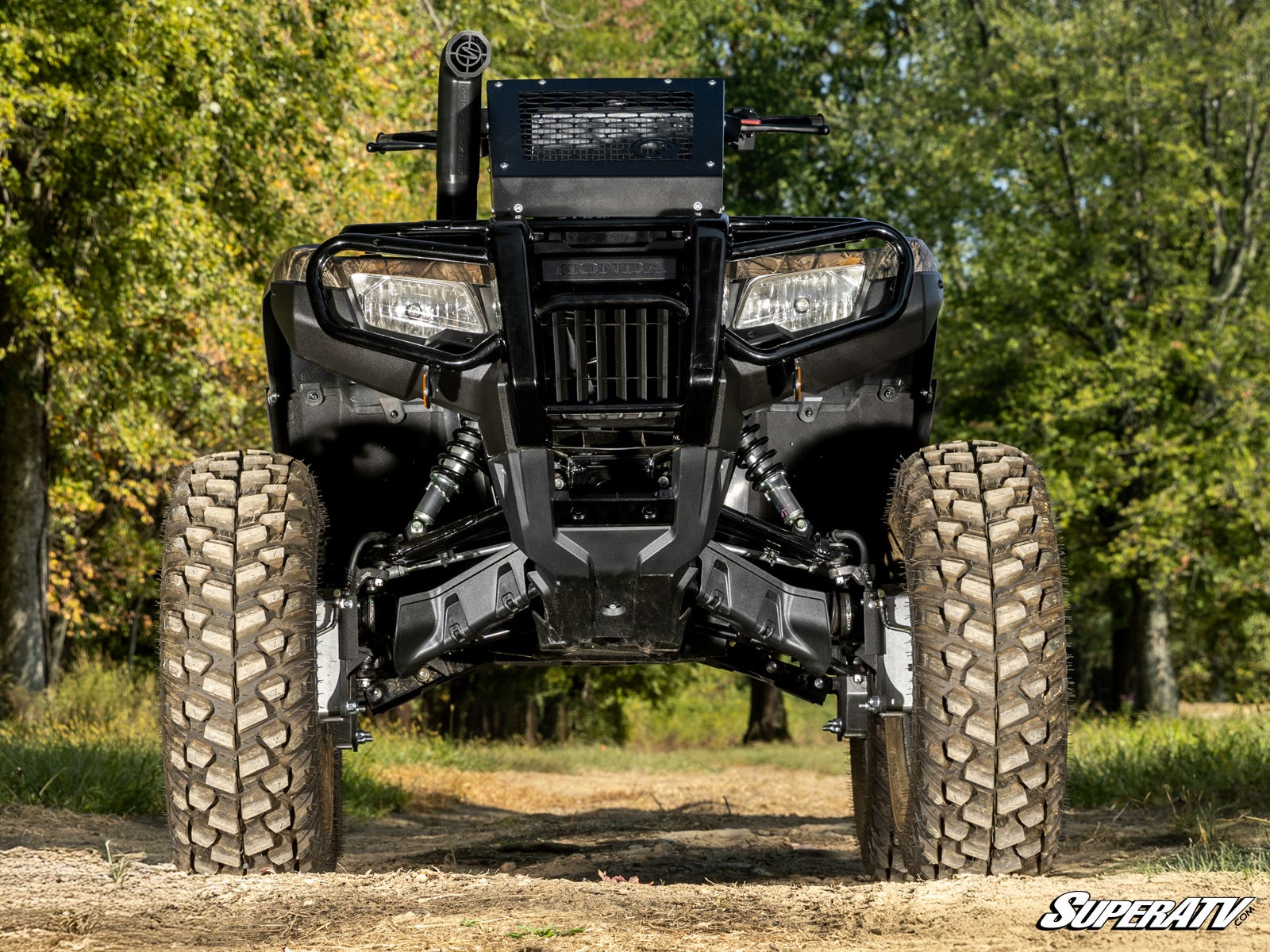

Honda Rubicon is a beast, but why not make it unstoppable? SuperATV’s 4” GDP
Portal Gear Lift gives you the power, clearance, and durability to conquer any
terrain. You get power and performance thanks to the lift and gear reduction
built into the hub. And with your choice of a 15% or 30% gear reduction, you
get the perfect balance of torque and speed. With GDP Portals, you’ll be ready
for anything.
Get the Power You Need
With two
gear reduction options, you’re in control. A 30% reduction delivers max torque
for hauling heavy loads and powering through deep mud. Stick with 15% if you
want a speed-friendly setup while still getting that extra boost in torque.
Drivetrain Protection Built In
More power
doesn’t have to mean more wear. GDP Portals put the gear reduction in the hub,
which means your drivetrain stays protected. Plus, the suspension maintains
factory geometry, so your axles run cooler. Plus, the gear reduction goes in
the hub, so your axles, differential, and transmission all benefit from it and
wear less.
Stronger, Smarter, Tougher
We don’t
cut corners—our portals are built to last. Your choice of cast or 6061 billet
aluminum housings, combined with Advanced steel backing plates, make them
tough enough for anything the trail throws at you.
- Our housings are
reinforced for gear retention and optimized for oil flow - Advanced
steel alloy backing plates are stronger than chromoly - Enhance with
Portal Blood—gear oil formulated for GDP Portals - There are no
gimmicks and no vents because vents do more harm than good—we know because we
tested them
Advanced Gaskets, Seals, and
Bearings
Our portals use:
- Advanced gaskets and O-rings
with excellent oil resistance and low deterioration rates - A sealed
input gear and double-lipped output seal - 100% sealing coverage
throughout so you can forget about oil leaks - Double-angular contact
output bearings to prevent premature wear - Roller idler and drive
bearings to maintain perfect gear meshing
Top-Rated
Customer Service
Still not sure exactly what you need? We’ve got
a dedicated team to help you make the right choice. Give us a call so we can
get the perfect set of portals in your hands today.
4”
Portal Gear Lift Includes:
- (4) Assembled portal hub boxes
complete with 9310 gears, seals, output shaft, gaskets, and thrust
bearings - (4) Universal hubs and precision-ground stainless steel
slotted rotors with lugs - (4) Specialized steel alloy backing
plates - (2) Steel caliper mounting plates
- (2) Caliper
mounting plate shims - Extended brake lines
- All required
hardware, including recessed castle nut socket
| Honda Rubicon Max Tire Size Recommendations |
|
|---|---|
| Tire Size | Required Suspension Setup with 4″ Portals |
| 26″ | Stock |
| 29″ | SuperATV Footwells |
| If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. |
|
| Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
|
Patent # 11,299,042
Patent # 11,318,787
FEATURE
- Available with billet or cast aluminum housing
- Cool, quiet,
precision-ground gears made from 9310 alloy billet steel - 1.5 in.
diameter 4340 hardened steel drive shaft - Housings use gaskets or
O-rings that don’t let anything through - Universal hub fits all major
bolt patterns - Gear reduction reduces stress on your drivetrain
- Lighter than the competition
Fitment
- Honda Rubicon 500 : 2015-2019
- Honda Rubicon 520 : 2020+
NOTE: Only compatible on machines with IRS
(Independent Rear Suspension)
Wheel Requirements
- 14” or larger wheel required
- Cannot exceed 5”
backspacing - Not compatible with dual beadlock wheels
- 1”
wheel spacers required on stock wheels
