Description
Take Your Ridge to the Next Level with GDP Portals
Turn

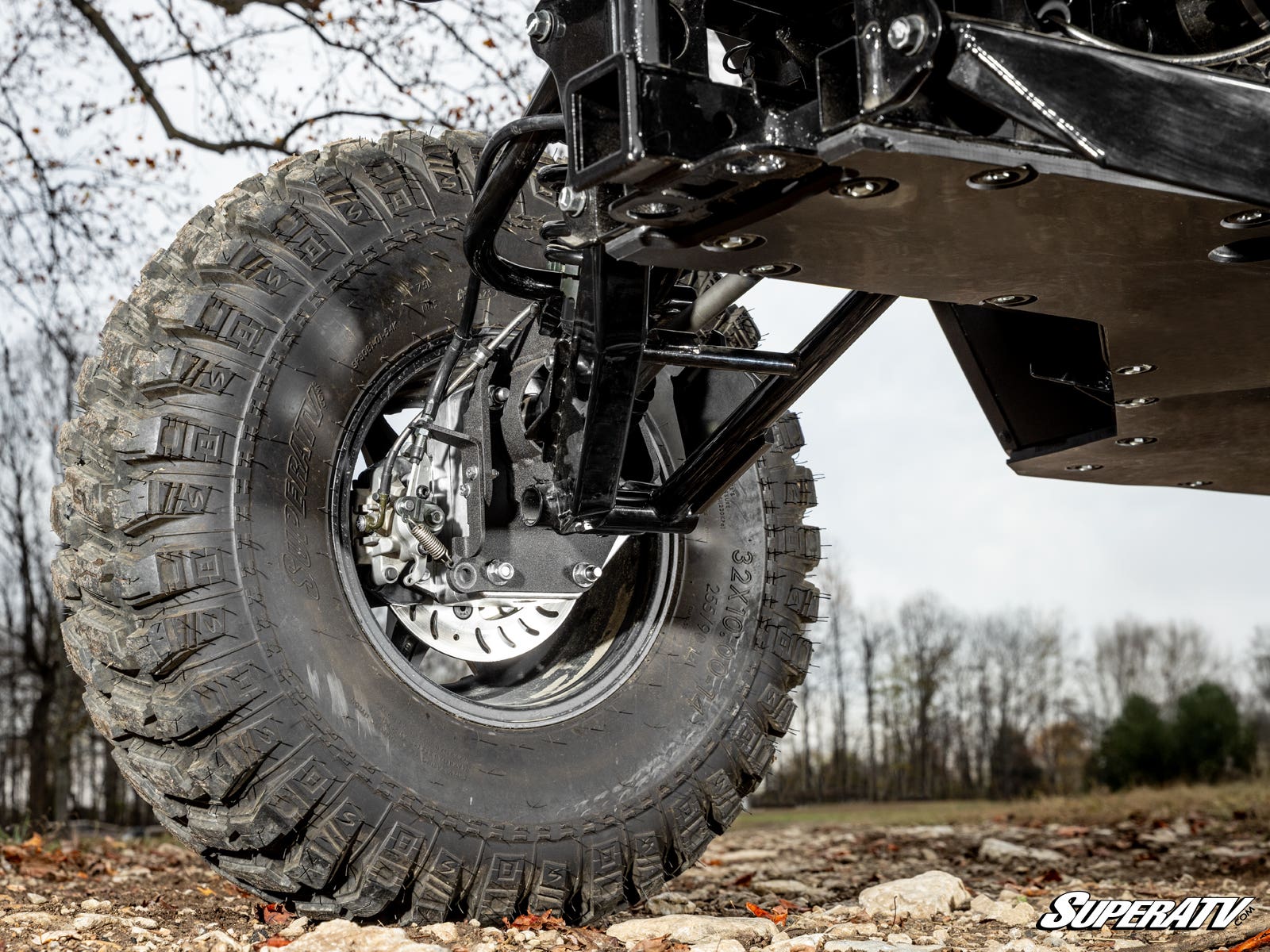

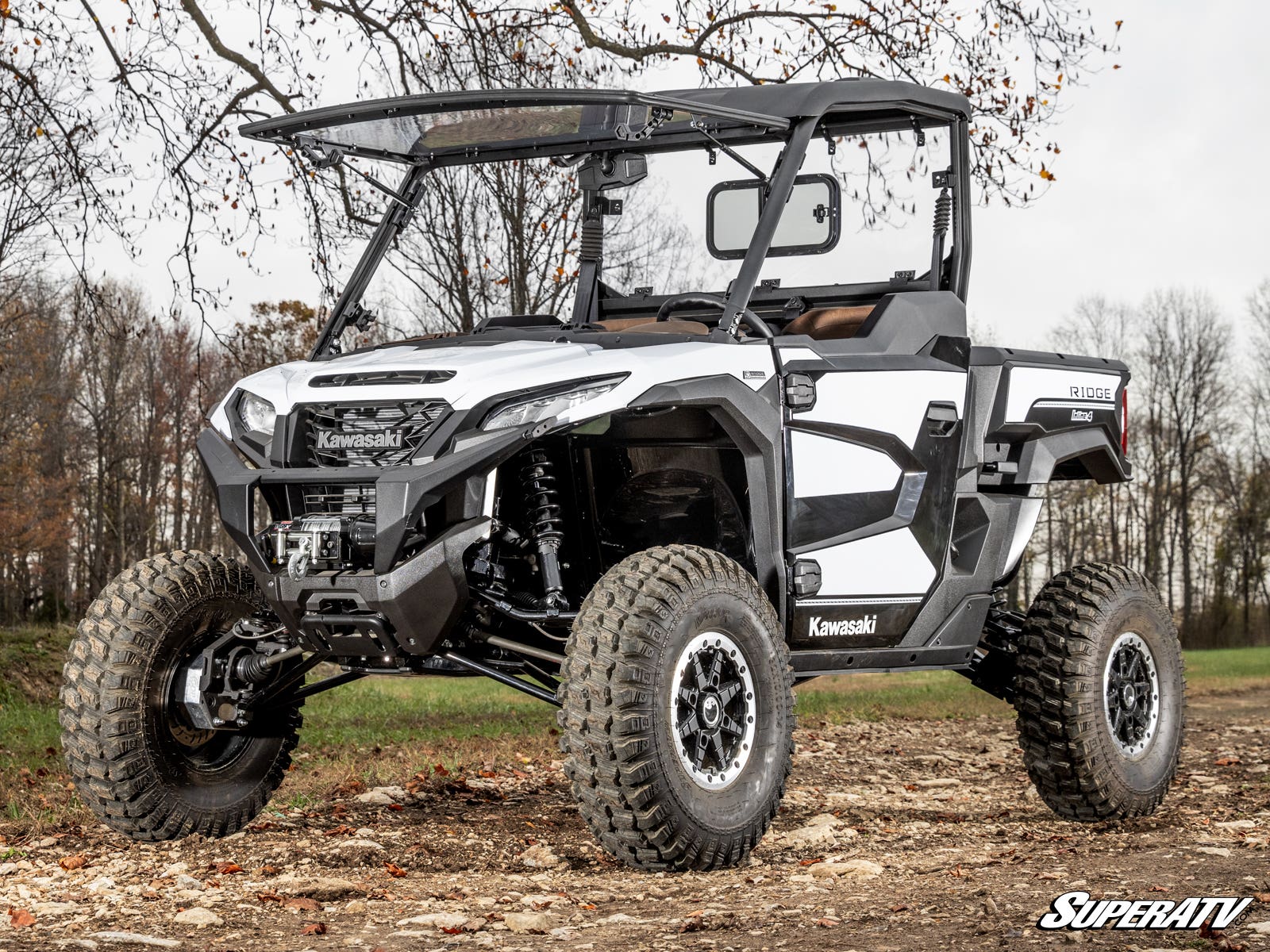

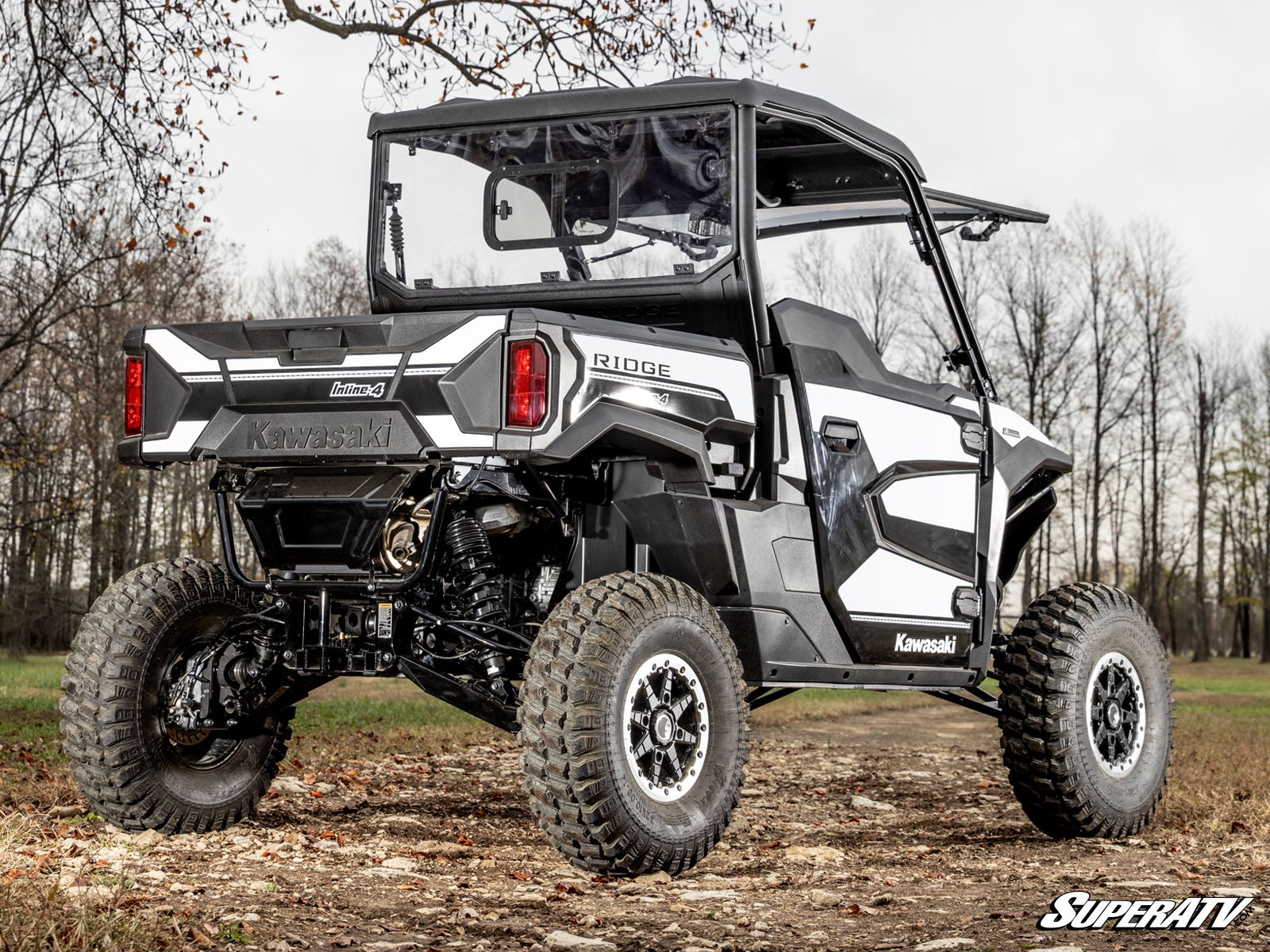

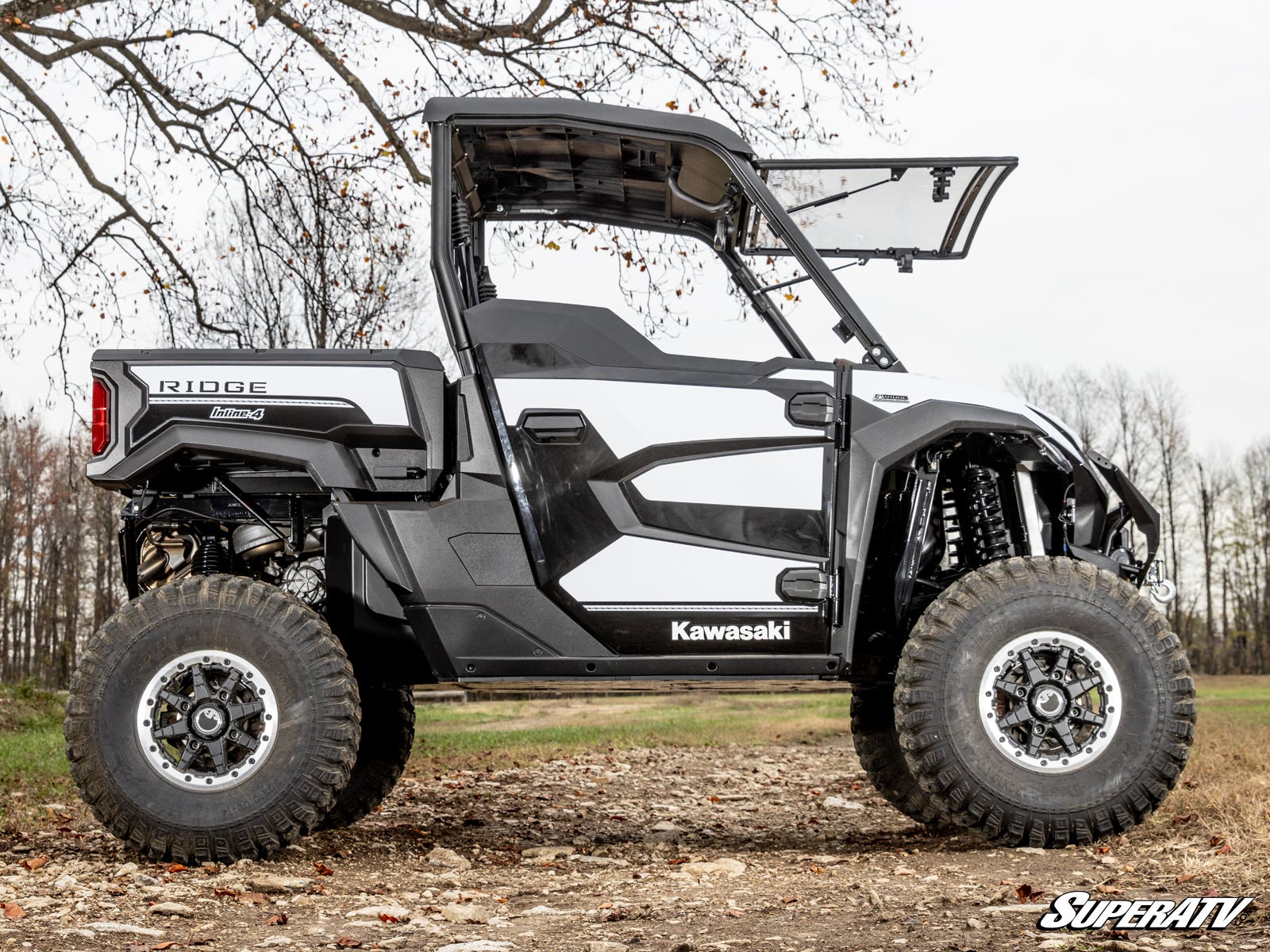

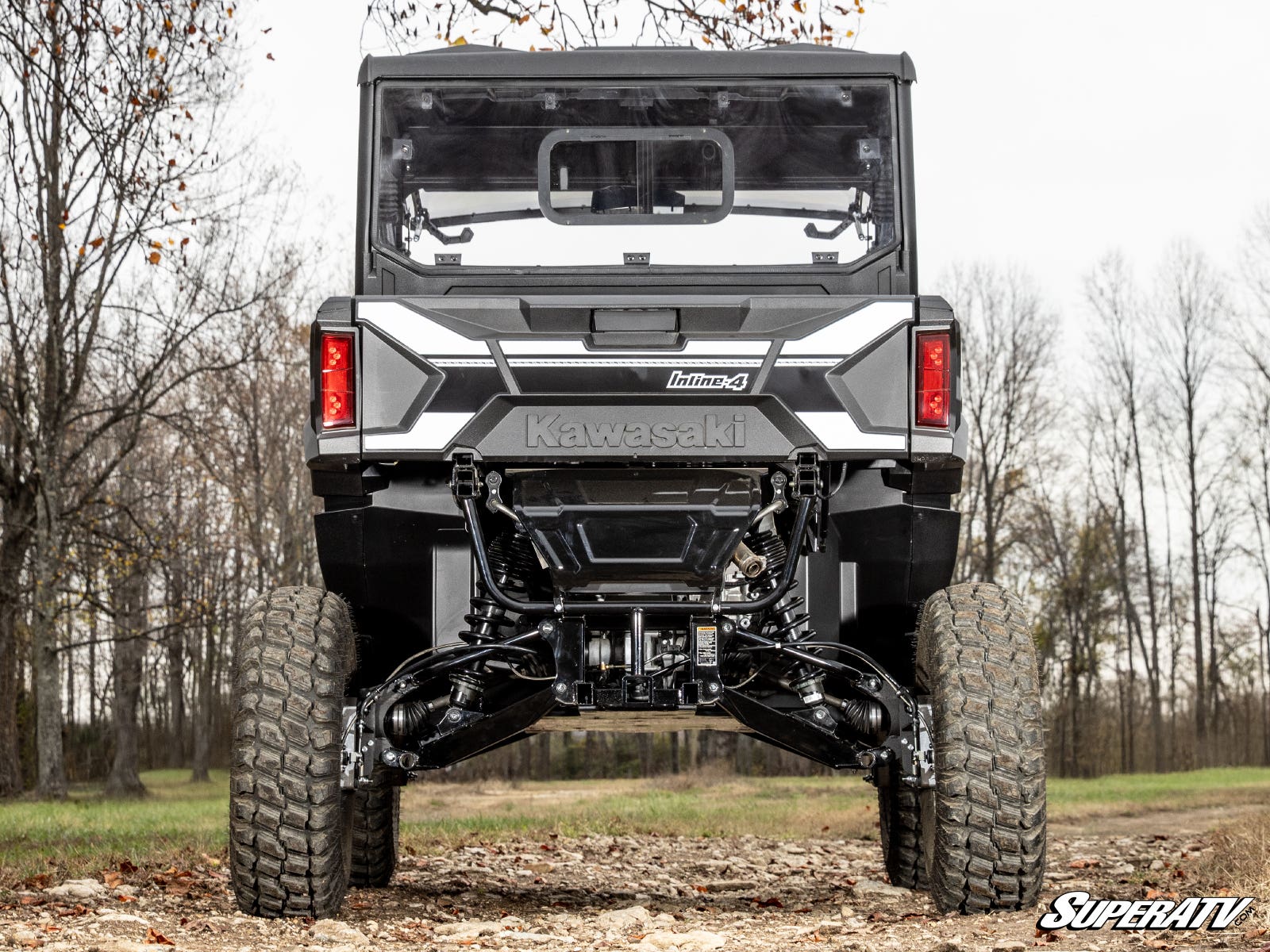

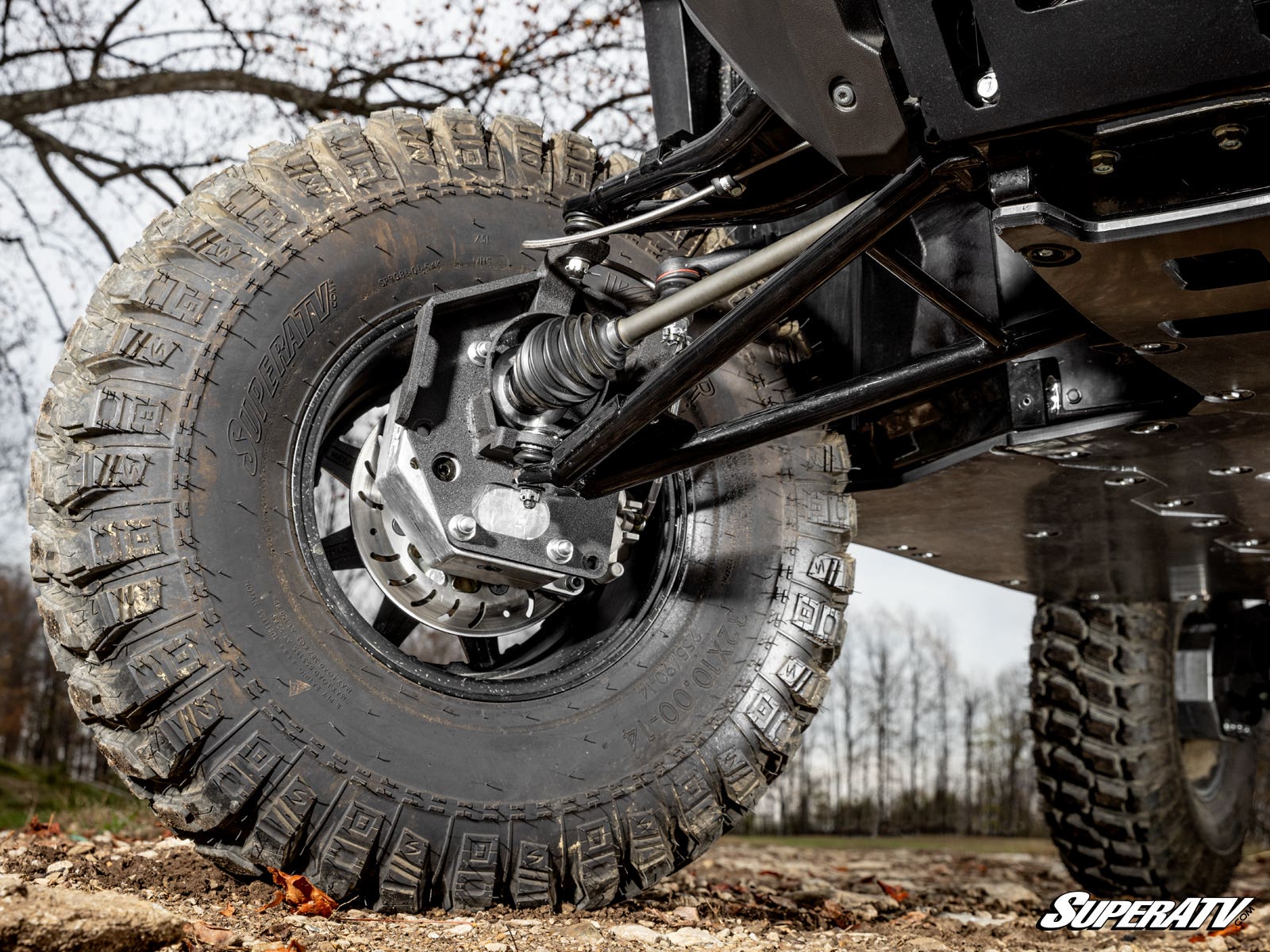

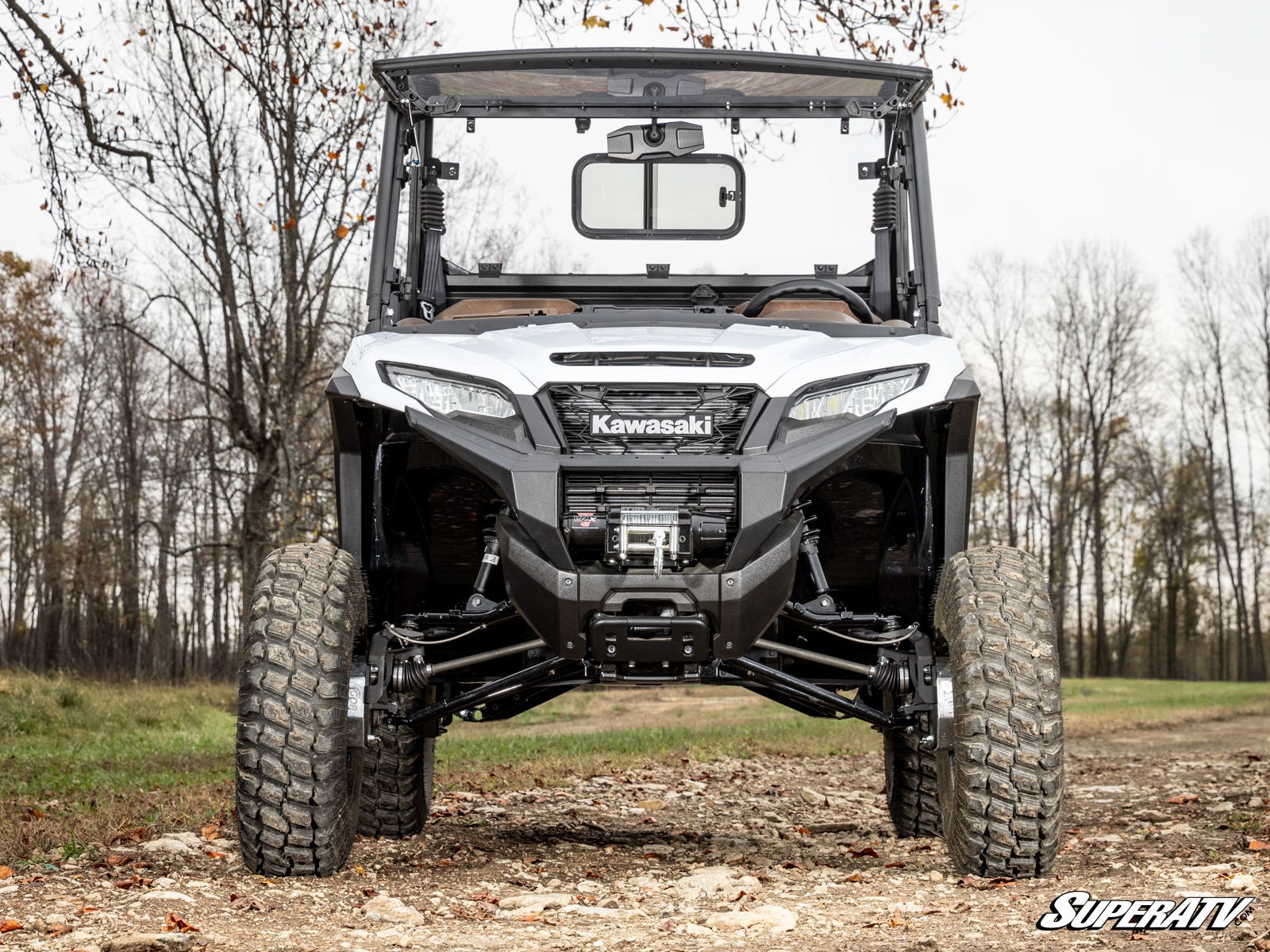

your Kawasaki Ridge into a true powerhouse machine with SuperATV’s 4” GDP
Portal Gear Lift. You get a lift and gear reduction—all in one package. We
offer them in a 15% and 30% gear reduction with a choice between cast or
billet housing. They don’t just give you the power to conquer tough
terrain—they also give you the ability to run up to 31” tires.
Tackle Any Terrain
A gear reduction makes a big
difference when it comes to tackling certain terrains. For faster speeds and
solid torque, choose a 15% gear reduction. If you’re running larger tires and
hitting rough trails, a 30% gear reduction would be your best bet.
Protect Your Kawasaki Ridge’s Drivetrain
GDP Portals
protect your drivetrain by putting the gear reduction in the wheel hub instead
of the transmission. It keeps your axles, prop shaft, differential, and
transmission safe by putting less strain on them. You’re getting ultimate
power without the worry of causing any damage.
Ultimate
Strength
We made sure that our GDP Portal Gear Lift would be as
strong as your Kawasaki Ridge. They come in a cast or billet aluminum housing.
Throw in our backing plates that are made of advanced steel alloy and you’re
getting the ultimate portals.
- Our housings are reinforced for
gear retention and optimized for oil flow - Advanced steel alloy
backing plates are stronger than chromoly - Enhance with Portal
Blood—gear oil formulated for GDP Portals - There are no gimmicks and
no vents because vents do more harm than good—we know because we tested
them
Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with
excellent oil resistance and low deterioration rates - A sealed input
gear and double-lipped output seal - 100% sealing coverage throughout
so you can forget about oil leaks - Double-angular contact output
bearings to prevent premature wear - Roller idler and drive bearings to
maintain perfect gear meshing
The Best Customer
Service in the Industry
Choosing portals that meet your needs
can be stressful. It might be hard to determine which gear reduction would fit
best. Our dedicated customer service team is available to help you make that
decision. Give us a call and we can set you up with the right portals.
4” Portal Gear Lift Includes:
- (4) Assembled
portal hub boxes complete w/ 9310 gears, seals, output shaft, gaskets, and
thrust bearings - (4) Universal hubs and precision-ground stainless
steel slotted rotors w/ lugs - (4) Specialized steel alloy backing
plates - (4) Steel caliper mounting plates
- (4) Shims
- (8) A-arm bushings
- (4) Steel sleeves
- (2) Parking brake
brackets - (2) Drive gear spacers
- Extended brake lines with
parking brake and brake cable brackets - All required hardware
including recessed castle nut socket
| Max Tire Size Recommendations for 4” Portal Gear Lift |
||
|---|---|---|
| Max Tire Size | Required Suspension Setup with 4″ Portals |
|
| Up to 31″ | Stock | If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator . | Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
FEATURE
- Available with billet or cast aluminum housing
- Cool, quiet,
precision-ground gears made from 9310 alloy billet steel - 1.5 in.
diameter 4340 hardened steel drive shaft - Housings use advanced
gaskets or O-rings that don’t let anything through - Universal hub fits
all major bolt patterns - Gear reduction reduces stress on your
drivetrain - Lighter than the competition
Fitment
- Kawasaki Ridge HVAC : 2024+
- Kawasaki Ridge Limited :
2024+ - Kawasaki Ridge Limited HVAC : 2024+
- Kawasaki Ridge
Ranch Edition : 2024+ - Kawasaki Ridge XR HVAC : 2024+
Wheel Requirements:
- 14” or larger wheel
required - Cannot exceed 5” backspacing
- Not compatible with
dual beadlock wheels
Additional information
| Portal Housing Material | Billet, Cast |
|---|---|
| Portal Gear Reduction | 15%, 30% |
