Description
Overhaul Your KRX 1000

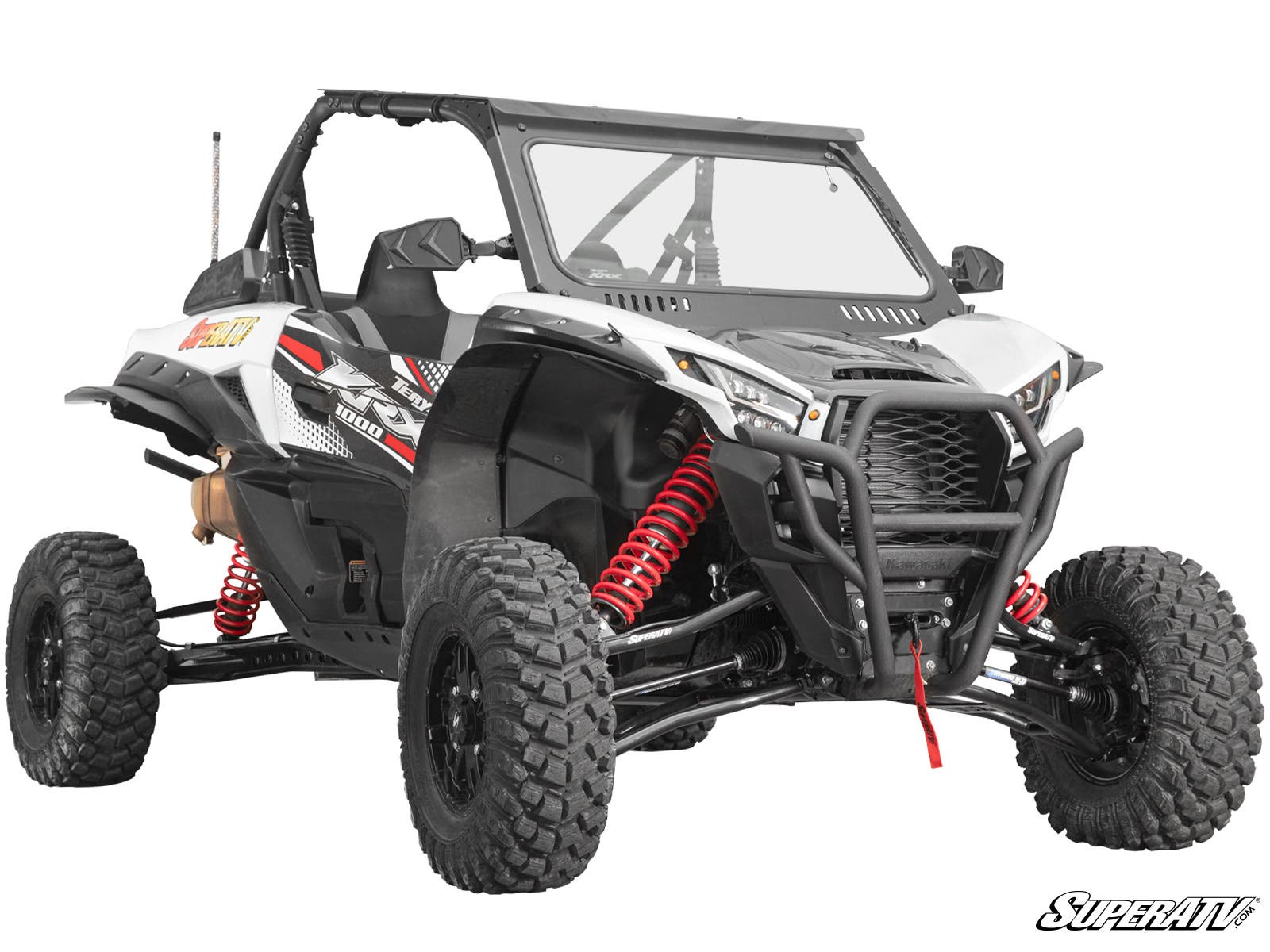

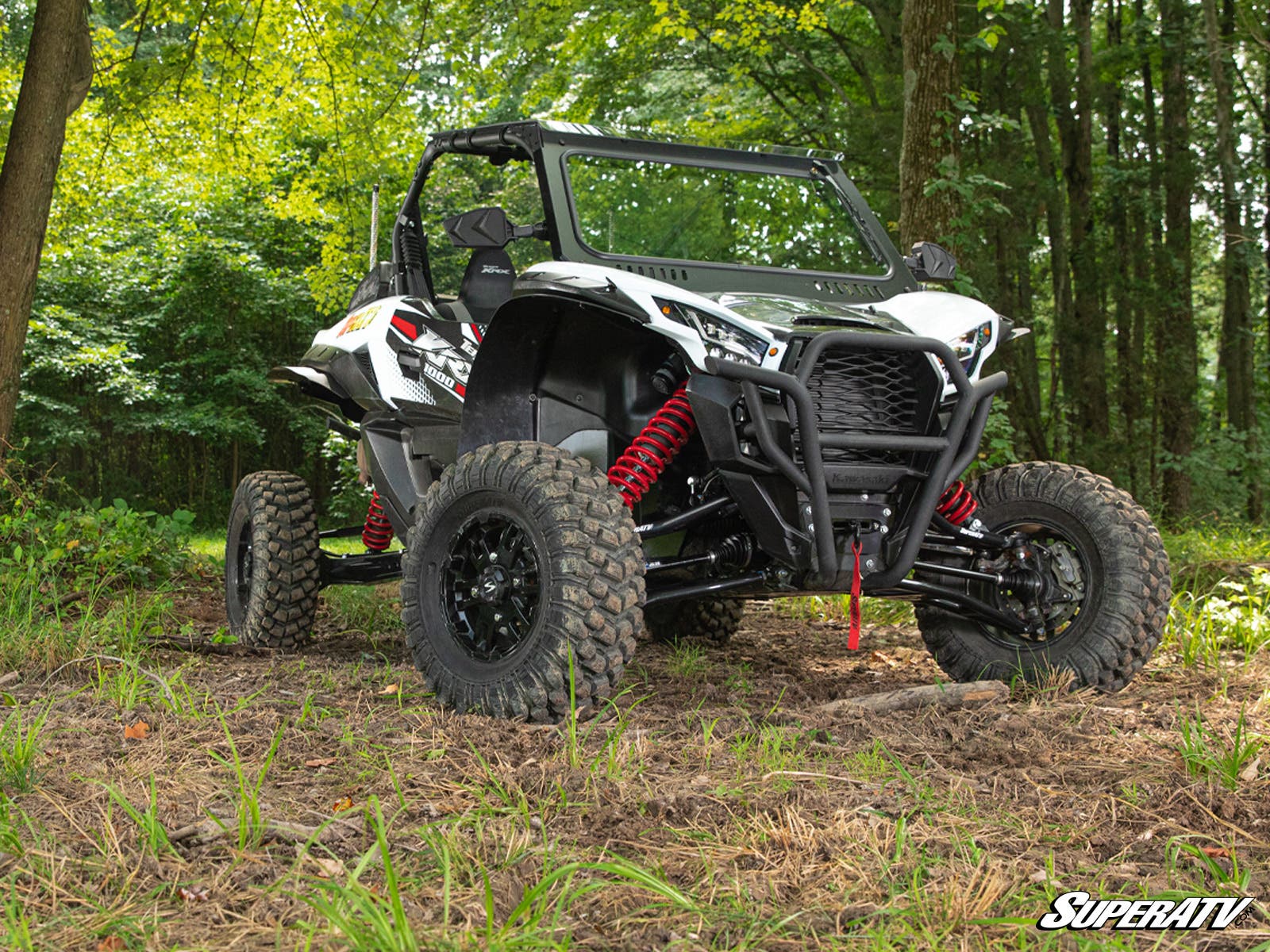

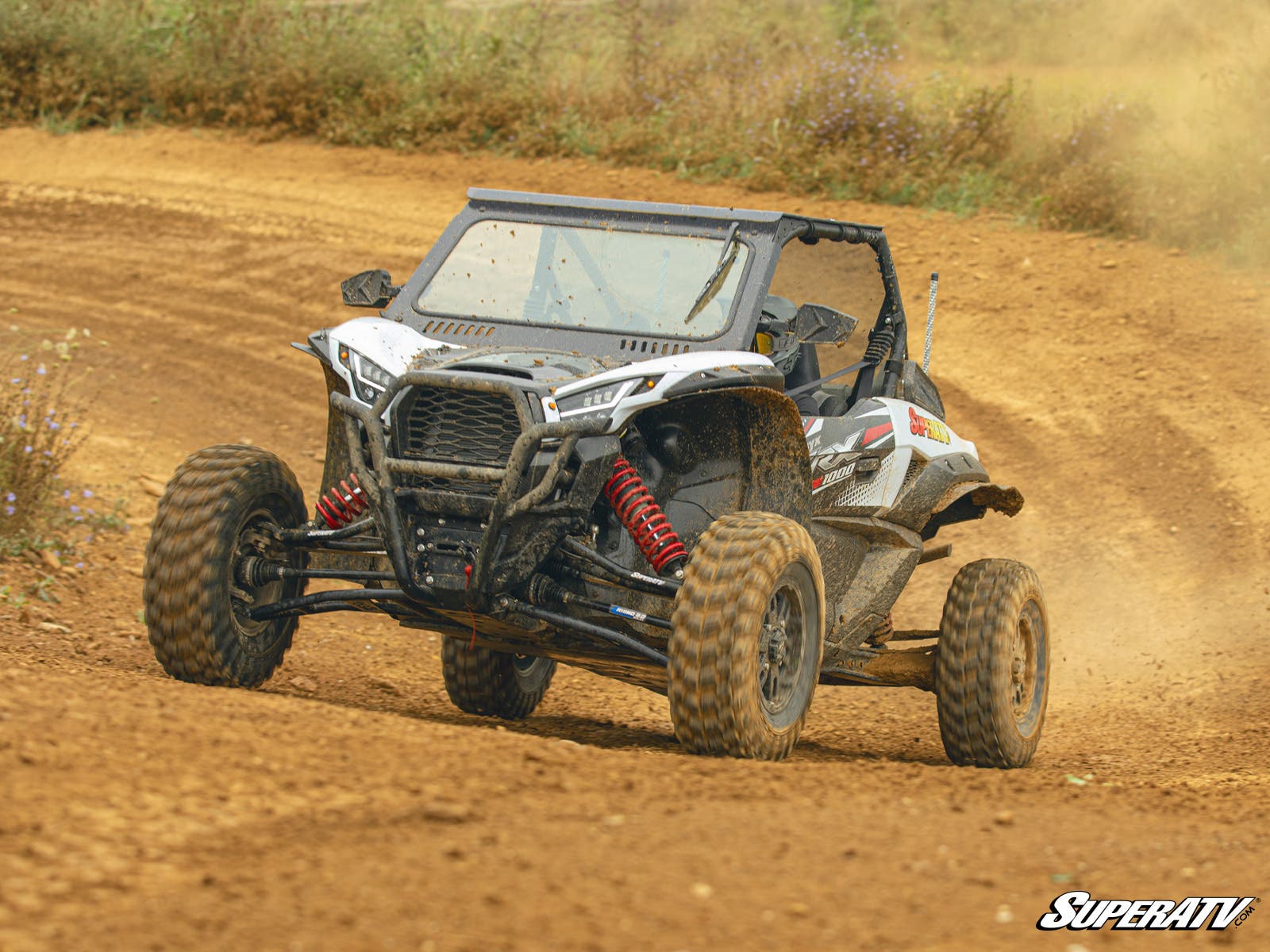

SuperATV’s 3” Long Travel Kit is
a total suspension replacement that makes your Kawasaki Teryx KRX 1000 wider
and more capable. With bulletproof suspension components, heavy-duty tie rods,
UHMW bushings, steel sleeves, and Rhino 2.0 Axles, it’ll feel like you’ve got
yourself a brand new side-by-side. This kit adds 3” to each side of your KRX,
increasing your width by 6” overall. It also makes room for tires as large as
34”. You’re left with a reinforced and gusseted suspension that’s capable of
handling abuse from the most gnarly trails.
Super-Strong
Suspension Arms

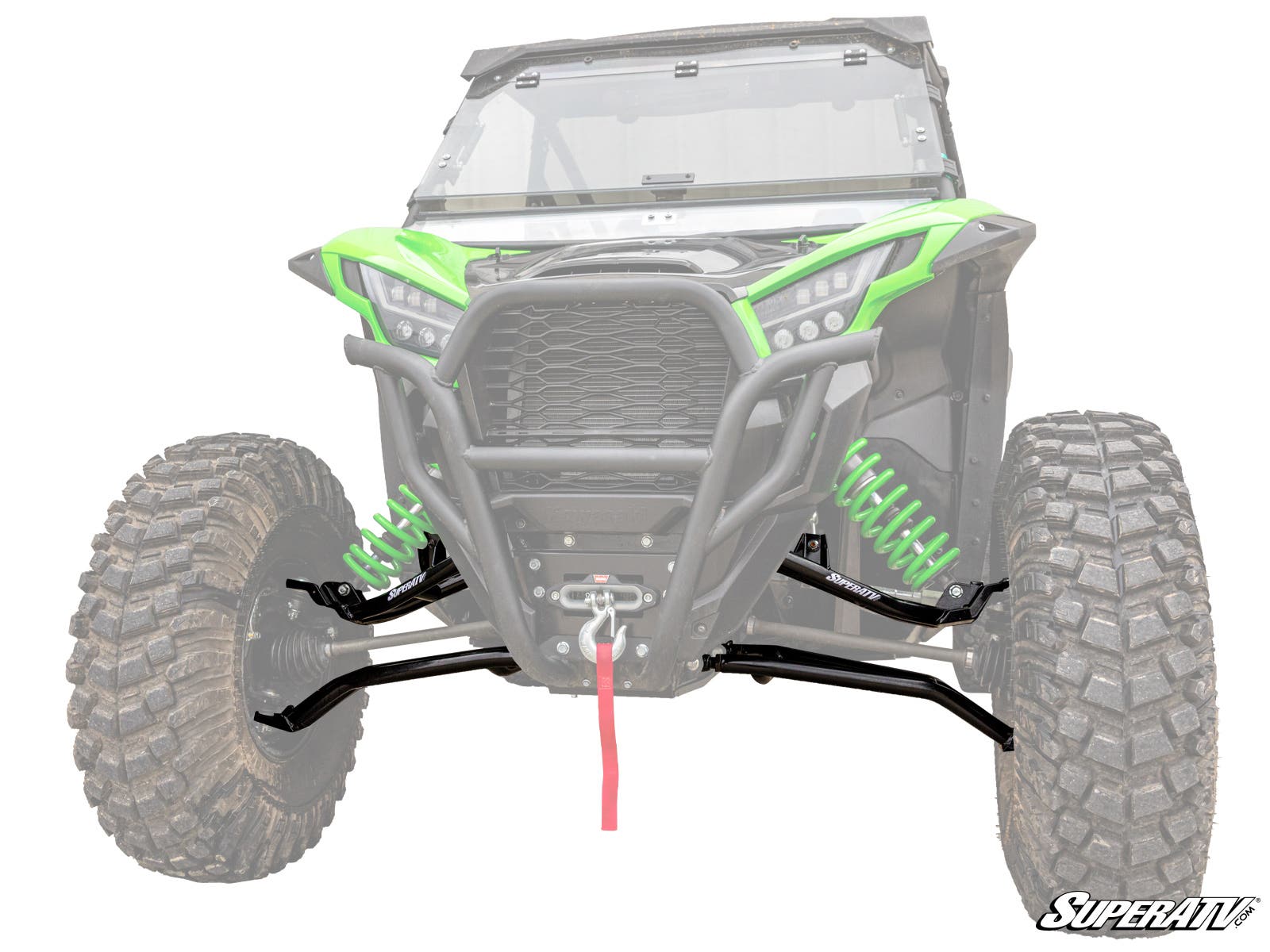

This Kawasaki Teryx long travel kit comes
complete with high-strength A-arms, high-clearance steel trailing arms, and

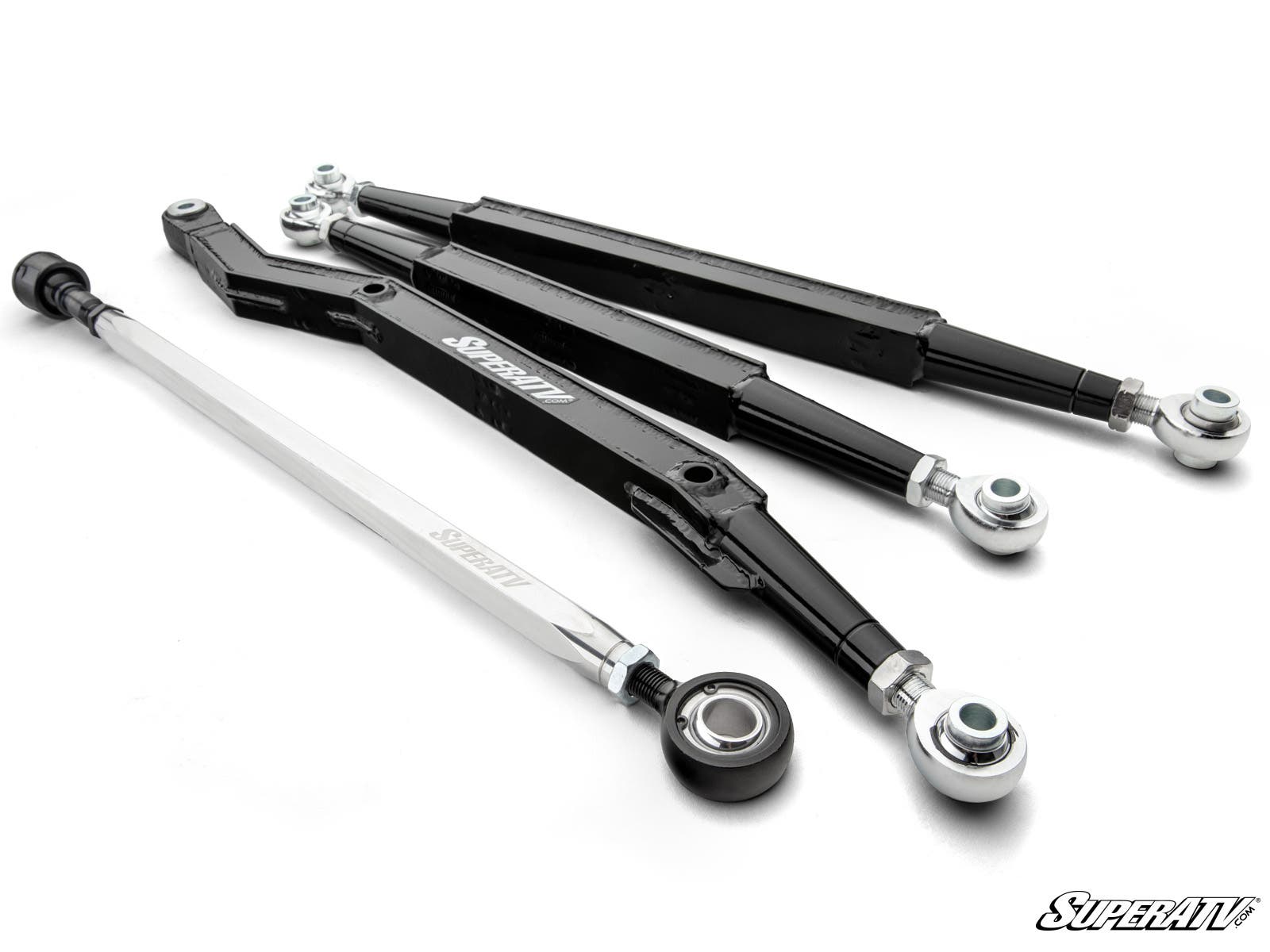

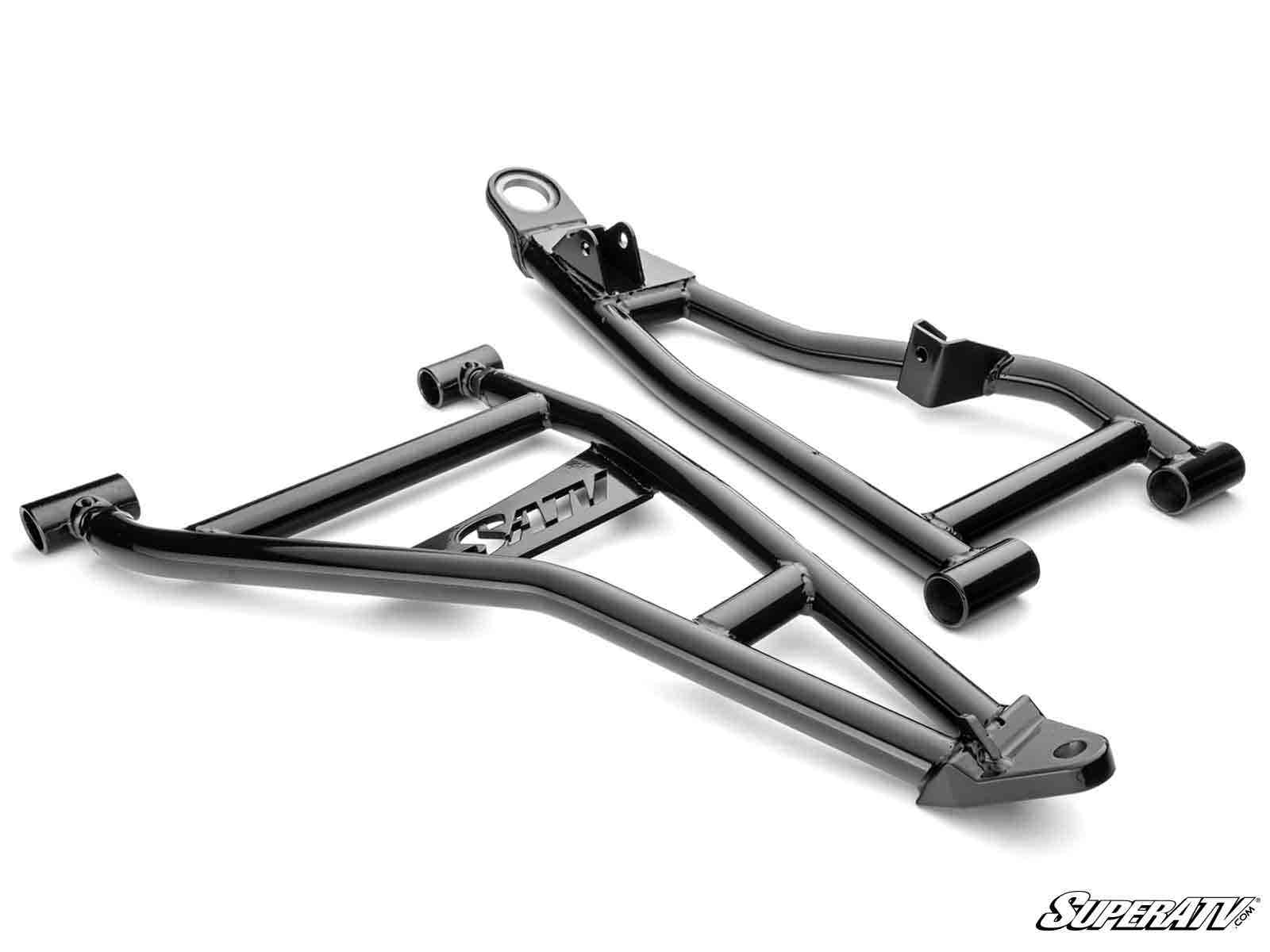

unbeatable boxed high-clearance radius arms. Our tubed A-arms feature fully
adjustable pivot blocks so you can dial in your camber for perfect ride
quality. The boxed radius arms, which are also adjustable, have hefty 5/8”

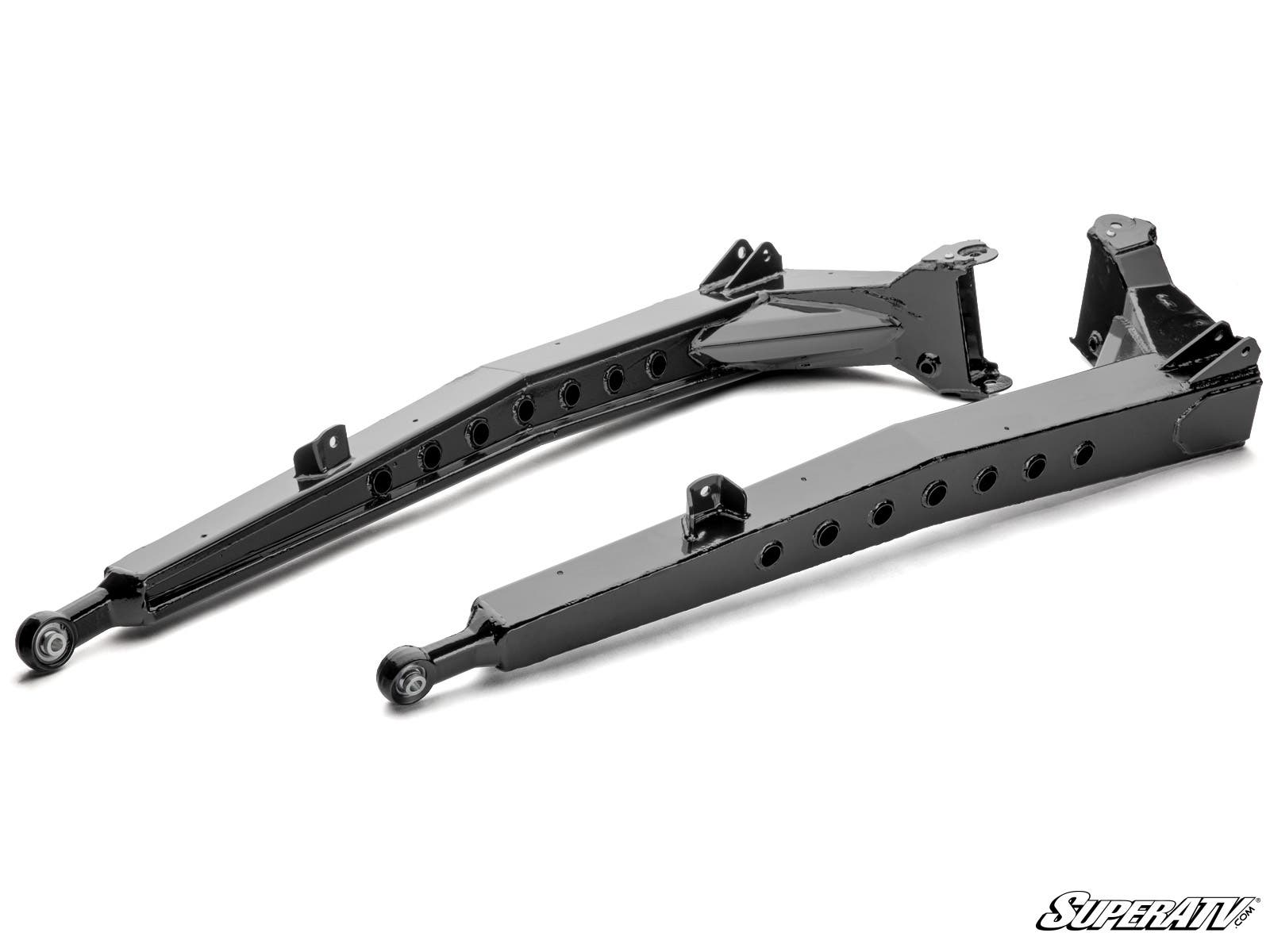

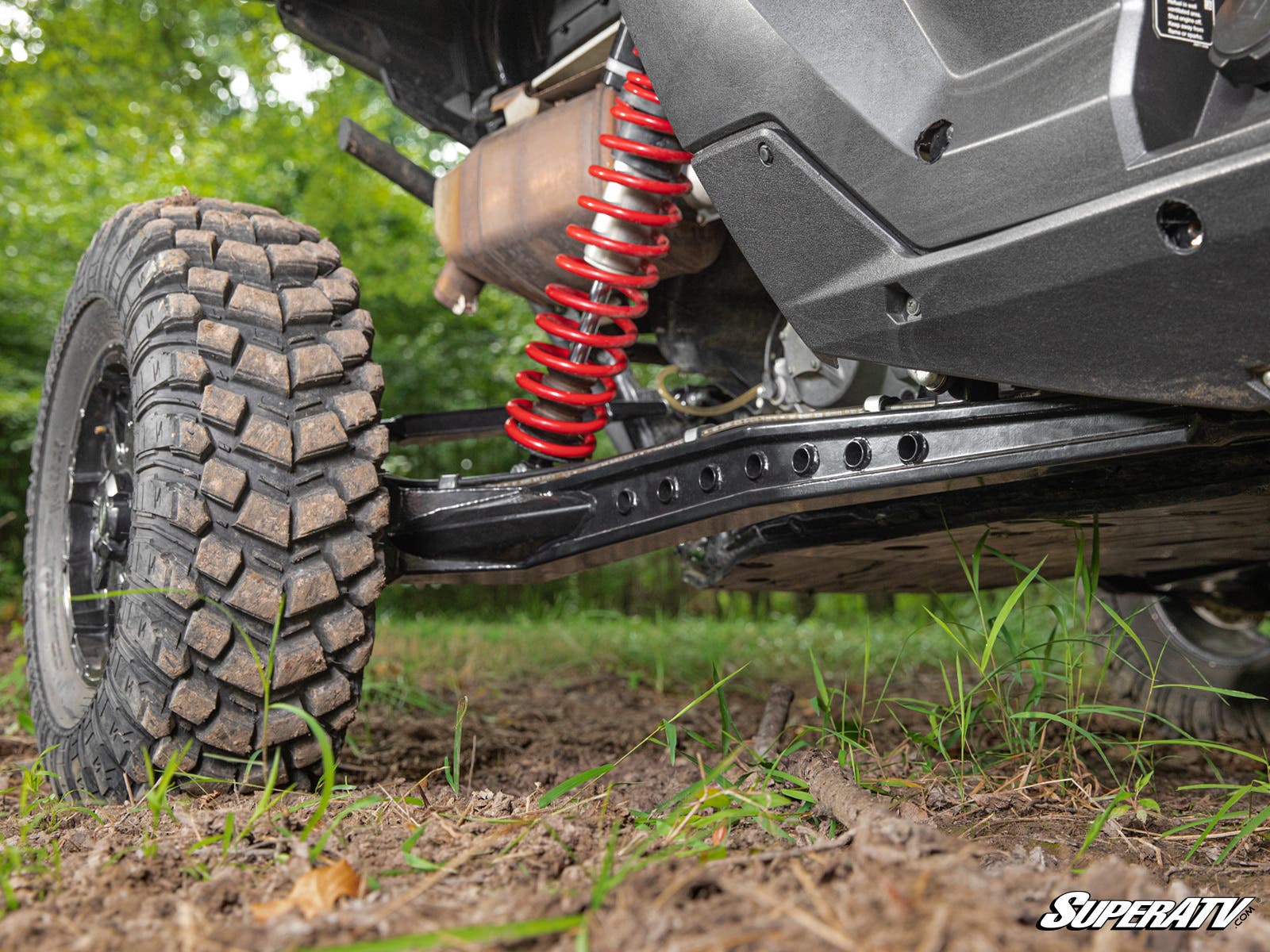

heim joints. Both are preadjusted to stock specs right out of the box. You
also get trailing arms that are made with 1/8” steel plating and internal
gussets for long-lasting durability. All suspension components have a bend for
additional ground clearance and are covered by an unbeatable lifetime
warranty.
Need Better Ball Joints? We’ll Install
Them!
This kit works with your stock ball joints, but you also
have the option to purchase our Heavy-Duty 4340 or Super-Duty 300M Ball Joints
when you check out. Adding an awesome set of ball joints is a no-brainer, but
what if we told you we’ll do all the work, too? Don’t worry about buying a
press, removing your old ball joints, and then pressing them back in. Buy our
ball joints and we’ll install them to your arms at no extra cost.

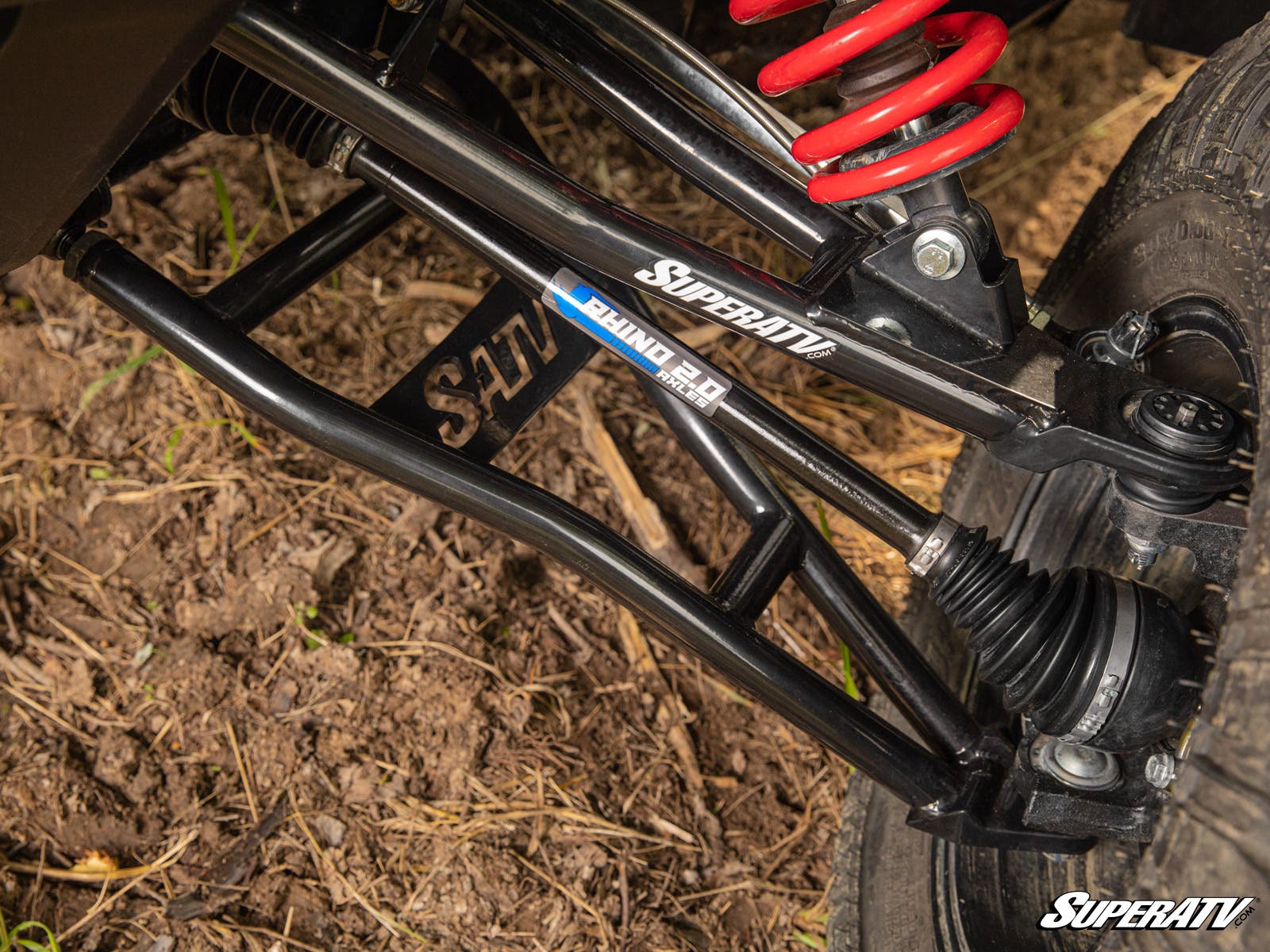

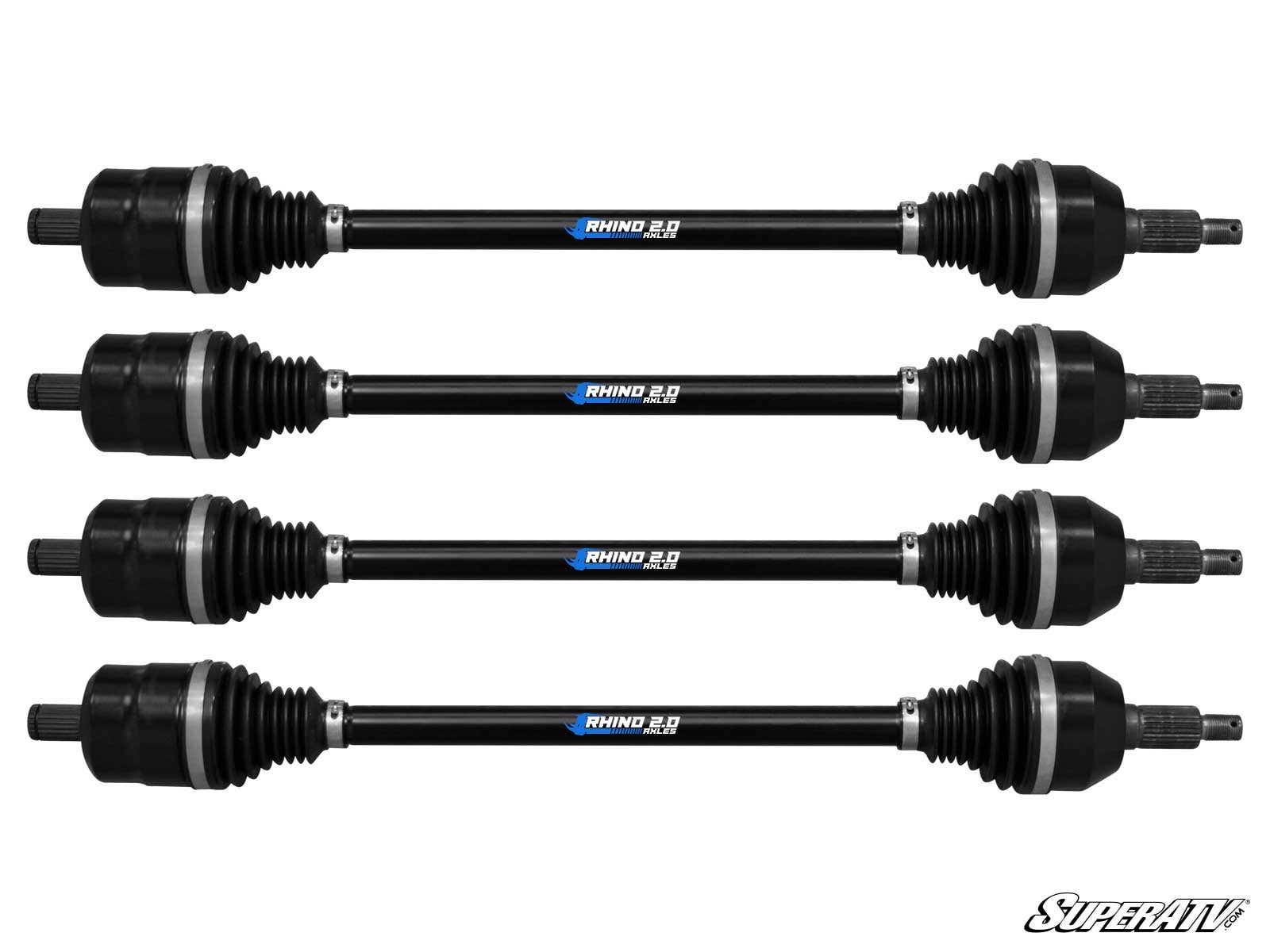

Rhino 2.0 Axles and Tie Rod Kit Included
No long travel
kit would be complete without a set of bulletproof Rhino 2.0 Axles. Their
maximized CV joints and 4340 chromoly steel deliver all the strength you need

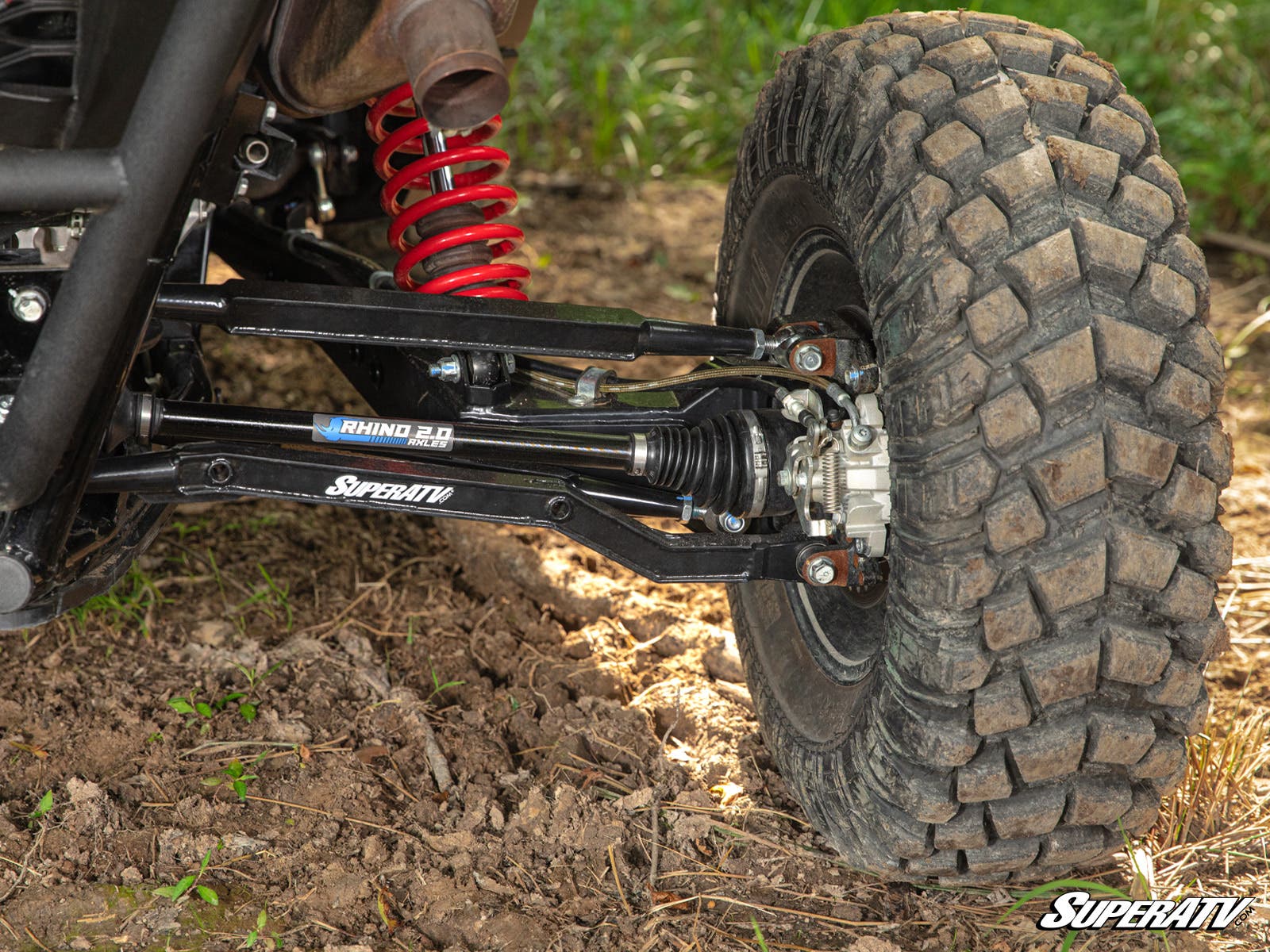

for hardcore off-roading. You also get a heavy-duty tie rod kit that features
6061-T6 billet aluminum shafts and a flashy hex design. Our tie rods give you
a stronger steering system while also adding head-turning good looks to your
KRX.
NOTE: Limit straps and track bars not
included. Kit utilizes stock ball joints.
| Kit Includes: |
|---|
| (4) High-clearance tubed A-arms |
| (2) High-clearance rear trailing arms |
| (2) High-clearance boxed radius arms |
| (4) Rhino 2.0 Axles |
| (2) Heavy-duty tie rods and tie rod ends |
| All required bushings and sleeves |
| Extended brake lines |
| All required hardware |
FEATURE
- Adds 3” to each side (6” overall)
- Fit up to a 34” tire
- Comes with everything you need to install and go
- Preadjusted
A-arms and radius arms for perfect camber
Fitment
- Kawasaki Teryx KRX 1000 : 2020-2022
Additional information
| Need Preinstalled Joints? | Heavy-Duty 4340 Chromoly Steel, I will do the work myself and reuse existing, Super Duty 300M |
|---|
