Description
Ready for Winter
Don’t hide your KRX under a tarp all
winter. Instead put it to work with SuperATV’s Kawasaki Teryx KRX 1000 Plow
Pro Snow Plow from SuperATV. The heavy-duty 72” blade has seven adjustable
plowing angles, making it easy to clear snow anywhere. This snow plow kit
secures to your machine with a fast bolt-on process and our quick-connect
system makes it easy to attach and remove the blade as needed. No matter what
the weather brings, SuperATV is here to make sure you’re ready for it.
Made for the Toughest Jobs
We use 10-gauge steel
for the blade’s body and 4-gauge for the cutting edge, giving you all the
strength you need. The cutting edge is made from an advanced steel alloy that
will keep you from getting hung up on hard-packed snow. And the powder-coated
mounting components prevent rust and early wear. Plus, the whole blade is
beefed up with reinforcement ribs to make sure it won’t buckle. And thanks to
the tilt-forward design and shock-absorbing springs, bumps and small obstacles
are no problem.
- 10-gauge steel blade
- 4-gauge leading
edge - Flip-forward design
- Two 4-gauge vertical ribs support
high-impact areas - 10-guage horizontal support reinforces the leading
edge
Convenient Adjustability
You’ll be
able to clear driveways and parking lots of any shape and size with this
winch-operated snow plow. It functions at seven different angles ranging from
0 to 30 degrees left and right of center. It also gives you adjustable tilt so
you can keep the shoes flat with up to 3” of lift. You can push snow exactly
the way each job demands, and this quick and responsive system will have it
done in no time.
- Seven adjustable plowing angles:
- 0°,
10°, 20°, & 30° left or right of center - 52° to 65° adjustable
attack angle - Height-adjustable skid shoes
Bolt-On Installation
Surprise snowstorms happen and it’s
nice to be prepared for them. That’s why we made sure installing this KRX 1000
snow plow is quick and easy. It bolts directly to your machine with no
drilling required. The mount is small enough to keep on all winter long, so
all you have to do when it’s time to plow is hook up the blade and get to
work.
Upgrade to Our Deluxe Accessory Kit
Add
our deluxe accessory kit to your winch for more convenience and functionality.
It includes side shields, plow markers, a deflector, and a plow angle
actuator. Our 3/16” steel side shields help keep your plowing line clean. The
23” plow markers make the edges of your plow visible. The 1/8” LDPE deflector
keeps snow from coming over the top of the blade. The plow angle actuator
controls the plow angle with a dash-mounted switch and an 1,800 lb.
actuator—stay warm in your cab and get the perfect plowing angle.
NOTES:
- A winch is required to operate this snow
plow. - At stock height, it is only recommended to lift the plow up to 25”
off the ground when running at a 30° angle.
Kit
Includes:
- 72” snow plow blade

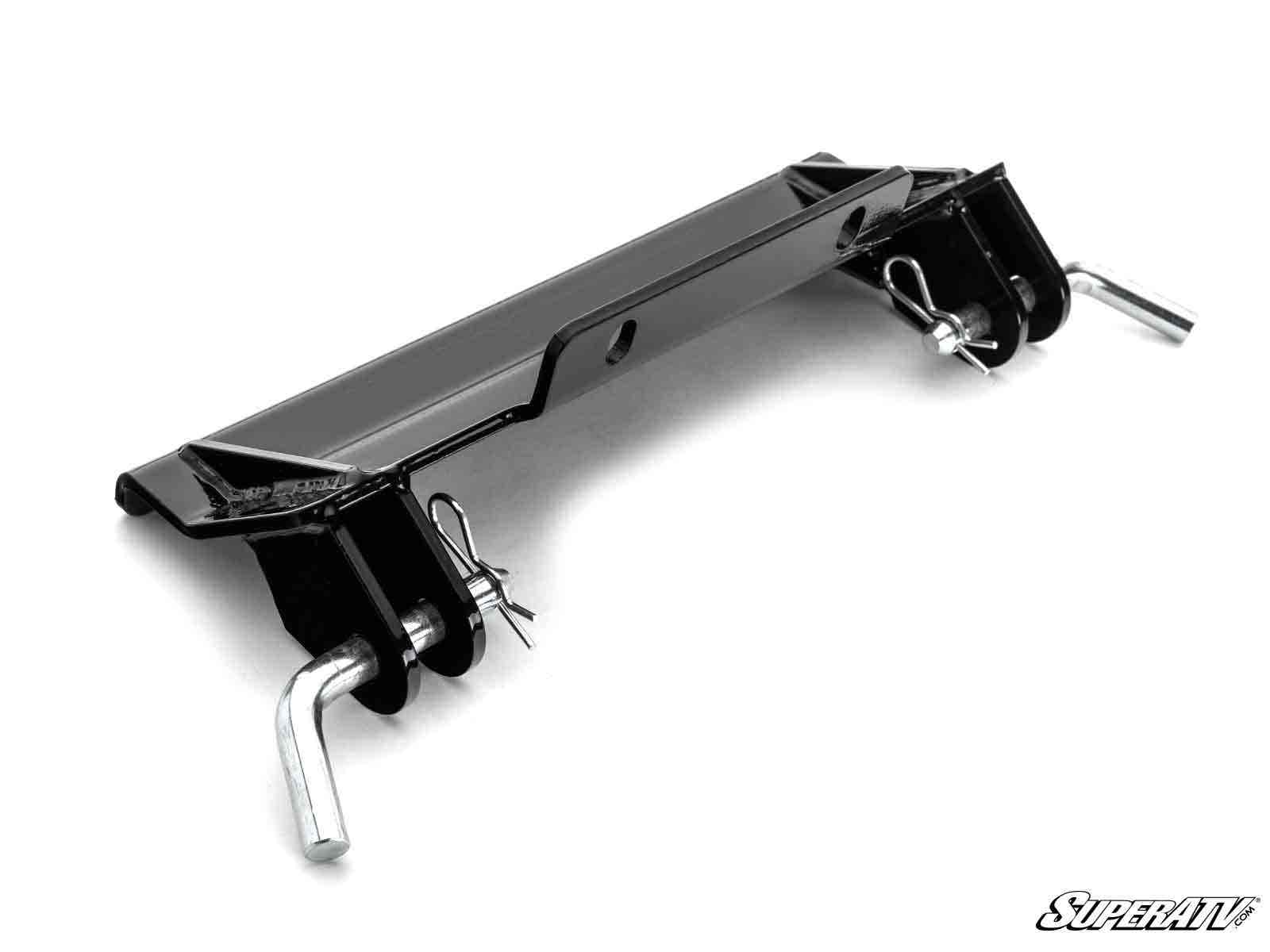

- Quick-connect snow
plow mount - Snow plow frame
Deluxe Accessory
Kit Includes:
- (2) Snow plow side shields
- Deflector
and marker kit - Plow angle actuator kit
FEATURE
- 10-gauge steel blade
- 4-gauge steel leading edge
- 72”
wide blade - 16.25” scoop
- Seven adjustable plowing
angles: - 0°, 10°, 20°, & 30° left or right of center
- 52° to 65° adjustable attack angle accommodates stock and lifted machines
up to 3” - Two 4-gauge vertical ribs support high-impact areas
- 10-guage horizontal support reinforces the leading edge
- Height-
adjustable skid shoes - Bolt-on quick-connect mount is easy to
install - Winch-operated frame
- Powder-coated mounting
components are weather resistant
Deluxe Accessory Kit
Features:
- Side shields use 3/16” steel plating
- Plow
markers are 23” tall - Deflector made with 1/8” LDPE
- Plow
angle actuator has a 7-7/8” stroke - Capable of 1,800 pounds of
force - Actuator turns plow blade up to 30 degrees left or right of
center - Sealed actuator uses IP67 rated solenoid and water-resistant
connectors - 3/4” chrome-plated cylinder shaft
- Easy to
install—hardware and color instructions included
Fitment
- Kawasaki Teryx KRX 1000 : 2020+
- Kawasaki Teryx KRX 4 1000 :
2023+
NOTE: Machines with more than 3” of lift
require our Plow Pro Snow Plow drop bracket: SPB-DB-001
