Polaris Ranger Full-Size 500 RackBoss 2.0 Rack and Pinion


SKU: Item-RP-P-RAN-09XP-002 Categories: , , Tag:
Add to wishlist


The Steering System You Need
You need a steering system
on your Polaris Ranger Full-Size 500 that doesn’t just keep you in control,
but also handles difficult terrain day after day without wearing out. The only
rack that can do that is SuperATV’s RackBoss 2.0 Rack and Pinion and its X24
Tech dual-bushing construction. It gets rid of the sloppy steering you have
with your old stock rack and reduces wear by over 50%. It’ll handle your
massive tires and wild rides for years.

Less Wear and Tear
with Our Dual-Bushing Design

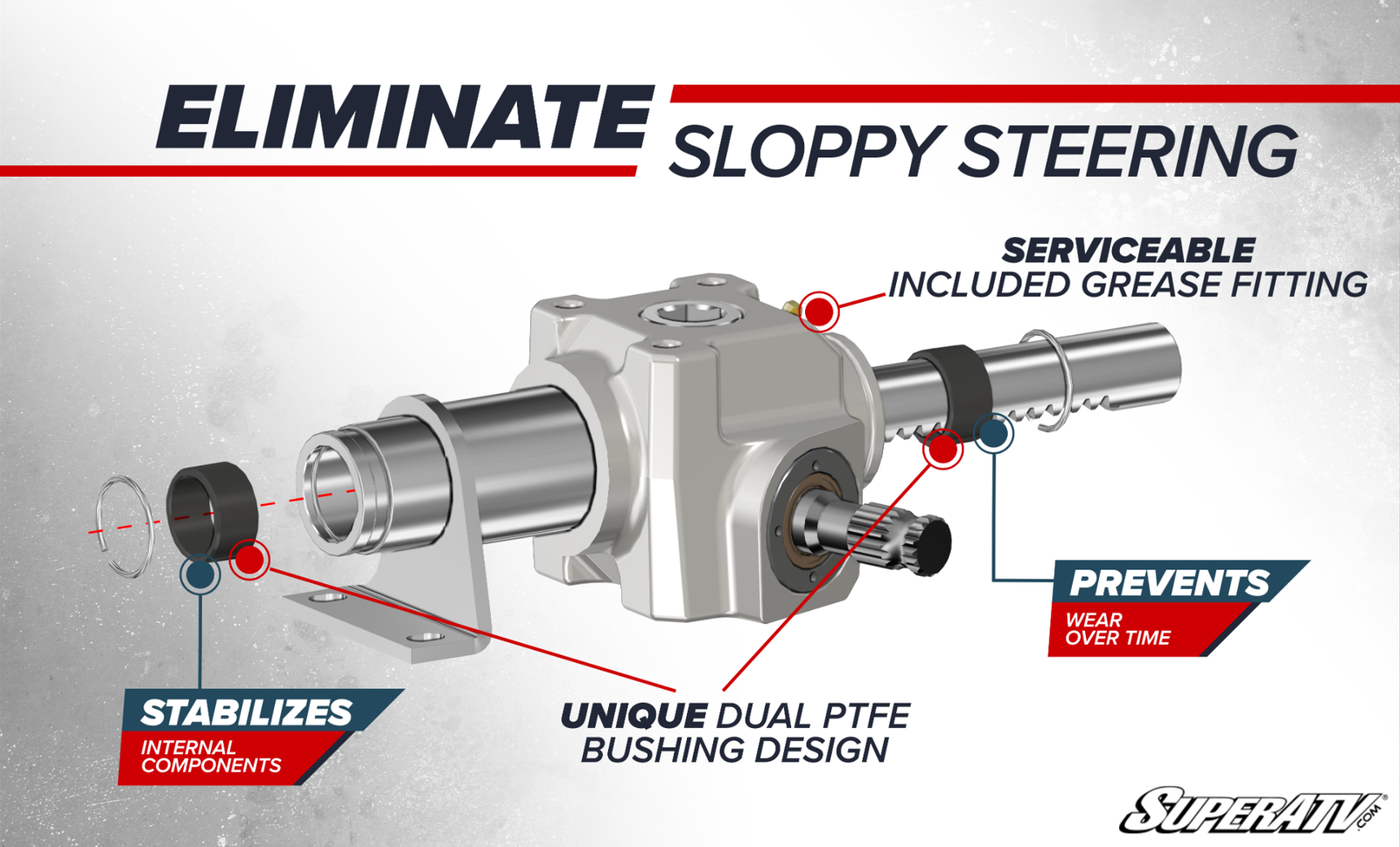

What makes RackBoss 2.0 so good at
preventing slop? It’s engineered with X24 Tech—heavy-duty PTFE bushings at
both ends of the rack that remove play from the internals. Reducing play also
keeps the tension spring nearly motionless. With little to no unintended
internal movement, this rack can turn massive tires through heavy rides and
hard hits and still stay in like-new condition for years longer than the next

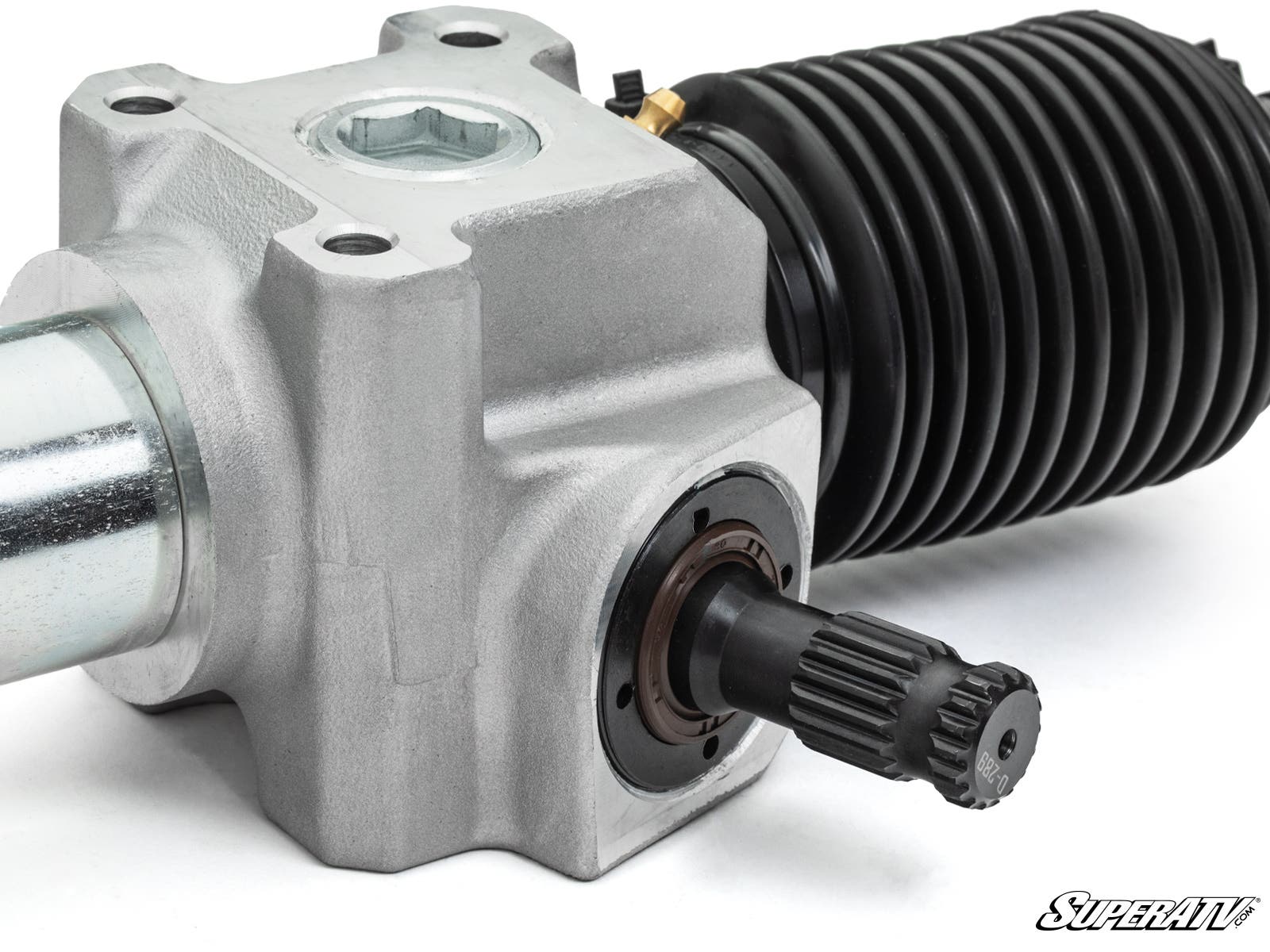

best rack. And with the built-in grease fitting, you can push fresh grease
through after you go deep in mud or water.

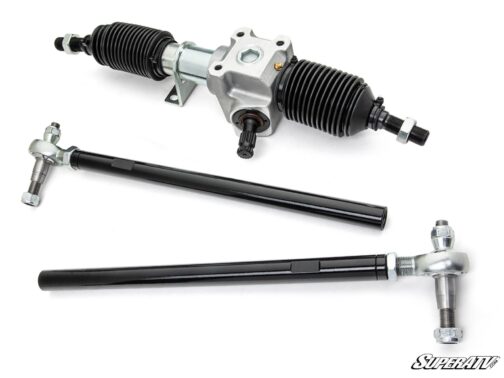

Swaged Tube Tie

Our steel swaged tube tie rods are lightweight but strong.
Our swaged design significantly improves the strength of the 7/8” diameter
tubing. They feature 16 mm inner ball and sockets along with 14 mm outer tie
rod ends to make sure the weak points are as strong as possible. They’re
perfect for the casual rider that’s tired of their stock performance.

Solid Steel Bar Tie Rods
Solid steel bar tie rods
give you the robust strength you need to ride through rough terrain. They’re
perfect for turning big tires through slop and navigating boulder fields. The

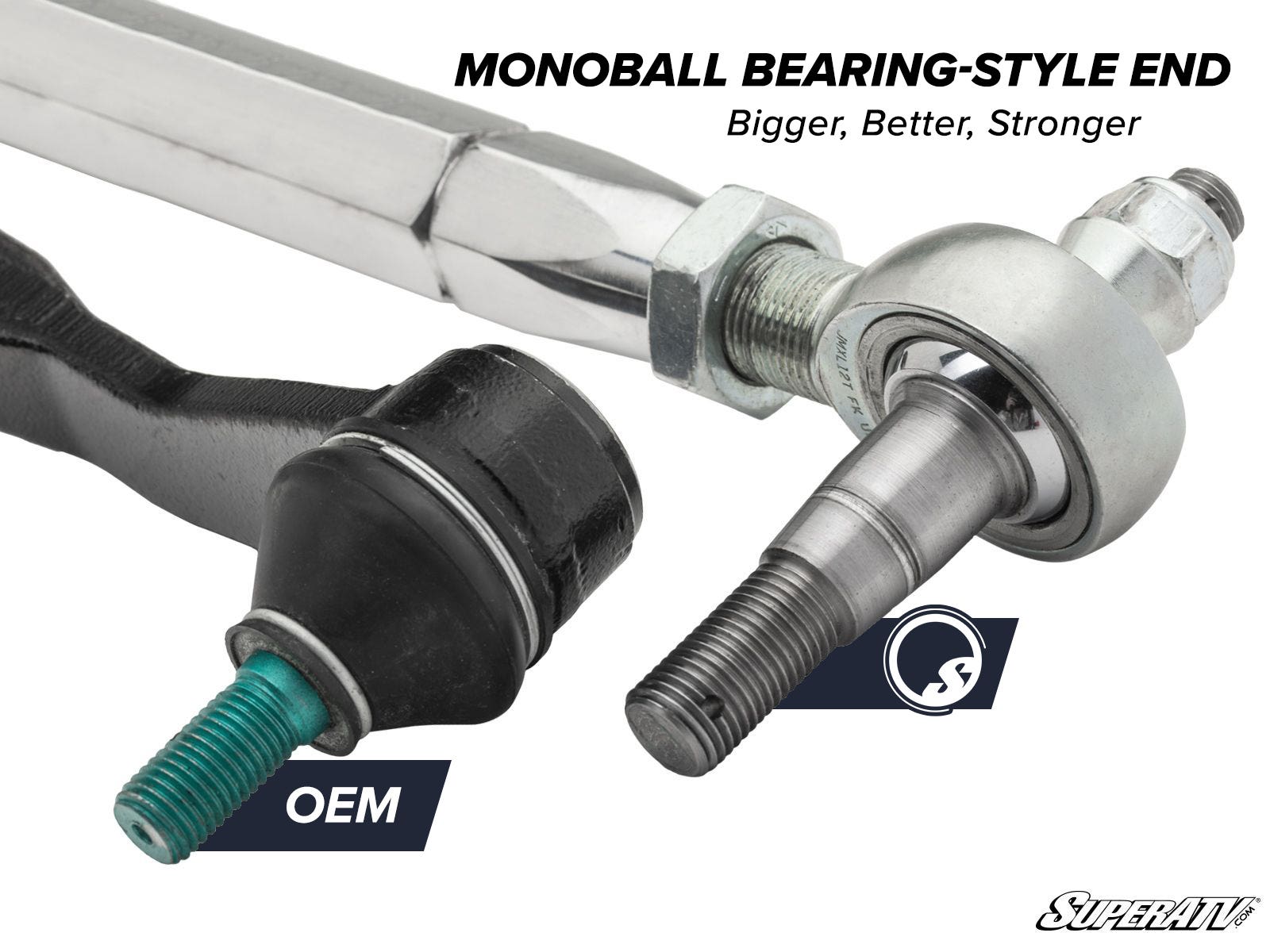

1” diameter steel rod is paired with beefy tie rod ends—3/4” outer tie rods
and rebuildable inner tie rods that use 3/4” rod threads and 16 mm rack
threads. All that strength lets you get wild.


  • Heavy-duty dual PTFE bushings:
    • Designed with X24
    • Prevents wear
    • Reduces slop
    • Improves overall
  • Available tie rod options:
    • Steel
      swaged tube
    • Solid steel bar
  • Solid steel tie rods
    • 3/4” outer tie rod ends
    • Rebuildable inner tie rod
      ends that use 3/4” rod threads and 16 mm rack threads
  • Swaged
    tube tie rods use:
    • 14 mm outer tie rod ends
    • Rebuildable
      inner tie rod ends that use 14 mm rod threads and 16 mm rack threads
  • 65% larger housing than stock
  • Over 50% less wear than OEM
    after 15,000 cycles
  • Grease fitting for rack gears


  • Polaris Ranger 500 Full Size : 2009-2010

OEM Part #:


Additional information

Tie Rod Type

Solid Steel Bar, Steel Swaged Tube
