Description
Put Your Ranger to Work
Packing up your Polaris Ranger
Midsize 570 for the winter is a big mistake. Instead, get SuperATV’s Plow Pro
Snow Plow and put your Ranger 570 to work. When snow piles on, this 72” blade
with adjustable plowing angles will make short work of it. The mount bolts on
fast and uses a quick connect so it’s easy to attach and remove your blade
right when you need it. It’s the best way to do winter.
Built to Last
Every Polaris Ranger 570 midsize snow plow
blade takes a beating. That’s why we built ours like a tank. The blade is made
with 10-gauge steel, and the cutting edge uses a 4-gauge advanced steel alloy.
With reinforcing ribs on the back, it’s made to scrape through hard snow and
ice winter after winter. It even has shock-absorbing springs and a tilt-
forward design so that curb you didn’t see won’t break you down. Plus, the
whole thing is powder coated for year-round corrosion resistance.
- 10-gauge steel blade
- 4-gauge leading edge
- Flip-forward
design - Two 4-gauge vertical ribs support high-impact areas
- 10-guage horizontal support reinforces the leading edge
Easily Adjustable

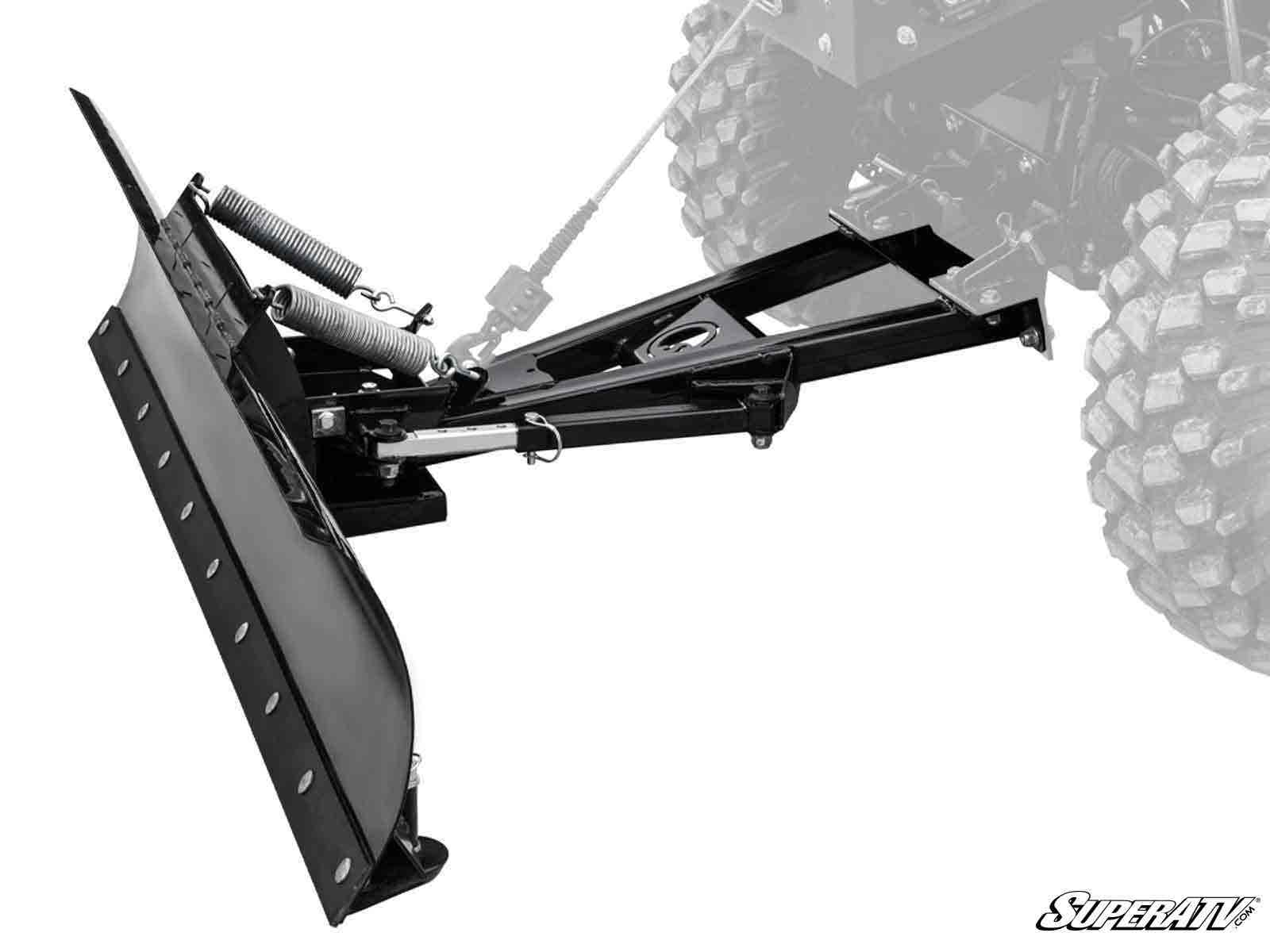

With seven operating angles between 0
and 30 degrees, you’ll have no problem getting the right angle to clear your
driveway. It’s easy to change your angle anytime, and the winch-operated blade
moves smoothly to make plowing go faster. Plus, you can adjust your tilt angle
to accommodate up to a 3” lift.
- Seven adjustable plowing angles:
- 0°, 10°, 20°, & 30° left or right of center
- 52° to 65°
adjustable attack angle - Height-adjustable skid shoes
Quick Installation

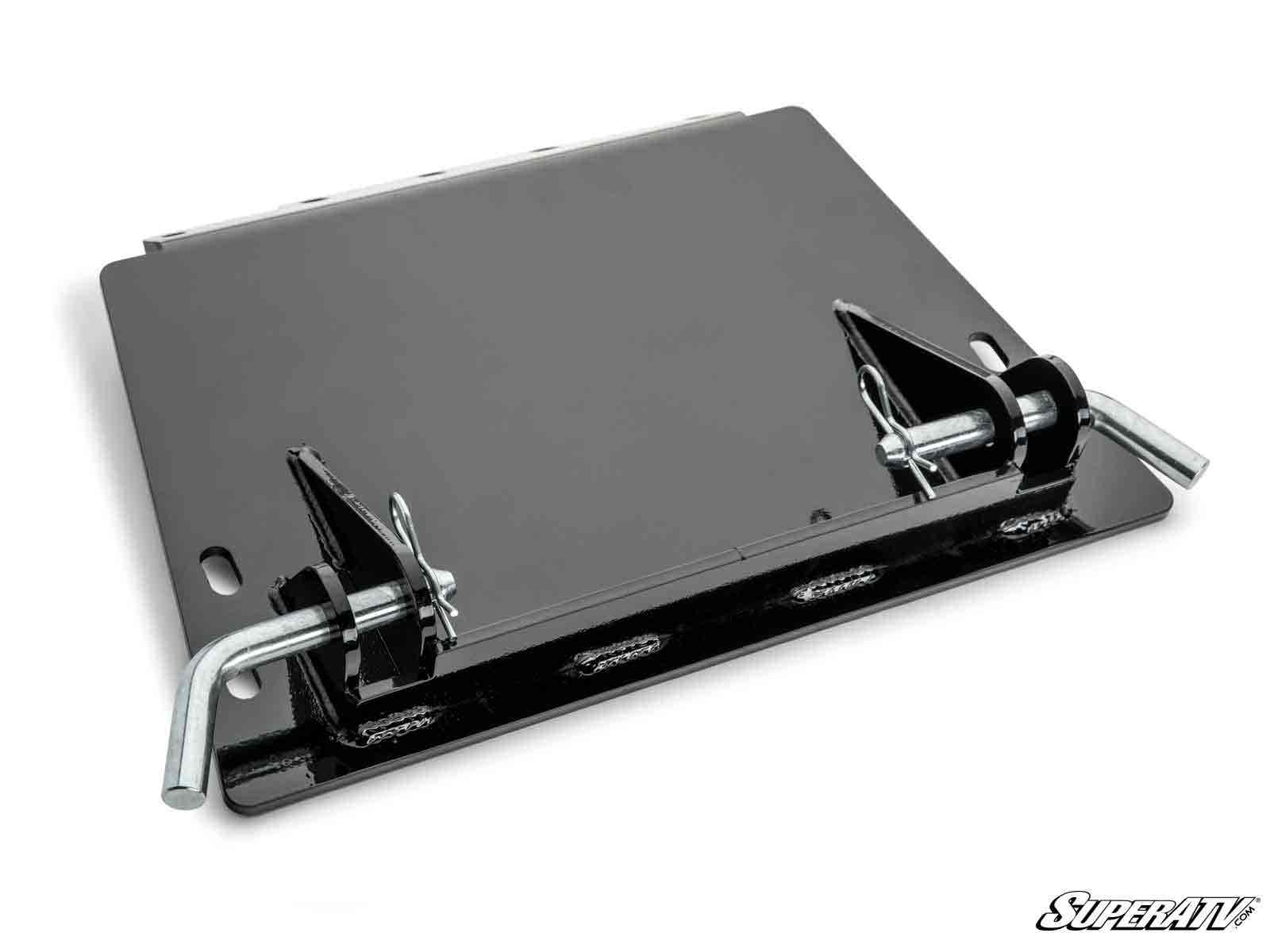

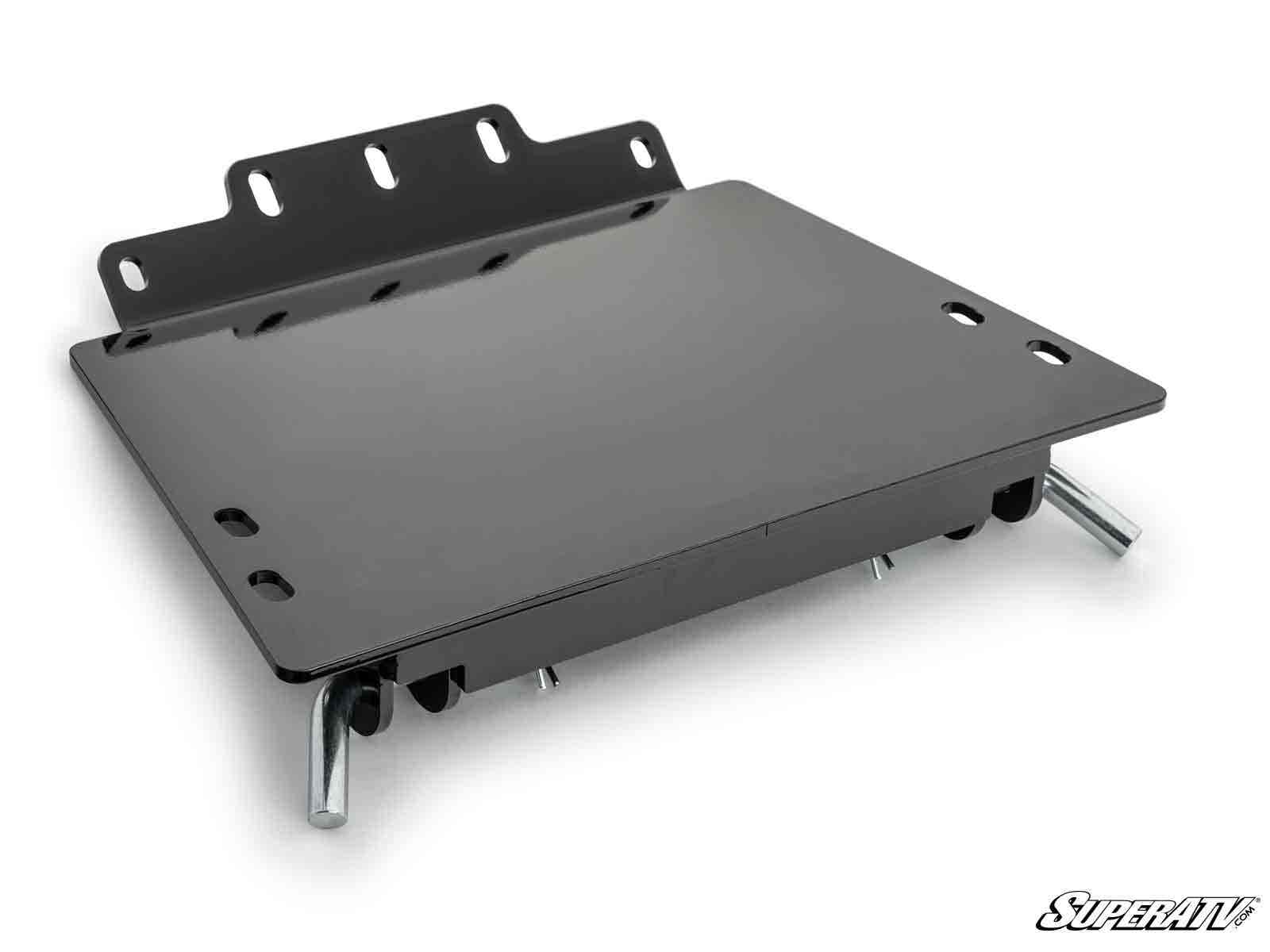

The mounting plate bolts onto your
machine using included hardware and no required drilling. The plate stays out
of the way so you can keep it on all winter long. It uses a quick connect to
allow you to mount your blade in minutes whenever you need it and remove it
easily to keep it stored the rest of the time.
Upgrade to
Our Deluxe Accessory Kit
Add our deluxe accessory kit to your
winch for more convenience and functionality. It includes side shields, plow
markers, a deflector, and a plow angle actuator. Our 3/16” steel side shields
help keep your plowing line clean. The 23” plow markers make the edges of your
plow visible. The 1/8” LDPE deflector keeps snow from coming over the top of
the blade. The plow angle actuator controls the plow angle with a dash-mounted
switch and an 1,800 lb. actuator—stay warm in your cab and get the perfect
plowing angle.
NOTE: A winch is required to operate
this snow plow.
Kit Includes:
- 72” snow
plow blade - Quick-connect snow plow mount
- Snow plow
frame
Deluxe Accessory Kit Includes:
- (2) Snow plow side shields
- Deflector and marker kit
- Plow
angle actuator kit
FEATURE
- 10-gauge steel blade
- 4-gauge steel leading edge
- 72”
wide blade - 16.25” scoop
- Seven adjustable plowing
angles: - 0°, 10°, 20°, & 30° left or right of center
- 52° to 65° adjustable attack angle accommodates stock and lifted machines
up to 3” - Two 4-gauge vertical ribs support high-impact areas
- 10-guage horizontal support reinforces the leading edge
- Height-
adjustable skid shoes - Bolt-on quick-connect mount is easy to
install - Winch-operated frame
- Powder-coated mounting
components are weather resistant
Deluxe Accessory Kit
Features:
- Side shields use 3/16” steel plating
- Plow
markers are 23” tall - Deflector made with 1/8” LDPE
- Plow
angle actuator has a 7-7/8” stroke - Capable of 1,800 pounds of
force - Actuator turns plow blade up to 30 degrees left or right of
center - Sealed actuator uses IP67 rated solenoid and water-resistant
connectors - 3/4” chrome-plated cylinder shaft
- Easy to
install—hardware and color instructions included
Fitment
- Polaris Ranger Midsize 570 : 2014+
NOTE:
- Machines with more than 3” of lift require our Plow Pro Snow Plow
drop bracket: SPB-DB-001 - Compatible with OEM front bumper only
