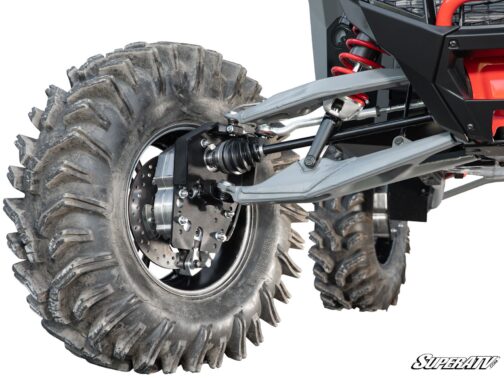

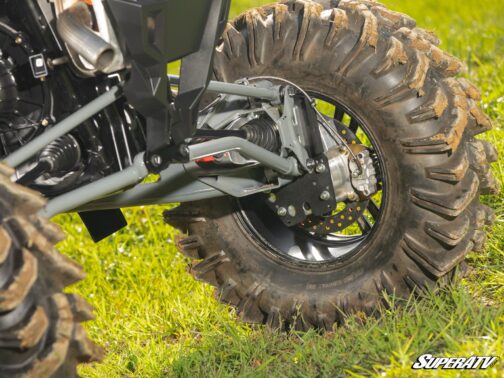

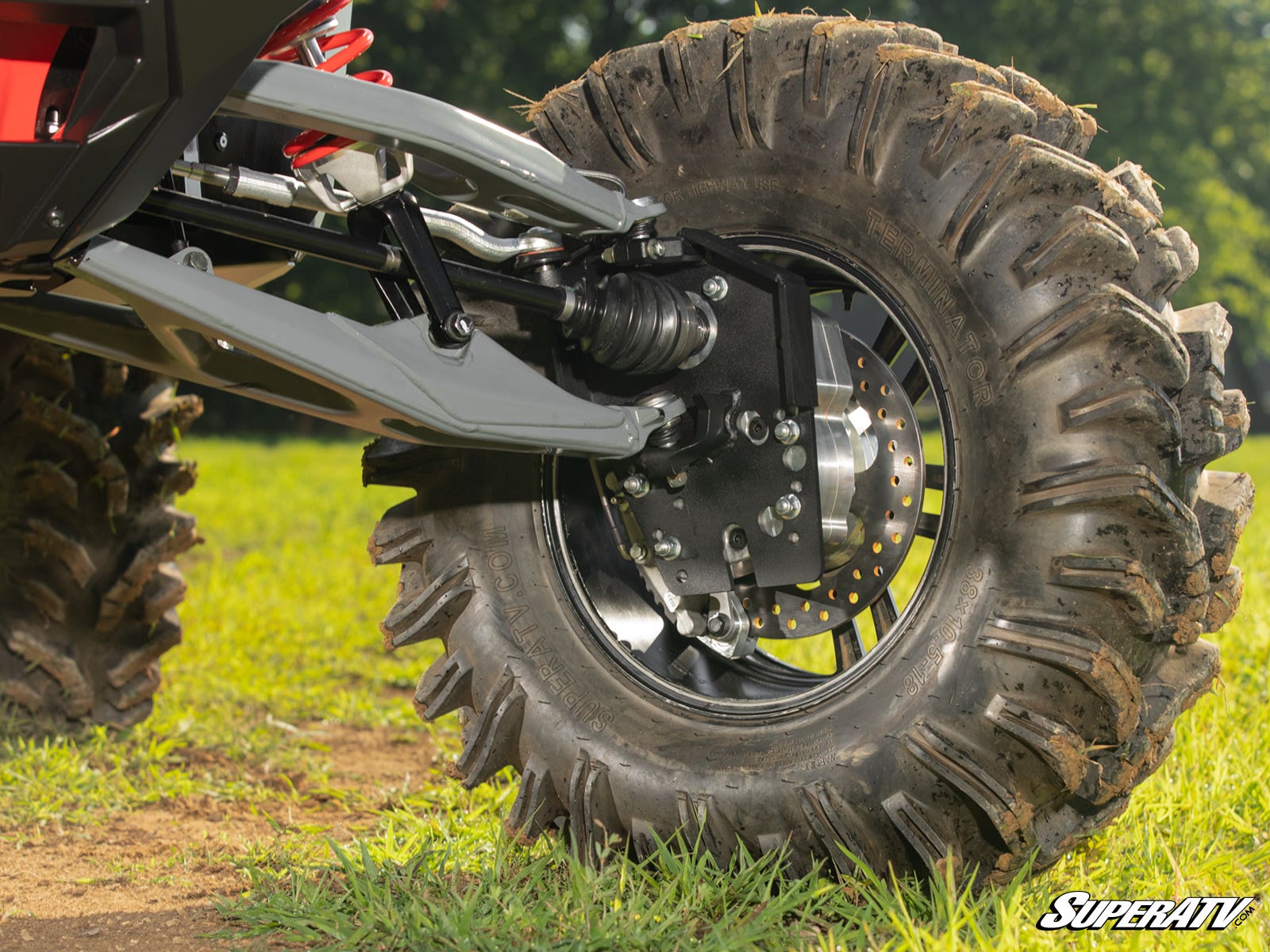

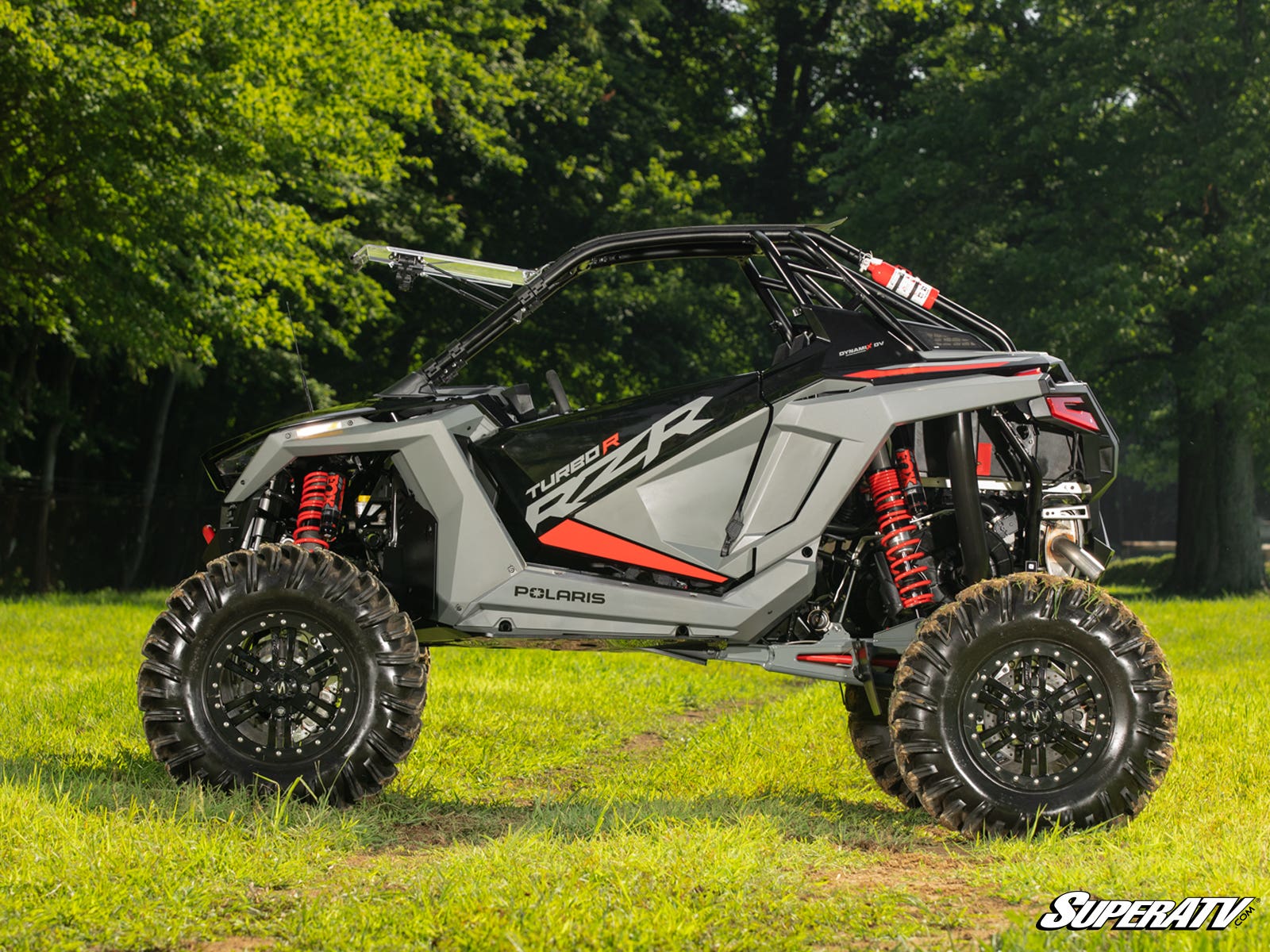

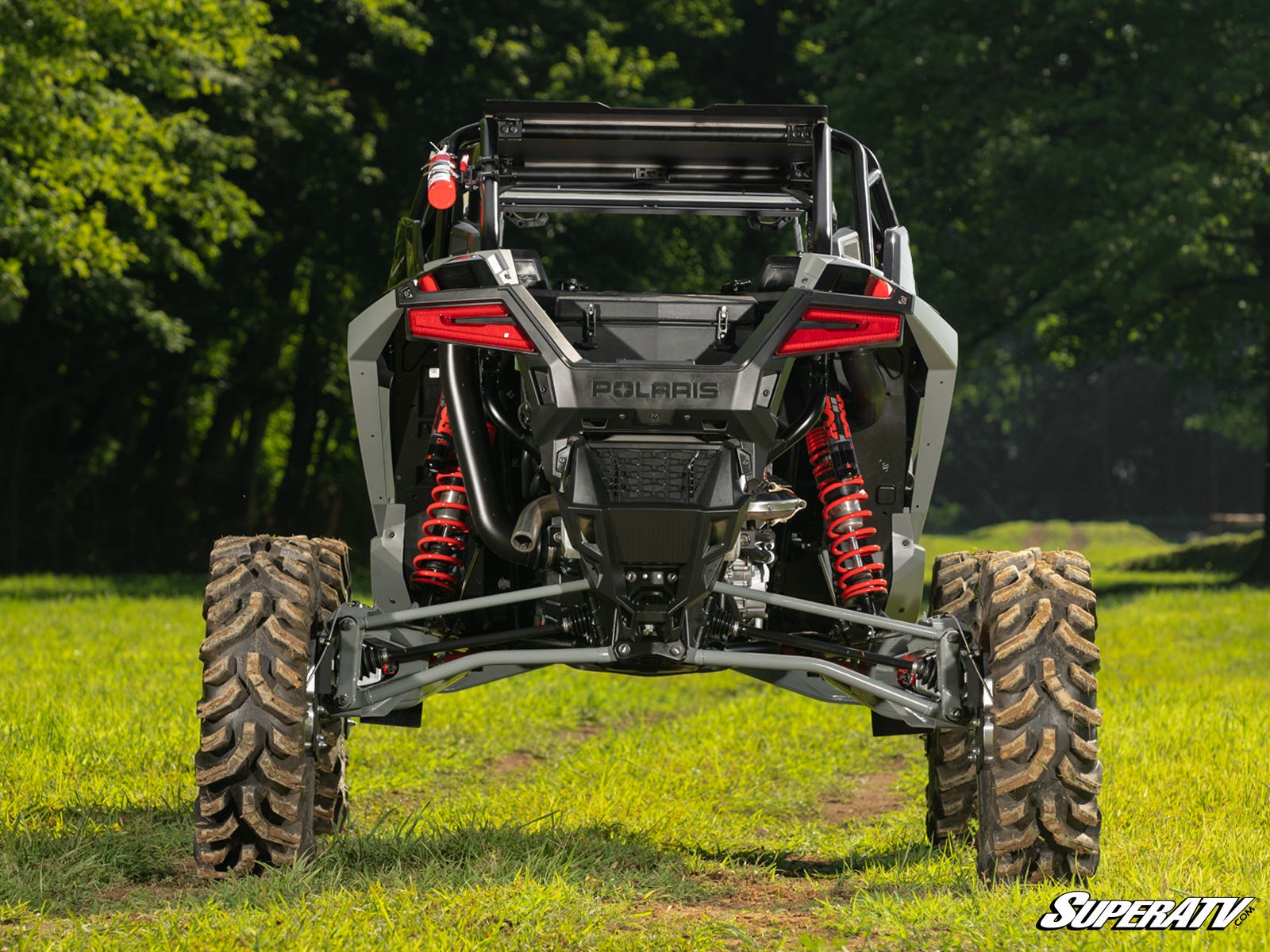

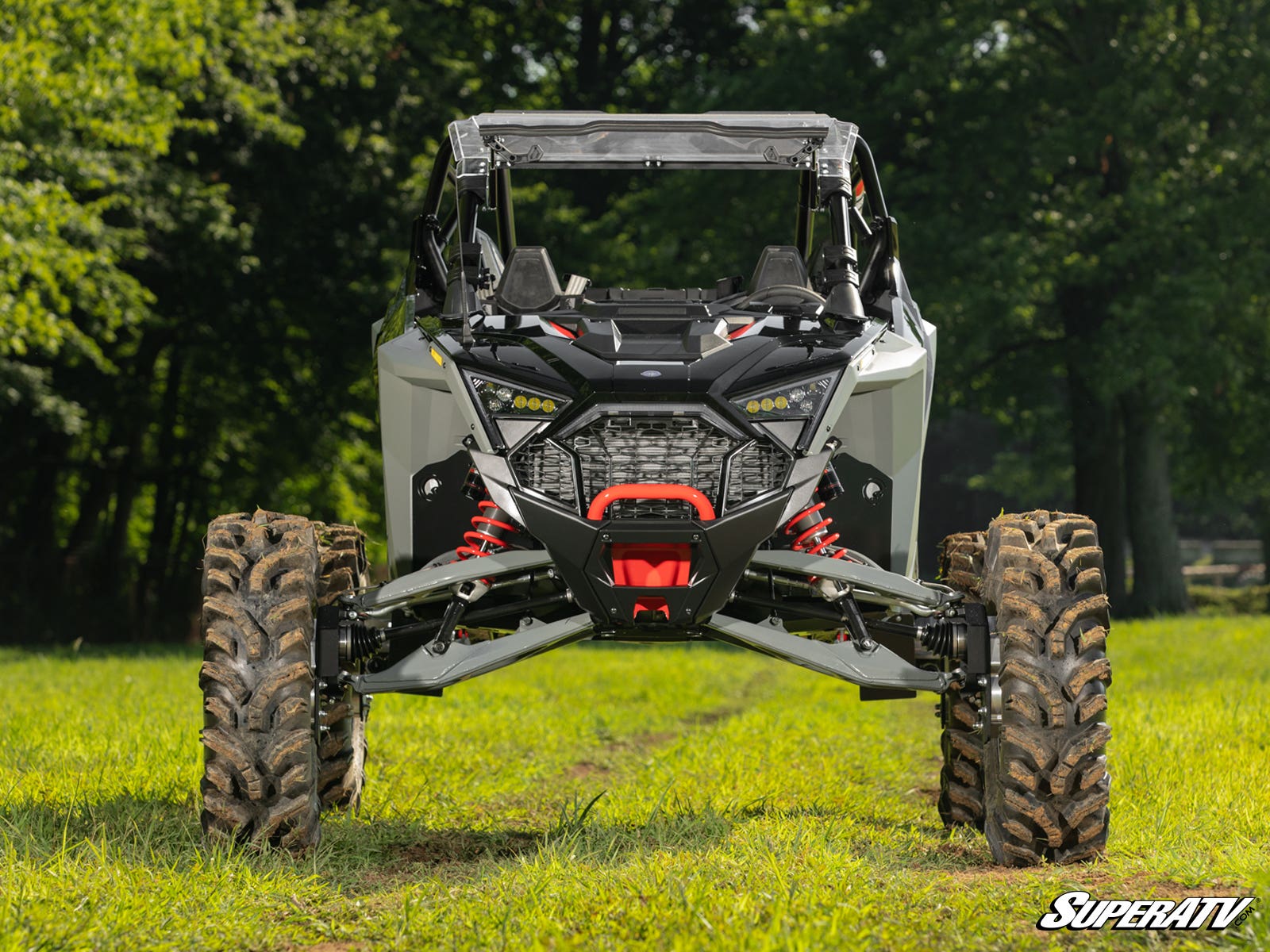

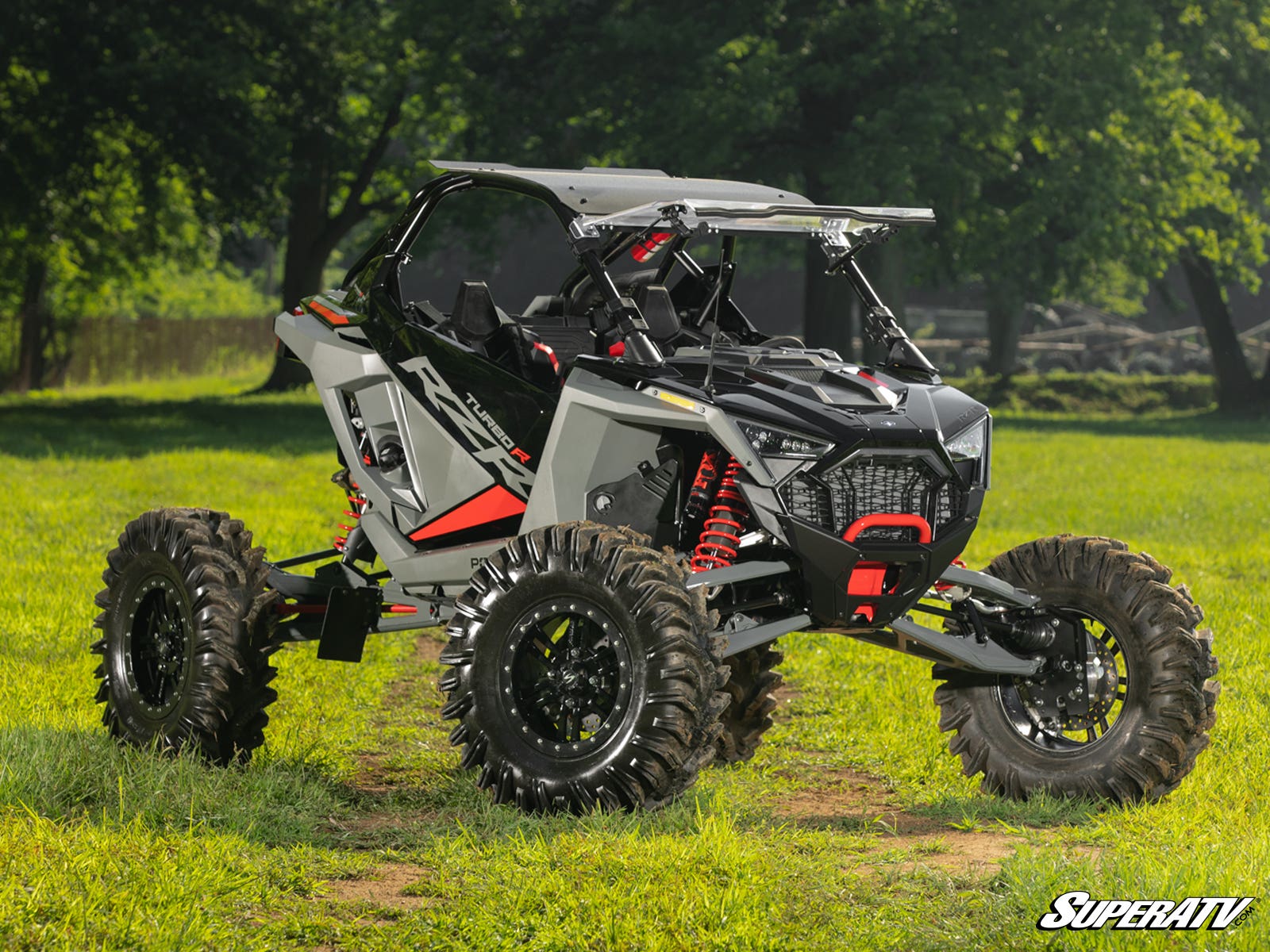

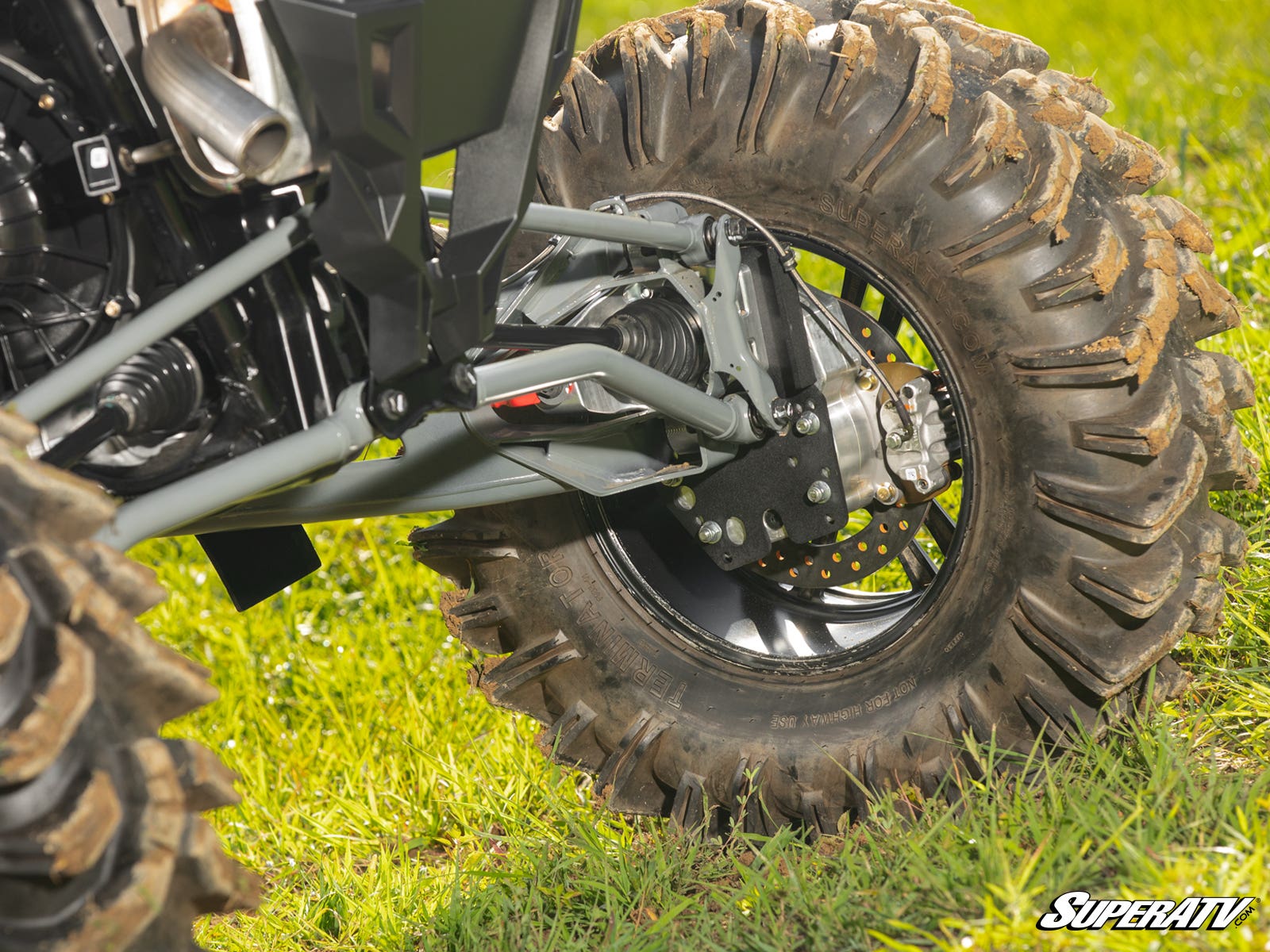

Polaris RZR Turbo R 6" Portal Gear Lift

$2,799.95$4,499.95

SKU: Item-PGH6D-1-84-601-B Categories: , , Tag:
Add to wishlist

Description

Gen 3 Portals—Best on the Market
You didn’t get your RZR
Turbo R for leisurely rides—you got it to climb the biggest dunes and thrash
through deepest bounty holes. SuperATV’s GDP 6” Portal Gear Lift gives your
Polaris RZR Turbo R a lift and a gear reduction, all in one box. Customize
your ride by choosing a 30%, 45%, or 60% gear reduction, or boost your
performance to the max with a dual idler gear portal. GDP is different from
the rest. These portals were born from blood, sweat, and countless hours of
real-world testing—all so you can enjoy your Turbo R to the fullest.

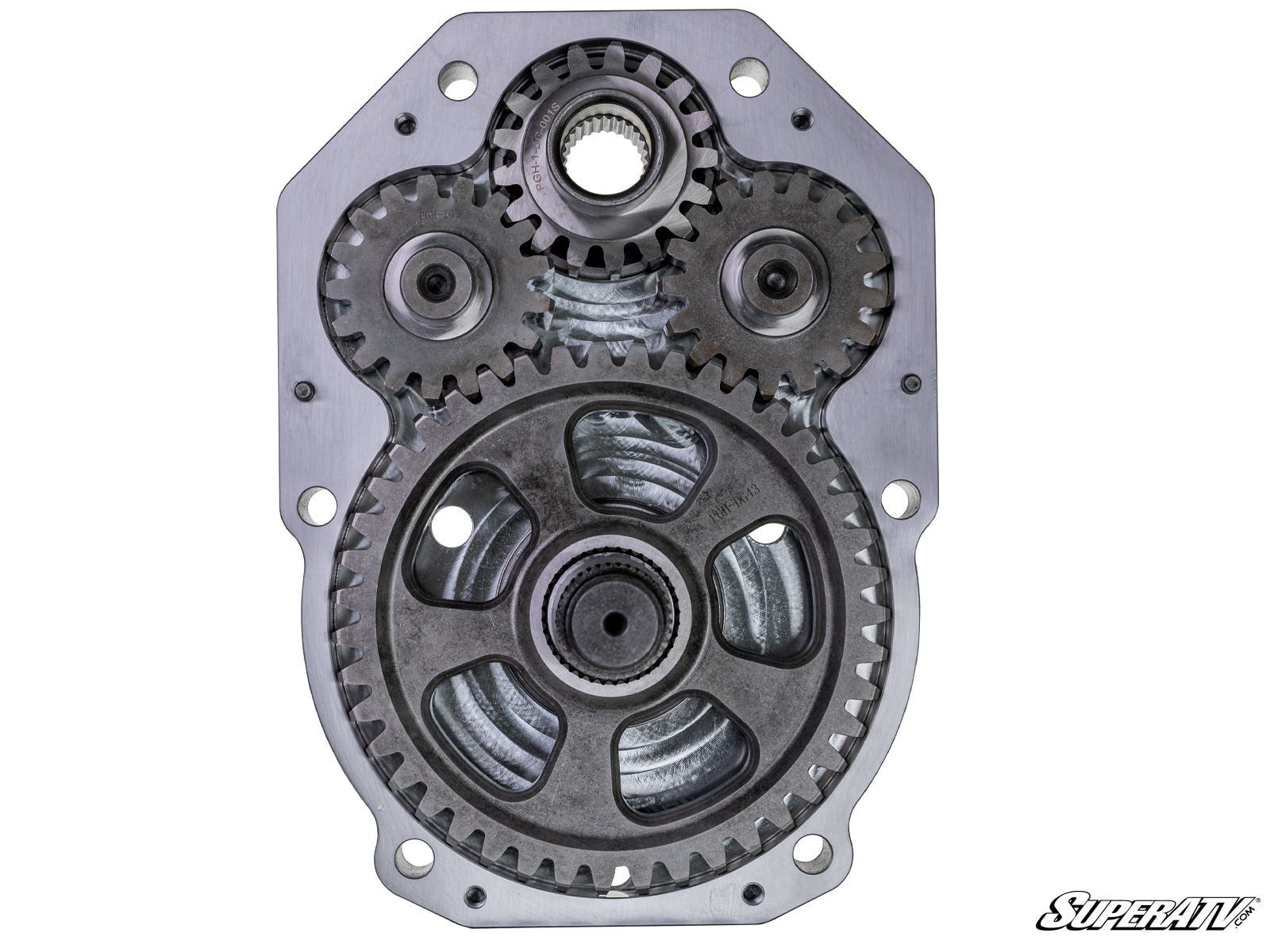

Dual Idler? What’s That?
Years of research and testing
have given these portals a reputation that speaks for itself. Thanks to our
clever engineering, we’ve figured out how to place a second idler gear in the
portal box. That means the load gets spread over twice as much surface area
for more reliable torque transfer and the strongest gear set you can get. Our
perfected combination of precision grinding and 9310 steel alloy is what sets
these dual idler portals apart from anything else on the market.

However You Ride, GDP Makes it Better
GDP Portals are
designed to tackle any challenge and accomplish any task. From dunes to trails
to mud, you’ll never look back with a GDP Portal Gear Lift. Get a smaller 30%
reduction for faster rides that still pack plenty of torque. Bigger tires and
rougher rides require a bigger gear reduction—like 45%. Build the mother of
all mudders with a 60% gear reduction. Then take your strength over the top
with dual idler gears. Portals give you your torque back so your monster build
can still rip harder than the rest.

Don’t Strain Your
Drivetrain

Portals place the gear reduction in the hub, meaning
less stress is put on your drivetrain. Your machine’s most vital parts won’t
have to work overtime to make up for the extra 6” of lift. Your axles, prop
shaft, differential, and transmission will thank you, and they’ll last longer,
too.

Cast or Billet Housings for Ultimate Strength

GDP is the strongest and most trusted portal gear system in existence.
Our cast and billet aluminum housings are the thickest and strongest you can
get, and they’re backed by unmatched real-world experience, so you can be
confident that you’re getting a kickass product. Throw in our 5/16” backing
plates made from an advanced steel alloy and you’re left with downright
unstoppable Polaris RZR Turbo R portals.

  • Our housings are reinforced
    for gear retention and optimized for oil flow
  • Advanced steel alloy
    backing plates are stronger than chromoly
  • Enhance with Portal
    Blood—gear oil formulated for GDP Portals
  • There are no gimmicks and
    no vents because vents do more harm than good—we know because we tested
    them

Advanced Gaskets, Seals, and Bearings

Our portals use:

  • Advanced gaskets and O-rings with excellent oil
    resistance and low deterioration rates
  • A sealed input gear and
    double-lipped output seal
  • 100% sealing coverage throughout so you can
    forget about oil leaks
  • Double-angular contact output bearings to
    prevent premature wear
  • Roller idler and drive bearings to maintain
    perfect gear meshing

Top-Rated Customer
Service

Still need a little help getting exactly what you need?
We’ve got a dedicated team just for portal support. Give us a call so we can
get the perfect set of portals in your hands today.

6”
Portal Gear Lift Includes:

  • (4) Assembled portal hub boxes
    complete with 9310 gears, seals, output shaft, gaskets, and thrust
    bearings
  • (4) Universal hubs and precision-ground stainless steel
    slotted rotors with lugs
  • 4) Specialized steel alloy backing
    plates
  • (4) Steel caliper mounting plates
  • (4) Caliper adapter
    plates
  • (2) Rear hub adapters
  • (2) Steel steering arms
  • Extended brake lines
  • All required hardware, including recessed
    castle nut socket

FEATURE

  • Available with billet or cast aluminum housings
  • Dual idler
    gear configuration maximizes strength
  • Cool, quiet, precision-ground
    gears made from 9310 alloy billet steel
  • 1.5 in. diameter 4340
    hardened steel drive shaft
  • Housings use gaskets or O-rings that don’t
    let anything through
  • Universal hub fits all major bolt patterns
  • Gear reduction reduces stress on your drivetrain
  • Dual idler gear
    configuration adds a 1” offset
  • Lighter than the competition

Wheel Requirements:

  • 18” or larger wheel
    required
  • 20” and larger wheels cannot exceed 5” backspacingAvailable
    with billet or cast aluminum housings

Max Tire Size Recommendations for 6”
Portal Gear Lift
Tire Size Required Suspension
Setup with 6″ Portals
42″ Stock
If you need help figuring out which gear reduction is right for
you, check out our portal gear reduction calculator .
Max tire sizes are measured at full compression and full turn. The
given tires sizes are the largest we fit without rubbing. With minor trimming
or a small amount of rub, larger tire sizes can be used.

Fitment

  • Polaris RZR Turbo R : 2022+
  • Polaris RZR Turbo R 4 :
    2022+

Additional information

Portal Housing Material

Billet, Cast

Portal Gear Reduction

30%, 45%, 60%

Select Idler Option

Dual, Single
