Description
**Why We Make It**
Forget Visco-Lok! Get true on-demand four-wheel drive for your Can-Am Maverick
X3 with SuperATV’s actuating Pin Locker Front Differential. We upgrade your
old Visco-Lok with bulletproof components that give it on-demand differential
locking with the flip of a switch. Our Pin Locker Differential comes complete
with everything you need to replace your OEM internals and get rolling.
Switch to a GDP Pin Locker Differential and experience Gear Driven Performance
on your machine!
**The SuperATV Difference**

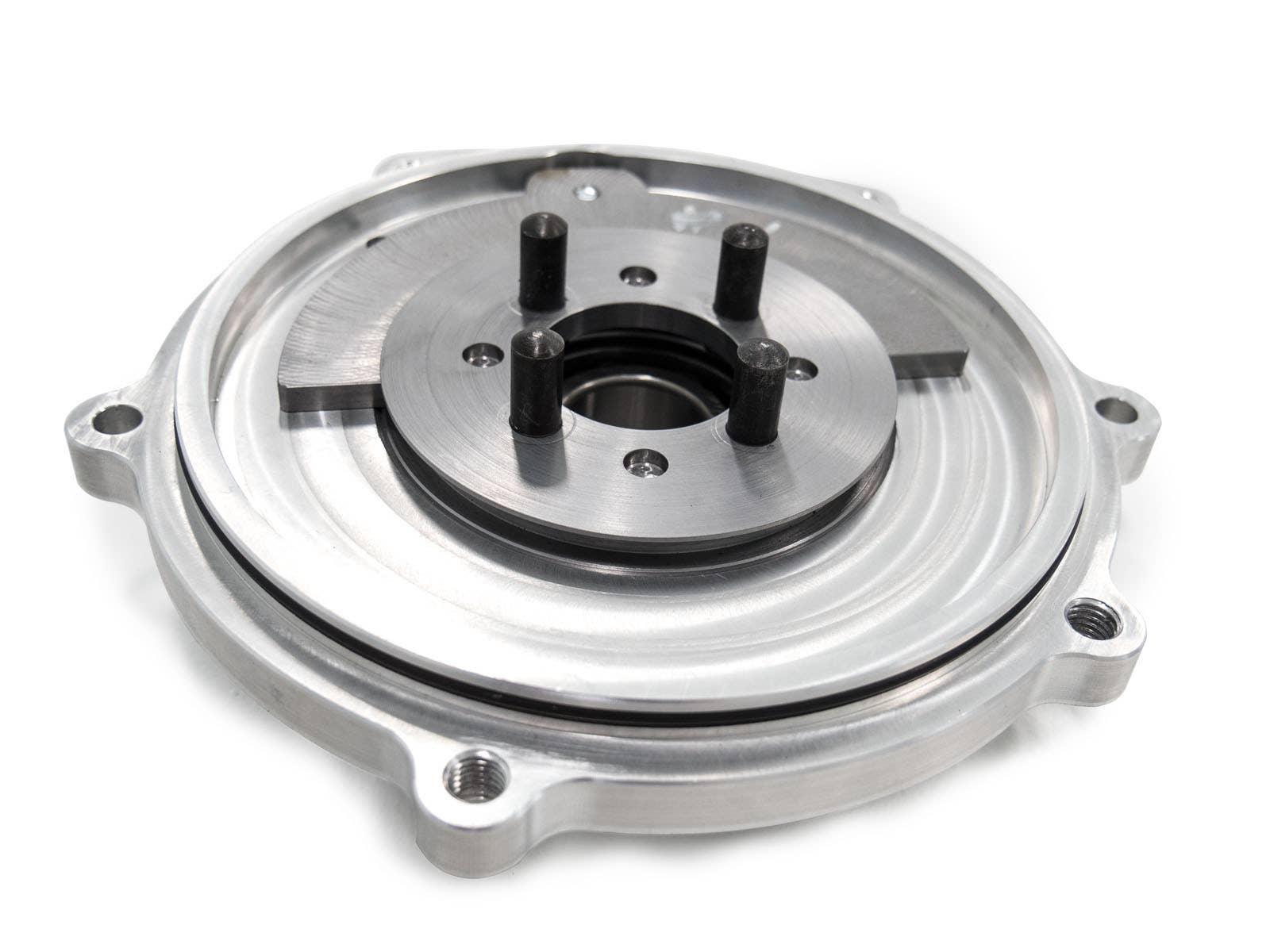

Our pin locker differential uses electronically actuated pins to lock your
hubs. It drops right into your existing differential to make installation a
breeze. Our cast or billet aluminum lid makes this upgrade bulletproof, and
you can count on SuperATV’s Pin Locker Differential to go wherever your
Maverick X3 takes you.
**Visco-Lok vs SuperATV’s Pin Locker Differential**
Can-Am’s stock Visco-Lok differential is not a true on-demand differential.
When push comes to shove, your wheels need to spin at least one full rotation
before the clutch pack will engage and lock the diff with Visco-Lok. By then,
you’ve already lost your momentum and the diff can slip.
With SuperATV’s Pin Locker Front Differential, you get consistent, locked,
four-wheel drive whenever you need it at the flip of a switch. No more
guessing, hoping, and squirming your way over that hill.

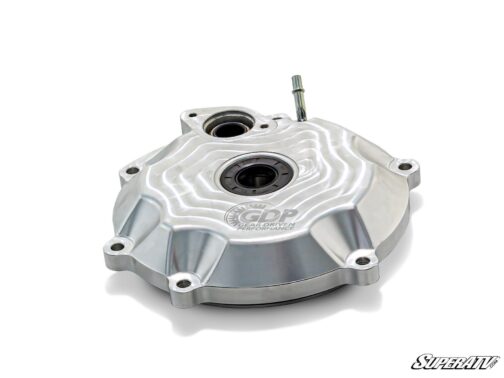

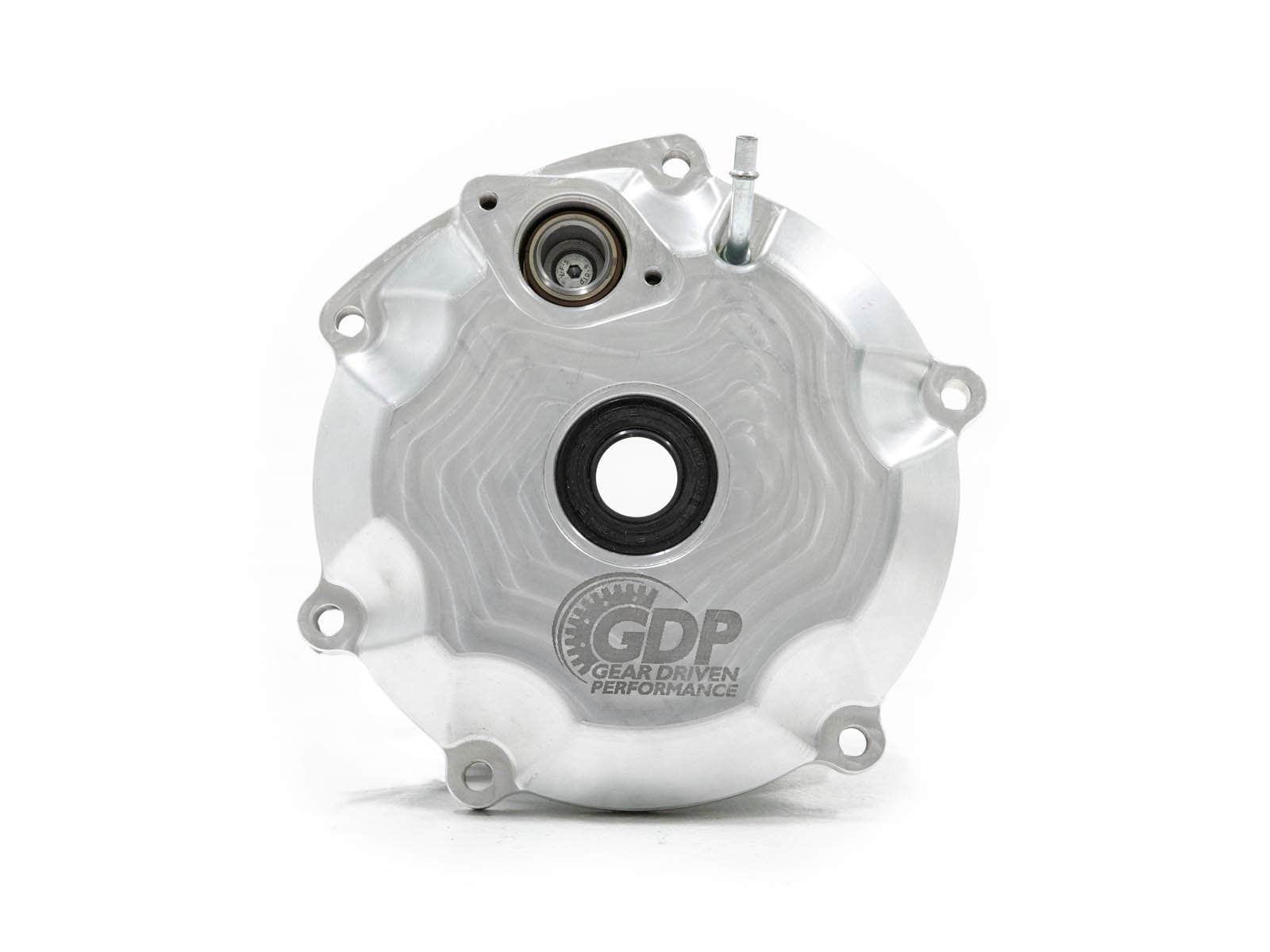

**Cast or Billet Aluminum Cap**
The pin locker housing cap is available with cast A380 aluminum alloy or
billet 6061 aluminum alloy. Our billet caps are CNC machined right here in
Madison, Indiana and give you increased strength and consistency over cast.
FEATURE
* Instant, on-demand 4WD diff locker

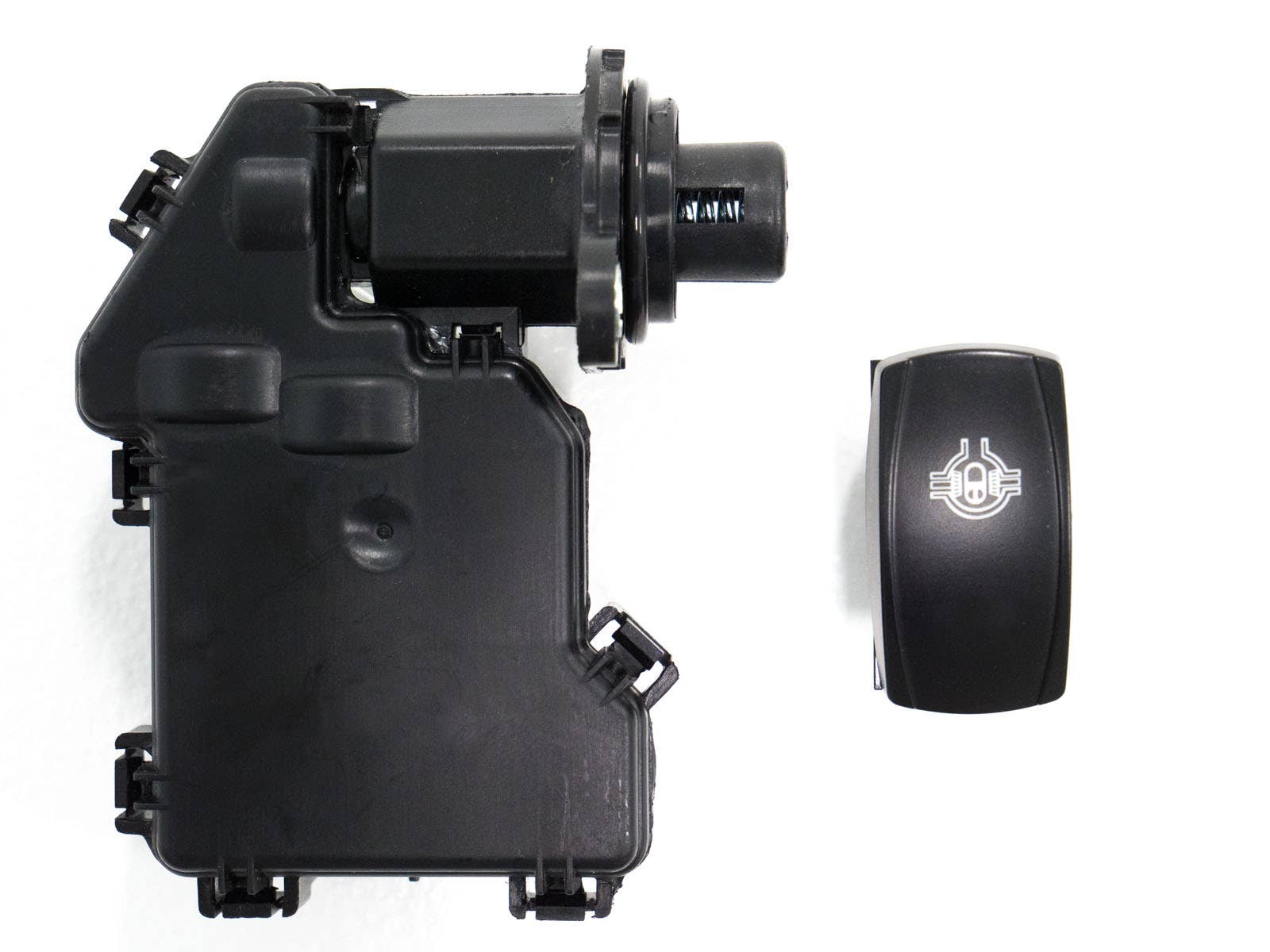

* Electronically actuated/ toggle switch controlled

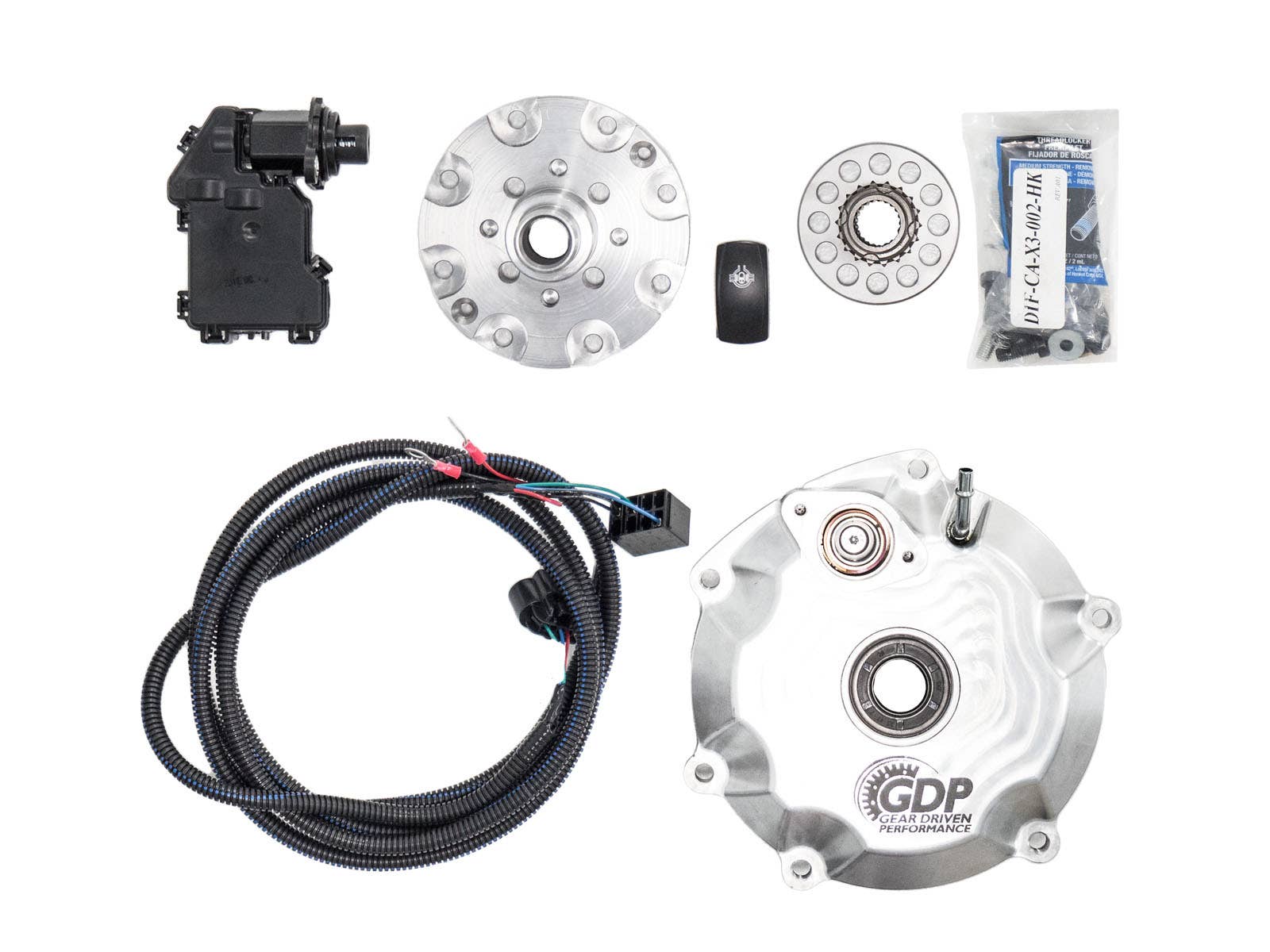

* Comes complete with wiring harness and all hardware
* Utilizes stock diff half for easy installation
* Available with cast or billet aluminum caps
* Made in the USA
Fitment
* Can-Am Maverick X3 X RS Turbo R : 2017-2018
* Can-Am Maverick X3 MAX X RS Turbo R : 2017-2018
The following X3 models will require SuperATV a-arms or relocation of the
upper A-Arm cross bar
* Can-Am Maverick X3 900 : 2018
* Can-Am Maverick X3 Turbo : 2017+
* Can-Am Maverick X3 Turbo R : 2017+
* Can-Am Maverick X3 MAX Turbo : 2017+
* Can-Am Maverick X3 MAX Turbo R : 2017+
* Can-Am Maverick X3 X DS Turbo R : 2017-2018
* Can-Am Maverick X3 MAX X DS Turbo : 2017-2018
**NOTE:** Not compatible with machines originally equipped with Smart Lock
Differential
Additional information
| Housing Type | Billet, Cast |
|---|
